HDBASE-T EDUCATION KIT WITH AUDIO AMPLIFIER AND MIC/LINE INPUT

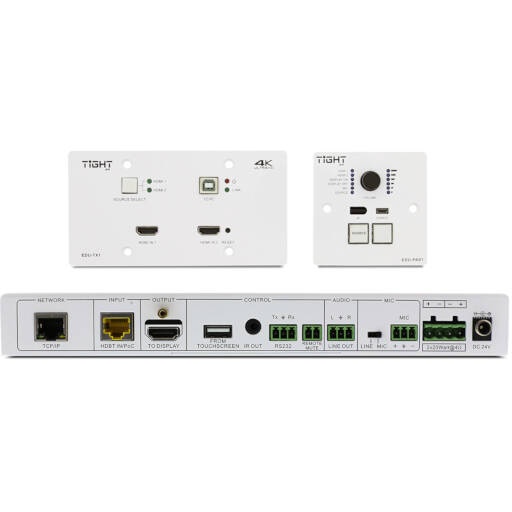

The EDU-H201AUC-KIT is a multi-function AV system designed to provide HDMI video switching, system control, video extension and analog audio amplification, all in one convenient kit for classrooms and meeting spaces. The system consists of an HDBaseT Transmitter wall plate with two HDMI inputs, a receiver with built in audio amplification and a simple wall plate control panel. 4K video, as well as audio is transported over a single solid core Cat cable between the wall plate transmitter and the receiver. The wall plate control panel provides the customer with an easy to use control interface without use of programming. All power needed for the system is provided by the receiver. Additionally, the receiver features a built-in web GUI for control. The WEB GUI also supports user and administrator privileges. A user login only provides the control page that can be reached from any device with a web browser.
Features
- Two HDMI inputs can be switched freely.
- HDMI video resolution is up to 4K@60Hz 4:2:0.
- Extends 4K@60Hz 4:2:0 signal up to 40m (131ft) and 1080p@60Hz signal up to 70m (230ft) via a single CATx cable.
- USB for interactive whiteboard connection.
- Supports HDCP 2.2.
- Supports MIC input.
- 2x20Watt@4Ohm amplifier output.
- Customizable control panel, support IR learning.
- Copy and load IR and RS232 control settings.
- Supports GUI control.
- Supports UPNP.
- Micro USB for firmware upgrade.
In the Box

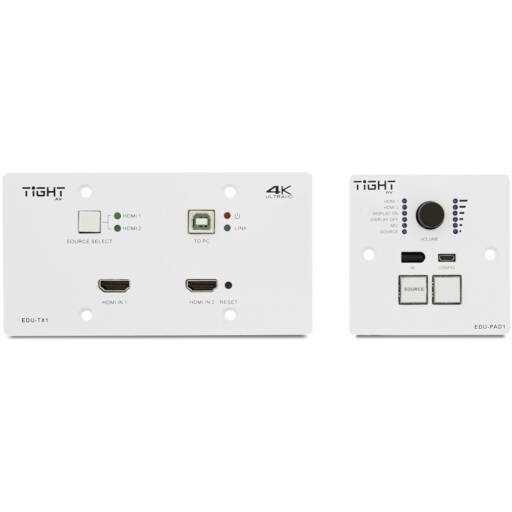

Transmitter:
- 1x EDU-TX1 Scaler Wall Plate HDBaseT Transmitter
Receiver:
- 1x EDU-RX1 HDBaseT Receiver
- 2x Mounting Ears with 4 Screws
- 4x Plastic Cushions
- 1x 4-pin Terminal Block
- 3x 3-pin Terminal Blocks
- 1x 2-pin Terminal Block
- 1x IR Emitter
- 1x USB-A to USB-B Cable
- 1x Power Adapter (DC 24V 2.71A)
:Control Panel
- 1x EDU-PAD1 Control Panel
1x User ManualEDU-TX1 Transmitter
Video
- Video Input: (1) HDMI IN 1, (1) HDMI IN 2
- Video Input Connector: (2) 19-pin type-A female HDMI
- Video Output: (1) PoC IN/HDBT OUT, (1) POWER/RS232
- Video Output Connector: (2) RJ45
Control
- Control Port: (1) TO PC, (1) FIRMWARE
- Control Connector: (1) Type-B USB, (1) Micro USB
General
- Video Resolution: Up to 4K@60Hz 4:2:0
- Transmission Mode: HDBaseT
- Transmission Distance:
- CAT5e/6: 4K@60Hz 4:2:0 ≤ 35 meters (115 feet), 1080p@60Hz ≤ 60 meters (197 feet) - CAT6a/7: 4K@60Hz 4:2:0 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet)
- Bandwidth: 10.2Gbps
- HDMI Version: 1.4
- HDCP Version: 2.2
- Operation Temperature: -5~ +55℃
- Storage Temperature: -25 ~ +70℃
- Relative Humidity: 10%-90%
- Dimension (W*H*D): 105mm x 89mm x 44mm
- Net Weight: 242g

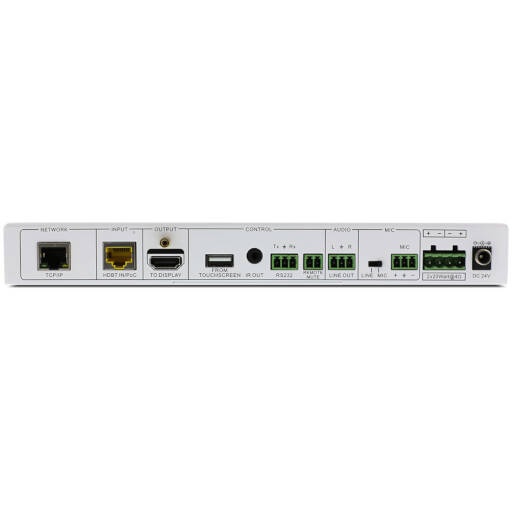

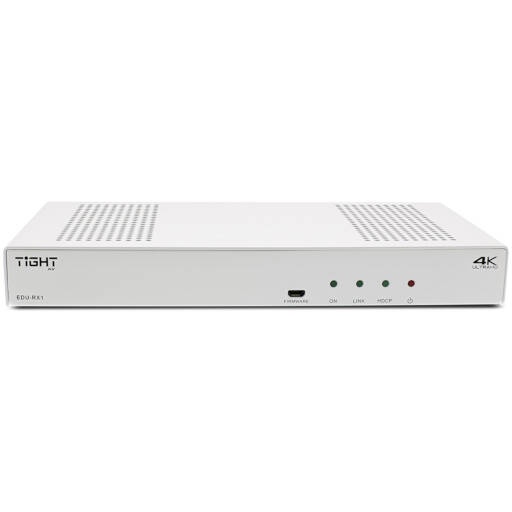

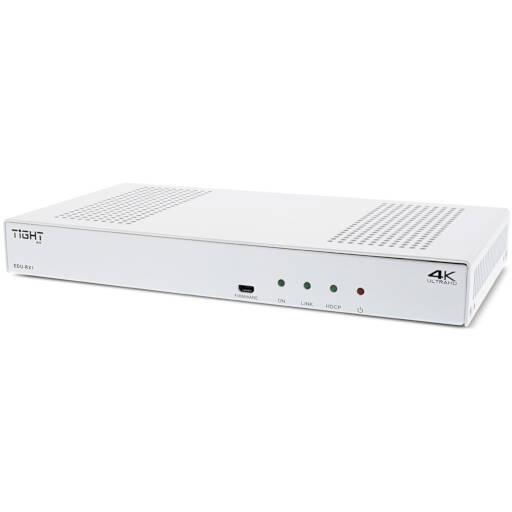

EDU-RX1 Receiver
Video
- Video Input: (1) HDBT IN/PoC
- Video Input Connector: (1) RJ45
- Video Output: (1) TO DISPLAY
- Video Output Connector: (1) 19-pin type-A female HDMI
Audio
- Audio Input: (1) MIC
- Audio Input Connector: (1) 3-pin terminal block
- Audio Output: (1) 2x20Watt@4Ω, (1) LINE OUT
- Audio Output Connector: (1) 4-pin terminal block, (1) 3-pin terminal block
- Audio Format:
HDMI embedded audio: PCM/Dolby/DTS
MIC input audio: PCM
Analog output audio: PCM
Control
- Control: (1) TCP/IP, (1) FROM TOUCHSCREEN, (1) IR OUT, (1) RS232, (1) REMOTE MUTE
- Control Connector: (1) RJ45, (1) Type-A USB, (1) 3.5mm mini jack, (1) 3-pin terminal block, (1) 2-pin terminal block
General
- Video Resolution: Up to 4K@60Hz 4:2:0
- Transmission Mode: HDBaseT
- Transmission Distance:
- CAT5e/6: 4K@60Hz 4:2:0 ≤ 35 meters (115 feet), 1080p@60Hz ≤ 60 meters (197 feet)
- CAT6a/7: 4K@60Hz 4:2:0 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet)
- Bandwidth: 10.2Gbps
- HDMI Version: 1.4
- Power Supply: Input:100V~240V AC; Output: 24V DC 2.71A
- Power Consumption; 55W (Max)
- Operation Temperature: -5~ +55℃
- Storage Temperature: -25 ~ +70℃
- Relative Humidity: 10%-90%
- Dimension (W*H*D): 250mm x 31mm x 130mm
- Net Weight: 682g
EDU-PAD1 Control Panel
Port
- Program Port: (1) CONFIG, (1) POWER/RS232
- Output Port: (1) Type-A USB, (1) RJ45
- Other: (1) Volume Knob, (2) Buttons (SOURCE, DISPLAY ON/OFF), (1) Built-in IR sensor
- Operation Temperature: -5~ +55℃
- Storage Temperature: -25 ~ +70℃
- Relative Humidity: 10%-90%
- Dimension (W*H*D): 80mm x 80mm x 37mm
- Net Weight: 124g
