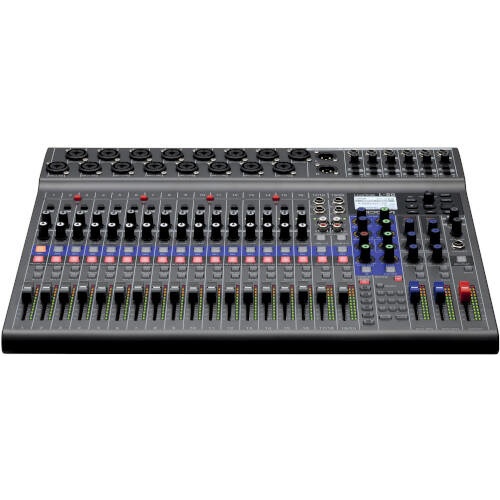

The LiveTrak™ L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements.
20 INPUTS FOR BIGGER SOUND
The LiveTrak L-20 is designed to mix bigger. It features 20 inputs
(16 mono mic/line inputs and two stereo inputs), all with independent
3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.22 TRACKS OF RECORDING
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.CREATE SIX CUSTOM MONITOR MIXES
With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.AND ONE FOR THE HOUSE
The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians’ satisfaction.BIG BEAUTIFUL INTERFACE
Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well.WIRELESS MIXING
The LiveTrak L-20 offers wireless control* via a free iOS mobile app featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.In the Box:
LiveTrak L-20
AD-19 AC Adapter
USB 2.0 Cable
Quick GuideNUMBER OF INPUT AND OUTPUT CHANNELS
INPUTS Mono (MIC/LINE): 16 Stereo (LINE): 2
OUTPUT MASTER OUT: 1 MONITOR OUT: 6 PHONES : 1
Inputs
MONO (MIC/LINE) Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain : PAD OFF: +16 – +60dB| PAD ON: − 10 – +34 dB |Hi-Z ON: +6 – +50 dB Input impedance: XLR: 3 k Ω | TRS: 10 k Ω /1 M Ω (when Hi-Z ON) Maximum input level: PAD OFF: 0 dBu (at 0 dBFS) | PAD ON: +26 dBu (at 0 dBFS) |Phantom power +48 V
STEREO (LINE) Type: TS phone/RCA pin (unbalanced) jacks | Maximum input level : +10 dBu
OUTPUTS
MASTER OUT Type: XLR jacks (balanced) | Maximum output level :+14.5 dBu | Output impedance: 100 Ω
MONITOR OUT A–F (WITH BALANCED OUTPUT) CONNECTED TO MONITOR SPEAKERS Type: TRS phone jacks (balanced) | Maximum output level: +14.5 dBu | Output impedance: 100 Ω
MONITOR OUT A– F (WITH UNBALANCED OUTPUT) CONNECTED TO HEADPHONES Type: Standard stereo phone jacks |Maximum output level: 42 mW + 42 mW at 60 Ω |Output impedance: 100 Ω
PHONES Type: Standard stereo phone jacks|Maximum output level: 42 mW + 42 mW at 60 Ω |Output impedance: 100 Ω
BUSES
MASTER 1
MONITOR 6
SEND EFX 2
CHANNEL STRIP
LOW CUT 40–600 Hz, 12dB/OCT
EQ HIGH: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking | LOW: 100 Hz, ± 15 dB, shelving
LEVEL METERS
LEVEL SEGMENTS 12
SEND EFFECTS
EFFECTS | 20 TYPES EFX 1 Hall 1, Hall 2, Room 1, Plate, Church , DrumAmb , GateRev, Vocal 1 , Vocal 2 , Vocal 3
EFX 2 Hall 3, Room 2, Spring Delay, Analog P-P Dly , Vocal 4, Chorus 1, Chorus 2
RECORDER
MAXIMUM SIMULTANEOUS RECORDING TRACKS 22 at 44.1/48/96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS 20
RECORDING FORMAT WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
RECORDING MEDIA 4GB–32GB SDHC cards (Class 10 or higher) , 64GB–512GB SDXC cards (Class 10 or higher)
AUDIO INTERFACE
44.1/48 KHZ Recording: 22 channels | Playback: 4 channels
BIT DEPTH 24-bit
INTERFACE USB 2.0
CARD READER
CLASS Mass storage : USB 2.0 High Speed
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
WINDOWS OS： Windows® 8.1 / 10 (32bit/64bit) | CPU: Intel® Core i3 or faster | USB: USB 3.0/USB 2.0
MAC OS： macOS® 10.14 / 10.15 / 11 | CPU: Intel® Core i3 or faster | USB: USB 3.0/USB 2.0
IPHONE/IPAD OS： iOS 9 / 10 / 11+ * Apple Lightning-to-USB Camera Adapter required.
USB HOST
CLASS USB 2.0 High Speed
Additional Specs
SAMPLING FREQUENCY 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz | 96 kHz: −3.0 dB, 20 Hz – 40 kHz
EQUIVALENT INPUT NOISE Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input
DISPLAY LCD with backlight (128×64 resolution)
POWER AD-19 AC adapter (DC12V 2A)
POWER CONSUMPTION 24 W maximum
EXTERNAL DIMENSIONS 445 mm (W) × 388.4 mm (D) × 82.6 mm (H)
WEIGHT (MAIN UNIT ONLY) 3.71 kg
