The EXT-H102UETH-HDBT from TiGHT AV is a high−performance HDBaseT 3.0 extender set for un-compressed 4K60Hz 4:4:4 HDMI, USB 2.0, Ethernet, RS−232 and IR signals. The EXT-H102UETH-HDBT supports and can extend HDMI 2.0b, HDCP 2.3 and HDR video up to 100m over a single Category 6A solid core cable. HDBaseT 3.0 standard allows for fully un-compressed 18G HDMI signal, 1G Ethernet and improved USB2.0 bandwidth to be extended. Support for bi-directional PoC allows for easy installation by applying power to either the transmitter or the receiver. This extender set is ideal for various applications like conference rooms, education and anywhere were high-quality video, Gigabit Ethernet and/or USB2.0 extension is required. 24V PoC feature allows the transmitter and the receiver can be powered from each other and only one power adapter is needed in system.
Features
• HDBaseT 3.0 technology which supports extending HDMI 2.0 without any compression.
• Supports HDMI 2.0b, 4K@60 4:4:4, HDR10, Dolby Vision, HDCP 2.3.
• Extends up to 4K60 4:4:4 video signals up to 100 meters over a single CAT6A cable
• Supports Bi-directional IR and RS232 pass-through control.
• Flexible USB 2.0 Extension - Transmitter or receiver side can be set as Host/Device.
• Supports Gigabit full duplex Ethernet extension from either transmitter or receiver.
• Supports audio de-embedding on a balanced analog output on transmitter.
• Supports ARC (Audio Return Channel).
• Features a HDMI loop out on transmitter.
• Supports bi-directional 24V PoC.
In the Box
1 x EXT-H102UETH-HDBT Transmitter
1 x EXT-H102UETH-HDBT Receiver
1 x Power Adapter (24VDC, 1.25A)
4 x Mounting Ears with 4 x Screws
8 x Plastic Cushions
1 x 5-Pin Terminal block
2 x 3-Pin Terminal block
1 x User ManualTransmitter Receiver
Video

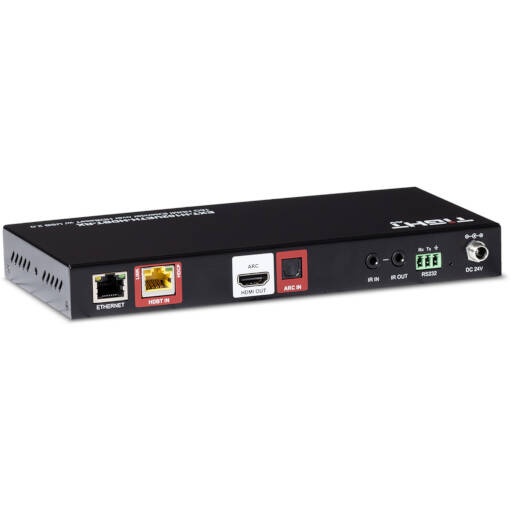

Input: (1) HDMI IN (1) HDBT IN
Input Connector: (1) Type-A female HDMI 2.0b (1) RJ45
Input Resolution: Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4

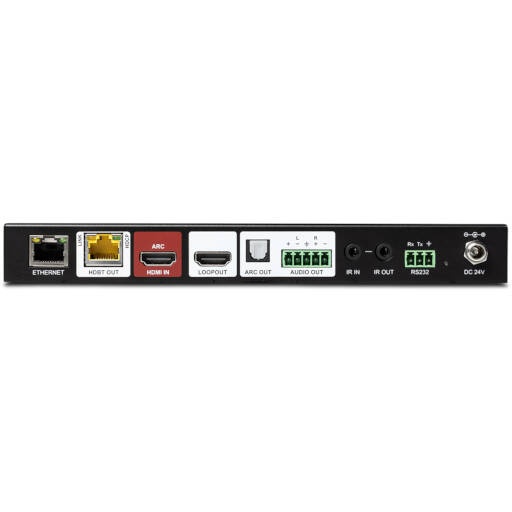

Output: (1) HDBT OUT, (1) HDMI LOOP OUT (1) HDMI
Output Connector: (1) RJ45, (1) Type-A female HDMI (1) Type-A female HDMI
Output Resolution: Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4
Audio
Input: - (1) ARC IN
Input Connector: - (1) Toslink Connector
Output: (1) ARC OUT, (1) AUDIO OUT -
Output Connector: (1) Toslink connector -
(1) 5-pin terminal block
Audio Format:
- Toslink (ARC): PCM, Dolby Digital, DTS 5.1CH
- 5-pin terminal block: PCM 2CH
Frequency Response: 20Hz ~ 20KHz, ±3dB
Max Output Level: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N: 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFS level (or max level)
SNR: > 85dB, 20Hz-20kHz bandwidth
Crosstalk Isolation: > 70dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation: 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation: ± 0.5dB, 20Hz – 20kHz
Output Load Capability: 1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Stereo Channel Separation: >70dB@1KHz
Control

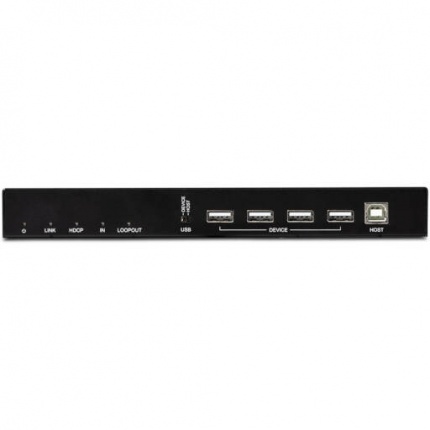

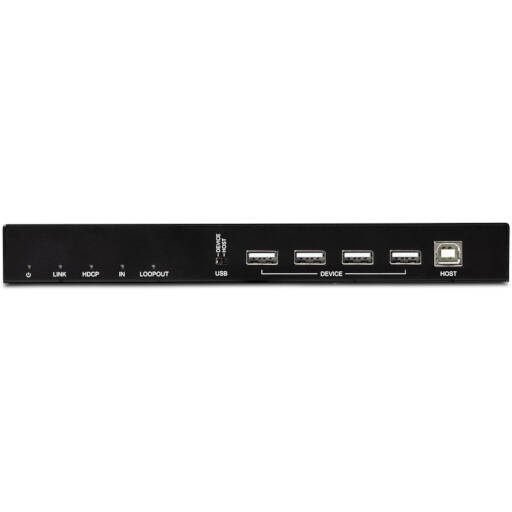

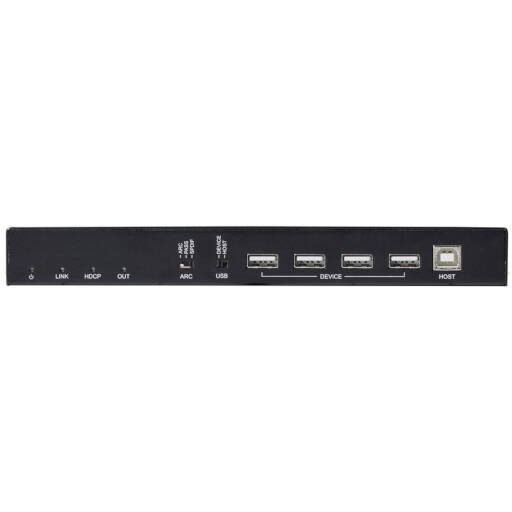

Control Part: (4) DEVICE,(1) HOST,(1) USB Switch, (4) DEVICE,(1) HOST,(1) ARC Switch,
(1) IR IN,(1) IR OUT,(1) RS232, (1) USB Switch,(1) IR IN,(1) IR OUT,
(1) ETHERNET (1) RS232, (1) ETHERNET
Control Connector: (4) Type-A USB 2.0, (4) Type-A USB 2.0,(1) Type-B USB 2.0,
(1) Type-B USB 2.0, (1) 3-pin DIP Switch,
(1) 2-pin DIP Switch,(2) 3.5mm Jacks, (1) 2-pin DIP Switch, (2) 3.5mm Jacks,
(1) 3-pin Terminal Block,(1) RJ45 (1) 3-pin Terminal Block,(1) RJ45
General
HDCP Version:
- Input: HDCP 2.3, HDCP 2.2, HDCP 1.4 compliant
- Loop out: Follows the display’s HDCP version.
- RX Output: Follows the source’s HDCP version.
CEC: Pass-through (when ARC switch is selected to PASS or SPDIF)
Bi-directional PoC: Supported
HDMI 2.0 Cable Length: 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m
Transmission Distance: 4K/1080p ≤ 100 meters (328 feet)
USB 2.0 Bandwidth over HDBaseT: Up to 272Mbps
Operation Temperature: -5 to +55℃ (+23° to +131°F)
Storage Temperature: -25 to +70℃ (-13° to +158°F)
Relative Humidity: 10% to 90%, non-condensing
Power Supply:
- Input:100V~240V AC; Output:24V DC 1.25A
Power Consumption: 17W(Max)
Dimension (W*H*D): 212mm x 25mm x 100mm
Net Weight: 570g(TX), 555g(RX)
Note: Please use high-qualified HDMI cable fully compliant with HDMI v2.0 for reliable transmission and connection.
