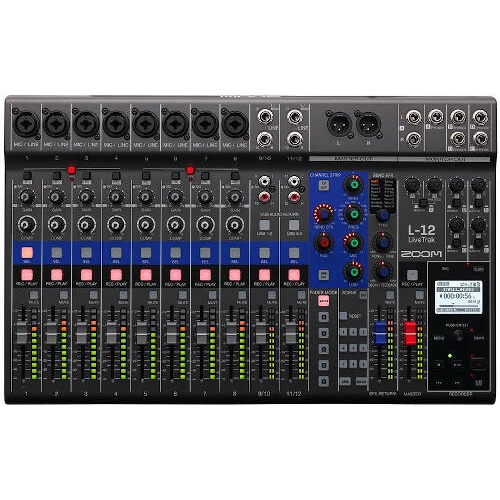

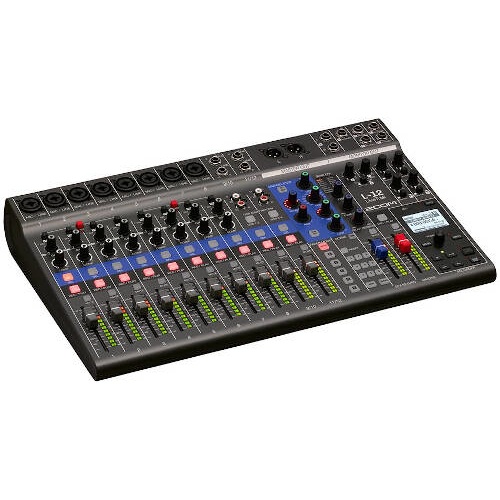

MIX, RECORD, MONITOR, PLAYBACK, AND REMIX
With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.EFFORTLESS LIVE MIXING
LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor.
With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.RECORD EVERYTHING, REMIX ANYWHERE
LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD cardwhile simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW
for further mixing and editing.FIVE CUSTOM MONITORING MIXES
Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.USB CONNECTIVITY FOR YOUR DAW
LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.Our Best Mic Preamps Yet
At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.High-Definition Sample Rates
The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.Convenient Auto Recording
Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.Versatile Operation Modes
The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.
In the Box:
Zoom LiveTrak L12
AC adapter (AD-19)
USB 2.0 cable
Quick GuideNUMBER OF INPUT AND OUTPUT CHANNELS
INPUTS: Mono (MIC/LINE): 8 Stereo (LINE): 2
OUTPUTS: MASTER OUT: 1 MONITOR OUT: 5
INPUTS
MONO (MIC/LINE): Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT))
Input gain : PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 – +50 dB
Input impedance : XLR: 3 kΩ TRS: 10 kΩ/1 MΩ (when Hi-Z ON
Maximum input level : PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at 0 dBFS)
Phantom power : +48 V
STEREO (LINE) Type TRS phone/RCA pin (unbalanced) jacks
Maximum input level +16 dBu
Outputs
MASTER OUT Type XLR jacks (balanced)
Maximum output level +14.5 dBu
Output impedance 100 Ω
MONITOR OUT - A (TRS) Type TRS phone jacks (balanced)
Maximum output level +14.5 dBu
Output impedance 100 Ω
MONITOR OUT A–E (PHONES) Type Standard stereo phone jacks
Maximum output level 42 mW + 42 mW at 60 Ω
Output impedance 100 Ω
Buses
MASTER 1
MONITOR 5
SEND EFX 1
Channel strip
LOW CUT 75 Hz, 12 dB/OCT
EQ HIGH: 10 kHz, ±15 dB, shelving MID: 100 Hz–8 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving
LEVEL METERS 12 segments
SEND EFFECTS 16 types
Recorder
MAXIMUM SIMULTANEOUS RECORDING TRACKS 14 at 44.1/48 kHz 12 at 96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS 12
RECORDING FORMAT WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
RECORDING MEDIA 16MB–2GB SD cards, 4GB–32GB SDHC cards, 64GB– 512GB SDXC cards
Audio interface
44.1/48KHZ Recording: 14 channels | Playback: 4 channels
BIT DEPTH 24-bit
INTERFACE USB 2.0
Card reader
CLASS Mass storage USB 2.0 High Speed
USB HOST
CLASS USB 2.0 High Speed
SAMPLING RATE 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS Frequency characteristics (44.1 kHz): -1.0 dB: 20 Hz – 20 kHz | Frequency characteristics (96 kHz): -3.0 dB: 20 Hz – 40 kHz
EQUIVALENT INPUT NOISE Actual measurements: 128dB EIN (IHF-A) with +60dB/150Ω input
DISPLAY LCD with backlight (128×64 resolution)
POWER SUPPLY AD-19 AC adapter (DC12V/2A)
EXTERNAL DIMENSIONS 445 mm (W)×282 mm (D)×70.5 mm (H)
WEIGHT (MAIN UNIT ONLY) 2.53 kg
