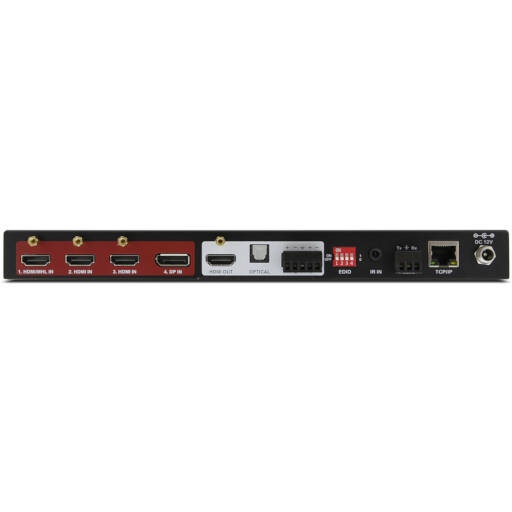

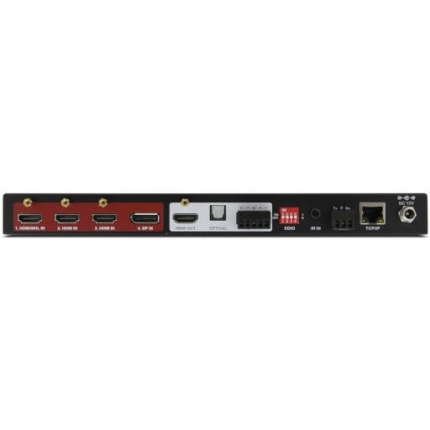

The SW-H411A allows selection of four different sources (three HDMI inputs and one DisplayPort input) and will switch the selected video to the HDMI output. The audio is simultaneously de-embedded to an optical digital audio output and a balanced analog audio output. It supports video resolutions up to 4K x 2K@60Hz 4:4:4 8bit, 1080P, and 3D. In addition, there is a smart built-in EDID setting that can be selected by the 4-pin DIP switch on the rear panel.
The SW-H411A supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to an optical digital audio output and a balanced analog audio output.

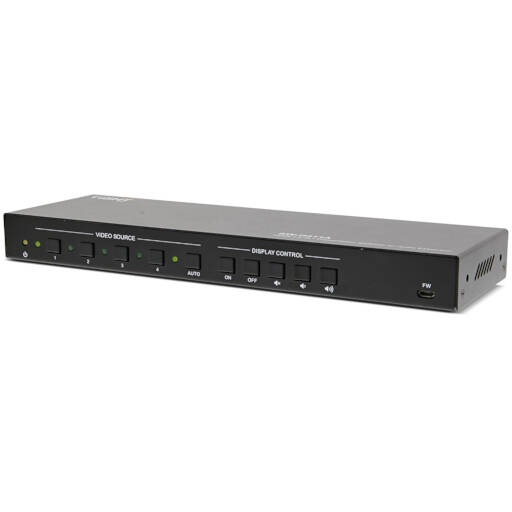

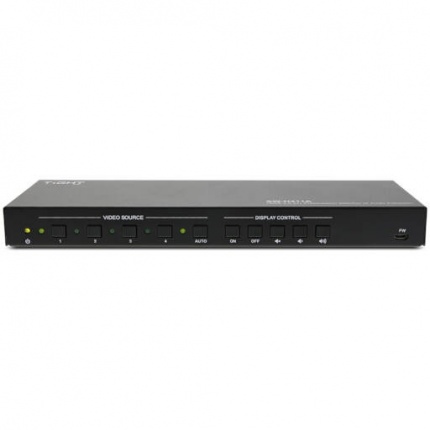

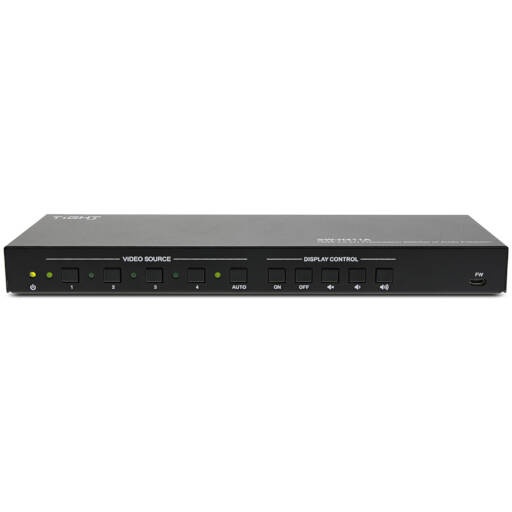

This switcher also features user friendly automatic switching and display control - no need for a separate control system. The switcher can also be manually controlled by the front panel buttons, IR remote, TCP/IP and RS232 command. The SW-H411A features a web UI for configuration and control. The Web UI can be set up to accessed from anywhere for easy support.
Features
• Supports HDMI 2.0 and resolutions up to 4K@60Hz 4:4:4 8bit, 1080P, and 3D.
• 18Gbps bandwidth and supports HDR10, HDR10+, Dolby Vision.
• HDCP 2.3 compliant
• Video source auto-switching.
• Automatic display control via CEC or RS232.
• CEC control for display volume and ON/OFF.
• Controllable via TCP/IP, RS232, IR.
• Open API for third party control via TCP/IP and RS232.
• Web UI for control and configuration.
• Optical and balanced analog audio for audio de-embedding.
• Smart EDID management for various application and customized setting.
In the Box
x1 SW-H411A
x2 Mounting Ears with x4 Screws
x4 Plastic Cushions
x1 IR Receiver
x1 IR Remote
x1 3-pin Terminal Block
x1 5-pin Terminal Block
x1 RS232 Cable (3-pin term.block to DB9)
x1 Power Adapter ( 12VDC, 1A )
x1 User ManualVideo
Video Input: (1) HDMI/MHL, (2) HDMI, (1) DP
Video Input Connector: (3) Type-A female HDMI, (1) DisplayPort
HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
MHL Input Resolution: Up to 1080P@60Hz
DP Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
Video Output: (1) HDMI
Video Output Connector: (1) Type-A female HDMI
HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Version: 2.0
HDCP Version: 2.3
MHL Version: 2.2
DP Version: 1.2
HDR 10: Supported
CEC: Supported
HPD: Supported
Audio
Audio Output: (1) OPTICAL, (1) Stereo balanced L/R
Audio Output Connector: (1) Toslink connector, (1) 5-pin terminal block
HDMI Audio Format: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through.
Stereo analog L/R audio Format: PCM
Toslink Digital Audio Format: PCM, Dolby Digital, DTS, DTS-HD
Max Output Level: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
THD+N: 0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR: >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation: >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation: 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation: ± 0.5dB 20Hz ~ 20KHz
Output Load Capability: 1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation: >70dB@1KHz
Control Part
Control: (1) FW, (1) EDID, (1) IR IN, (1) RS232, (1) TCP/IP
Control Connector: (1) Micro-USB, (1) 4-pin DIP switch,(1) 3.5mm mini jack, (1) 3-pin terminal block, (1) RJ45
General
HDMI 2.0 Cable Length: 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m,1080P ≤ 15m
Bandwidth: 18Gbps
Operation Temperature: -10℃~ +55℃
Storage Temperature: -25℃~ +70℃
Relative Humility: 10%-90%
External Power Supply: Input: AC 100~240V, 50/60Hz, Output: 12V DC 1A
Power Consumption: 5W (Max)
Dimension (W*H*D): 262mm x 26mm x 84mm
Net Weight: 320g
