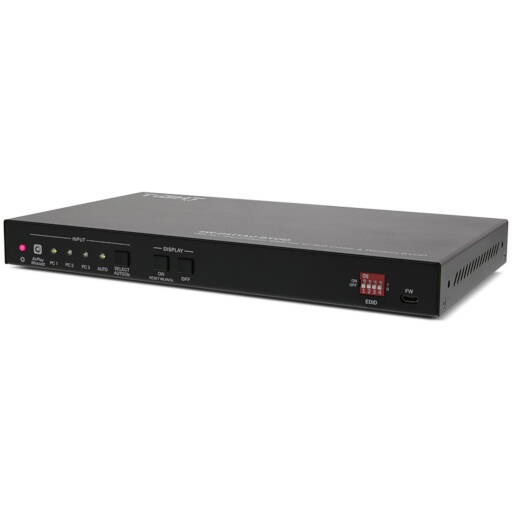

The SW-H411AU-BYOD is a presentation system that supports both wired and wireless BYOD content sharing. Besides the wireless content sharing, the 4x1 BYOD switcher offers two HDMI 2.0 inputs and one USB-C input ideal for the latest MacBooks and PCs with 60W of charging power. This presentation system also features user friendly automatic switching and display control - no need for a separate control system. USB peripherals in the room can be shared to the active source such as USB cameras, USB microphones or keyboard and mouse which makes the SW-H411AU-BYOD ideal to use in meeting rooms.back
Features
- 18G 4x1 presentation switcher with soft codec & wireless BYOD.
- Supports HDMI 2.0b, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision and HDCP 2.2.
- Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast.
- Provide up to 60w charging, USB data (USB 3.0/2.0) and 4K video transmission USB-C port.
- HDMI output audio can be de-embedded out via balanced analog audio port.
- Two Type-B USB ports for host connection, and two type-A USB ports for USB devices like webcam, microphone and keyboard.
- Supports video source auto-switching.
- Smart EDID management.

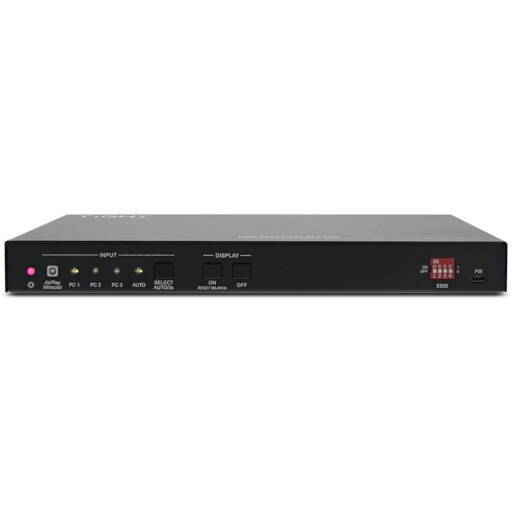

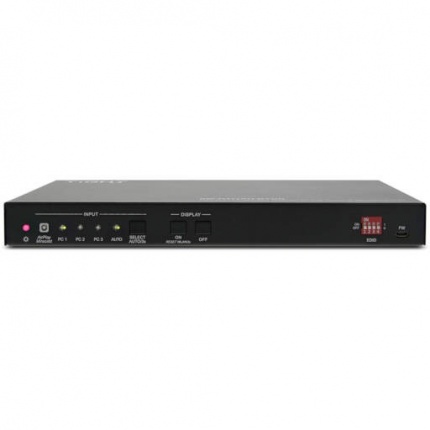

- Front panel buttons trigger both CEC and RS232 commands for display control.
In the Box
- 1x SW-H411AU-BYOD 18G 4x1 Presentation Switcher
- 2x Mounting Ears with 4 Mounting Screws
- 4x Plastic Cushions
- 1x 5-pin Terminal Block
- 1x RS232 Cable (3-pin terminal block to DB9)
- 1x External Antenna
- 1x Power Adapter (24V DC 5A)
- 1x User ManualVIDEO

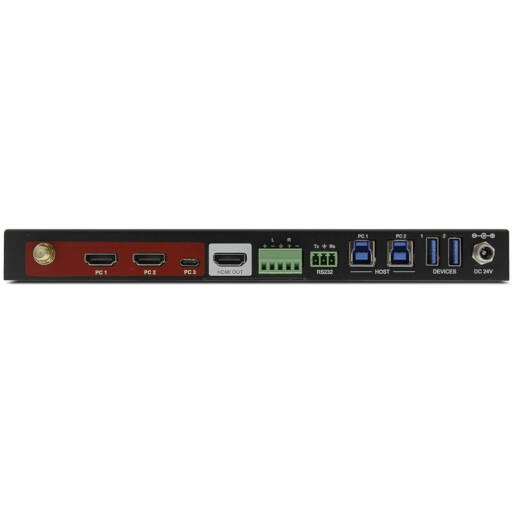

Video Input: (1) AirPlay/Miracast, (2) HDMI, (1) USB-C
Video Input Connector: (1) External antenna connector, (2) Type-A female HDMI, (1) Type-C USB 3.0
AirPlay/Miracast Input Resolution: Up to 4K@30Hz 4:4:4
HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C Input Resolution: Up to 4K@30Hz 4:4:4
Video Output: (1) HDMI
Video Output Connector: (1) Type-A female HDMI
HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
HDMI Standard: Up to HDMI 2.0b
HDCP Version: Up to HDCP 2.2
AUDIO
HDMI Embedded Audio Format: Supports Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, 2 - 8Ch PCM 32-192kHz 16-24 bits; 2-8Ch PCM 32-192kHz 16-24 bits
Balanced Analog Audio Output: (1) AUDIO OUT
Balanced Analog Audio Output Connector: (1) 5-pin terminal block
Frequency Response: 20Hz–20KHz, ±3dB
Max Output Level: 2.0Vrms ± 0.5dB
THD+N: 0.05%, 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
SNR: >80dB, 20Hz - 20KHz bandwidth
Crosstalk Isolation: -80dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation: 0.05dB, 1KHz sine at 0dBFS level (or max level before clipping)
Output Load Capability: 1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Noise Level: -80dB
CONTROL
Control port: (1) 4-pin DIP switch, (1) FW, (2) HOST (PC1&PC2), DEVICES, (1) RS232
Control Connector: (1) Micro-USB, (2) Type-B USB 3.0, (2) Type-A USB 3.0, (1) 3-pin terminal block
NETWORK CONNECTIVITY
WLAN Standards: IEEE 802.11ac
Band: 2.4 and 5GHz
Max. Wireless Coverage: ≤5m, environment dependent, reduce disturbance to increase transmission distance up to 10m
Max. Output Resolution: 4K/30Hz
Version: iOS 7 or above, MacOS, Android 4.0 or above,Windows8.1 or above.GENERAL
Operation Temperature: -5 ~ +55℃
Storage Temperature: -25 ~ +70℃
Relative Humidity: 10% ~ 90%
External Power Supply: Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A.
Power Consumption: 85w (Max)
USB-C Power Charging: 60w (Max)
Dimension (W*H*D): 238mm x 24.5mm x 135mm
Net Weight: 825g
