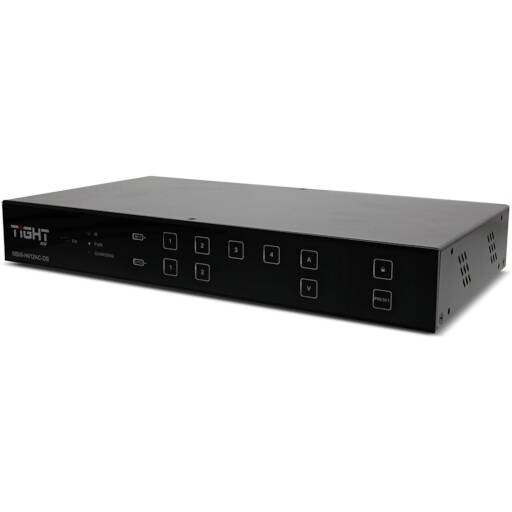

The MSW-H412AC-DS is a 4x2 HDMI 2.0 matrix supporting resolutions up to 4K60 4:4:4. The matrix features three HDMI 2.0 inputs and one USB-C input that also provides up to 60W of power delivery to the connected USB-C source. It has two HDMI 2.0 outputs that supports 4K to 1080P automatic downscaling eliminating the need for a separate scaler when mixing 4K and 1080P displays. The unit also features an independent audio matrix with volume control and delay settings per output. The MSW-H412AC-DS supports various control options, front panel, IR, RS232, TCP/IP and WEB-UI. It comes fully packed with extensive configuration and settings options to make the installation go smoothly and integrate easily with any application.
Features
• Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDR 10, Dolby Vision and HDCP 2.3.
• 3 x HDMI Inputs, 1 x USB-C Input, 2 x HDMI Outputs
• Provides up to 60w Power Delivery on USB-C input.
• Features an independent audio matrix.
• Supports 4K auto downscaling to 1080p on HDMI outputs.
• Extensive EDID management, and HDCP management on input and output side.
• Supports CEC control for devices connected on inputs and outputs

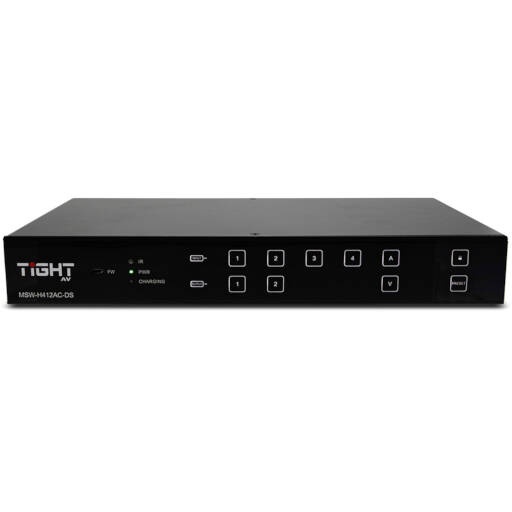

• Various control options: Front panel, RS232, IR remote, TCP/IP and WEB UI.
In the Box
- x1 MSW-412AC-DS
- x2 Mounting Ears & 4 Mounting Screws
- x1 Power Adapter (24VDC, 5A)
- x1 IR receiver (5V)
- x1 IR Remote
- x4 Rubber feet
- x1 RS232 Cable (3-pin to DB9)
- x1 User ManualVideo

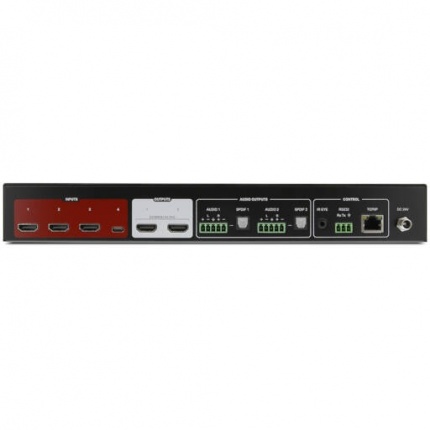

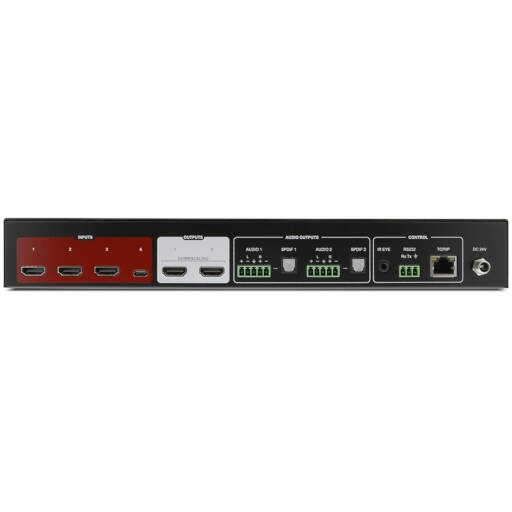

Video Input: (3) HDMI, (1) USB-C
HDMI Input Resolution: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C Input Resolution: Up to 4K@60Hz 4:4:4
Video Output: (2) HDMI
Video Output Connector: (2) Type-A female HDMI
HDMI Output Resolution: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision
HDMI Standard: Up to HDMI 2.0b
HDCP Version: Up to HDCP 2.3 (backwards compatible)
Audio
HDMI Embedded Audio Format: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Audio Output Connector: (2) 5-pin terminal block (2) SPDIF
Frequency Response: 20Hz–20KHz, ±3dB
Max Output Level: L+R: 0.88 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -10 dBV (316 mV) nominal consumer line level signal, SPDIF: ±0.05dBFS
THD+N: 0.05% (-80 dB), 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level)
SNR: L+R: > 80dB, 20Hz-20 kHz bandwidth, SPDIF: > 90dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation: -80 dB, 10 kHz sine at 0 dBFS level (or max level before clipping)
L-R Level Deviation: L+R: 0.3 dB, 1 kHz sine at 0 dBFS level (or max level before clipping)
Output Load Capability: L+R: 1k ohm and higher (supports 10x paralleled 10k ohm loads)
Noise Level: >70dB @ 1 kHz
Control
Control ports: (1) IR EYE, (1) RS232, (1) TCP/IP
General
Operation Temperature: -5 - +55℃
Storage Temperature: -25 - +70℃
Relative Humidity: 10% - 90%
External Power Supply: Input: AC 100-240V, 50/60Hz; Output: 24V DC 5A.
Power Consumption: 76w (Max)
USB-C Power Charging: 60w (Max)
Dimension (W*H*D): 315W * 44H * 165D mm
Net Weight: 1450g
