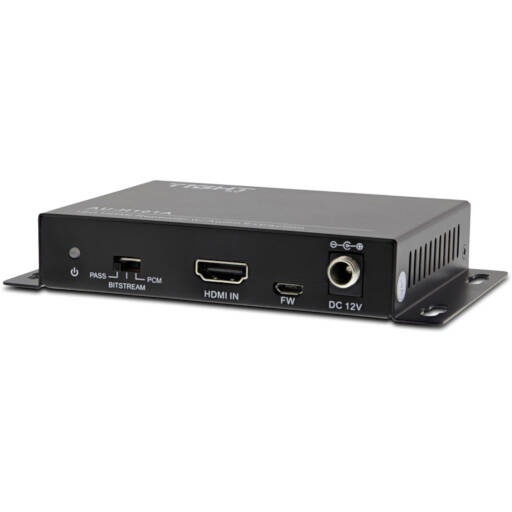

The AU-H101A is a small-size HDMI 2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three different types of audio outputs. It is designed to extract audio from a HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output.It also features an HDMI equalizer to ensure full HDMI signal integrity is maintained. The AU-H101A can compensate for poor source signals or low-quality cabling at the end of a long cable run. EDID and CEC pass-through ensures that the source video is at the optimal resolution for the display and can be controlled by CEC from source.
Features:
• De-embeds analog audio and coaxial digital audio from an HDMI signal.
• HDMI equalization.
• Three selectable audio modes.
• 4K@60Hz (4:4:4) and data rates up to 18 Gbps.
• HDMI 2.0 and HDR support.
• HDCP 2.2/1.4 support.
• EDID and CEC pass-through.
In the Box
1 x AU-H101A
1 x Power Adapter (12VDC, 1A)
1 x 5-pin Phoenix Connector
4 x Plastic Cushions
1 x User ManualVideo

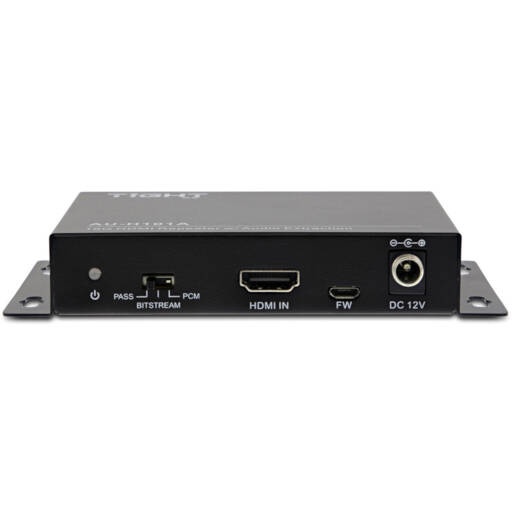

Input: (1) HDMI
Input connector: (1) 19-pin type-A female HDMI 2.0, HDCP2.2
Output: (1) HDMI
Output connector: (1) 19-pin type-A female HDMI 2.0, HDCP1.4
Audio

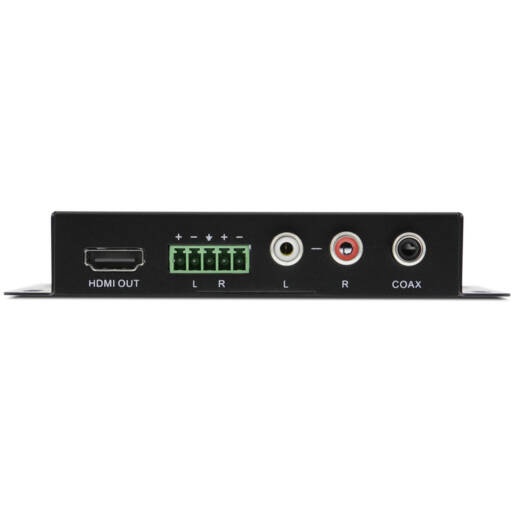

Output: (1) Stereo balanced audio L/R; (1) Analog audio L+R ; (1) COAX
Output connector: (1) 5-Pin phoenix connector; (1) RCA ; (1) Coaxial audio connector
Stereo analog audio format: PCM
Coax digital audio format: LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
General
Max data rate: 18Gbit/s
Max resolution: 4Kx2K@60Hz 4:4:4
Work Temperature: -10~ 55℃
Reference humidity: 10% ~ 90%
Power consumption: 3 W (Max)
Power supply: Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A
Dimension (W*H*D): 129mm x21.5 mm x77 mm
Net weight: 244g
