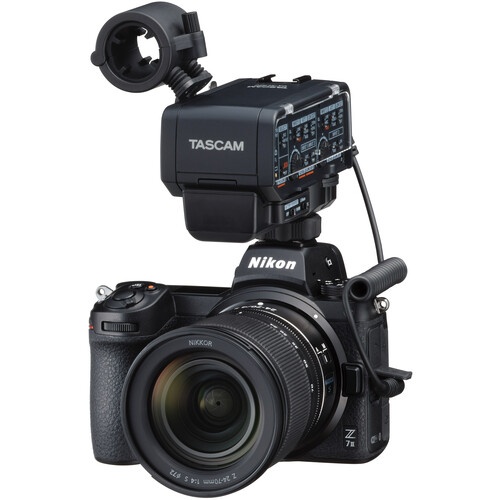

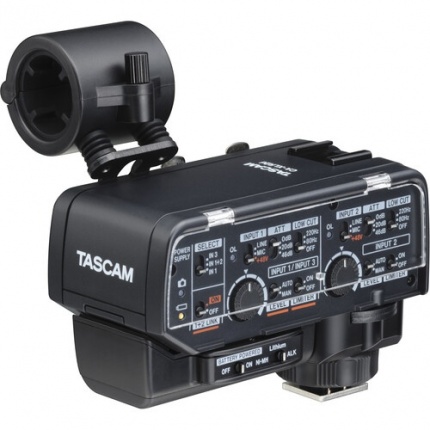

Tascam CA-XLR2d-AN XLR Microphone Adapter Kit for Cameras (3.5mm Analog)

S$ 643.00
(S$ 643.00 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • - Microphone adapter with XLT input expansion for mirrorless cameras
  • - Equipped with 2XLR/TRS input terminals
  • - Equipped with a high-performance AD converter
  • - Power can be supplied from camera body
  • - Equipped with a high-performance HDDA mic preamplifier
  • - Equipped with 1/8-inch stereo mini jack (INPUT3) for lavalier microphone
  • - Compatible with virtually all cameras that have an analog input.
  • - Equipped with a convenient cable holder for wiring around the camera
Show moreShow less
  • Equipped With a High-performance AD Converter, Direct Transmission of Digital Audio to the Camera. (Compatible manufacturers: Canon, FUJIFILM)

    Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.

    High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range

    CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.

    Designed For a High Degree of Freedom

    A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.

    Built-in Processing With User-friendly Control and Highest Recording Quality

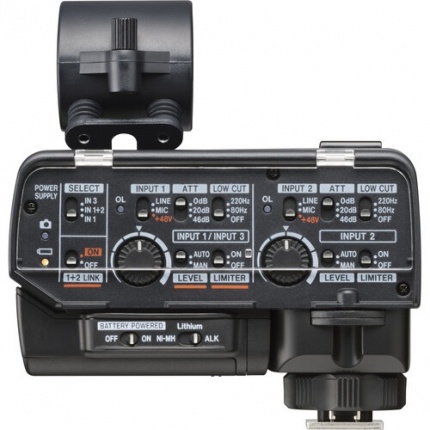

    CA-XLR2d includes internal processing such as Auto Level, Low Cut Filter, and Limiter, all using convenient switches.The CA-XLR2 also supports the 1+2 LINK function, which allows you to adjust the L-R volume simultaneously when recording in stereo.The premium sound quality is possible because of professional grade 16bit/24bit, 48kHz/96kHz bit rates and sampling frequencies.

    Direct monitoring using headphones is possible. (Compatible manufacturers: Canon, FUJIFILM)

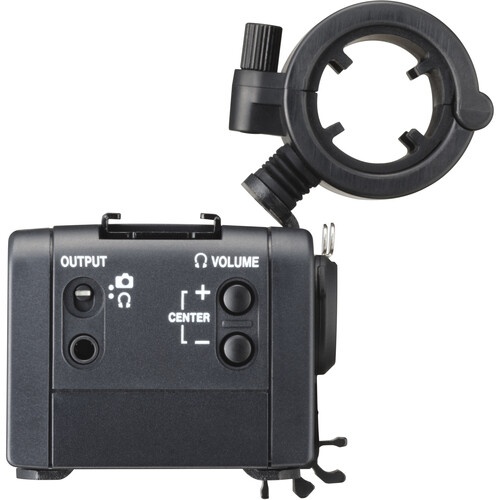

    Built-in analog output terminal with headphone mode options that provides latency-free direct monitoring.


    In the Box:

    Tascam CA-XLR2d-AN XLR Microphone Adapter Kit for Cameras (3.5mm Analog)
    CA-AK1-AN Cold Shoe Mount Adapter (Attached to Unit)
    Mic Holder (Attached to Unit)
    Battery Holder (with Connector Cover)
    3.5mm Stereo Mini Cable

  • Sampling Frequency - 48k / 96k Hz

    Quantization Bit Rate - 16/24 bit * Fs & Bitrate are synchronized with the settings of the connected camera

    Number of channels - 2 channels

    MIC inputs (Balanced)

    INPUT 1/2 Jacks


    • XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
    • 6.3mm(1/4") standard TRS jacks Input (Tip:HOT, Ring:COLD, Sleeve:GND)
    • * Phantom power supported by XLR only

    MIC IN  - input switch set to "MIC"

    • Input Impedance - 2kΩ or higher
    • Maximum Input Level - +6dBu (ATT setting "46dB") *1
    • Minimum input level - -60dBu (ATT setting "0dB") *1
    • Gain range - 66dB

    LINE IN - input switch set to "LINE"

    • Input Impedance - 10kΩ or higher
    • Maximum Input Level - +24dBu *1
    • Rated input level - +4dBu *1
    • Gain range - 66dB

    MIC inputs (Unbalanced)

    INPUT 3 Jack Connector3.5mm(1/8") Stereo mini jack* Support plug-in power

    • Input Impedance2kΩ or higher
    • Maximum Input Level+6dBV (ATT setting "46dB") *2
    • Minimum input level-60dBV (ATT setting "0dB") *2
    • Gain range66dB
    • Plug-in power2.7V
    • PHONE / CAMERA output (Unbalanced)

    OUTPUT Jack

    Connector - 3.5mm(1/8") Stereo mini jack

    Output level - 0.29Vrms (Fixed,OUTPUT setting "CAMERA")0.5Vrms (Output volume setting at maximum、OUTPUT "HEADPHONE")

    Headphone working impedance -16 to 250Ω

    Power - 2 AA batteries (alkaline, NiMH or lithium-ion)Supplied through accessory shoe of compatible camera

    Power consumption - 2.0W (maximum)

    Dimensions: 88.2(W) × 119.1(H) × 110.0(D)mm (not including protrusions)

    Weight CA-XLR2d-AN 357g (not including batteries, mic holder attached, battery holder attached)

    Operating temperature - 0 to 40°C (32 to 104°F)


    Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-AN cold shoe mount adapter(attached to unit)
