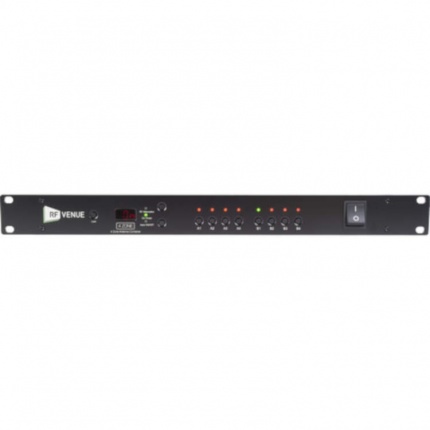

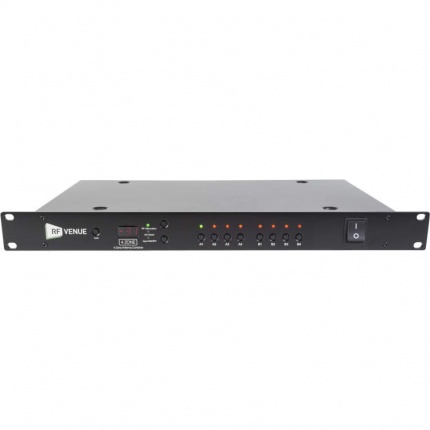

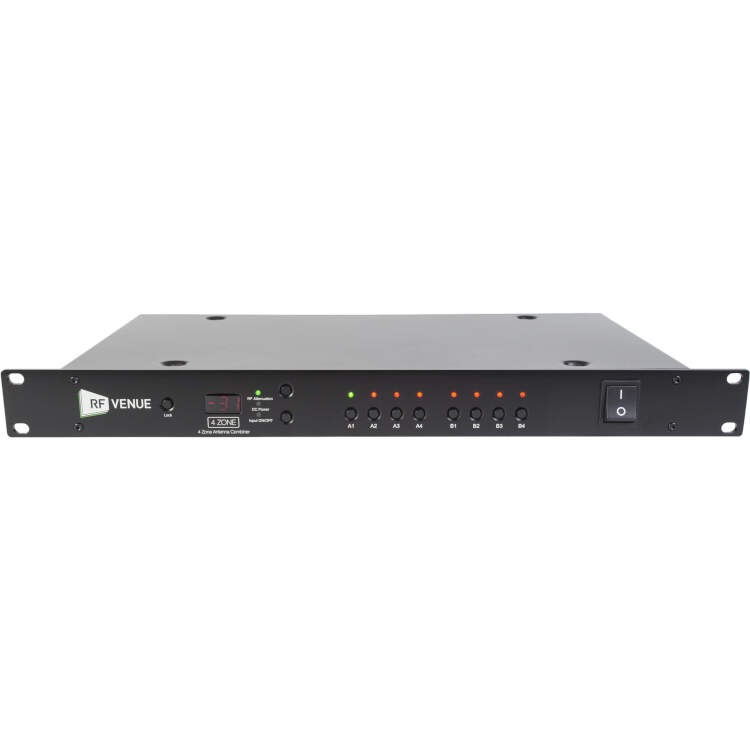

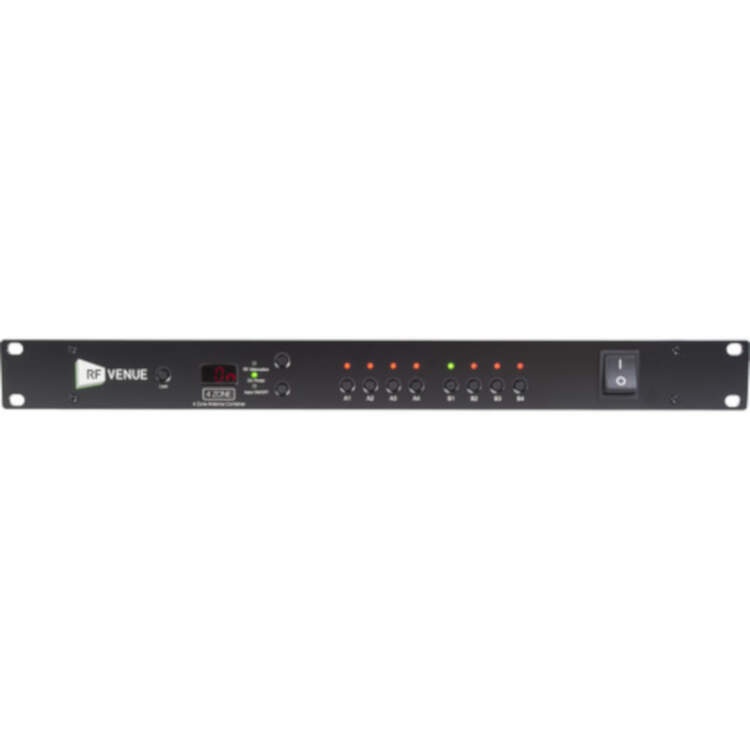

RF Venue 4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)
The RF Venue 4 Zone is an antenna combiner for wireless microphones receivers, which combines up to four separate pairs of diversity antenna connections. Designed to take the complexity out of multi-zone signal management, it is ideal for use in multi-purpose rooms, indoor-outdoor configurations or main stages with secondary breakout rooms.
The unit operates in the 470 to 960 MHz frequency range and is compatible across all brands. It allows for fine-tuning of RF levels in each coverage area by offering RF signal attenuation control for each channel, down to -31 dB in 1 dB steps. For roaming microphone transmitters, selectable On/Off inputs let you choose which coverage zones are active, saving setup and breakdown time when working on location. Additionally, the RF Venue 4 Zone can provide 12 VDC power to active antennas or in-line amplifiers on long cable runs.
In the Box
RF Venue 4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)
AC Power Cable
2 x BNC to BNC Coaxial Cables (8")
Limited 1-Year WarrantyRF Venue 4ZONE Specifications:
Carrier Frequency Range 470 to 960 MHz
System Gain 3 dB, ±3 dB (full)
Impedance Input/Output: 50 Ohms
A/B Antenna Input 4 + 4
OIP3 -35 dBm (typ.) at 2-tone, Pi= -15 dBm/tone
RF Input Attenuation -31 to 0 dB (Step: 1 dB)

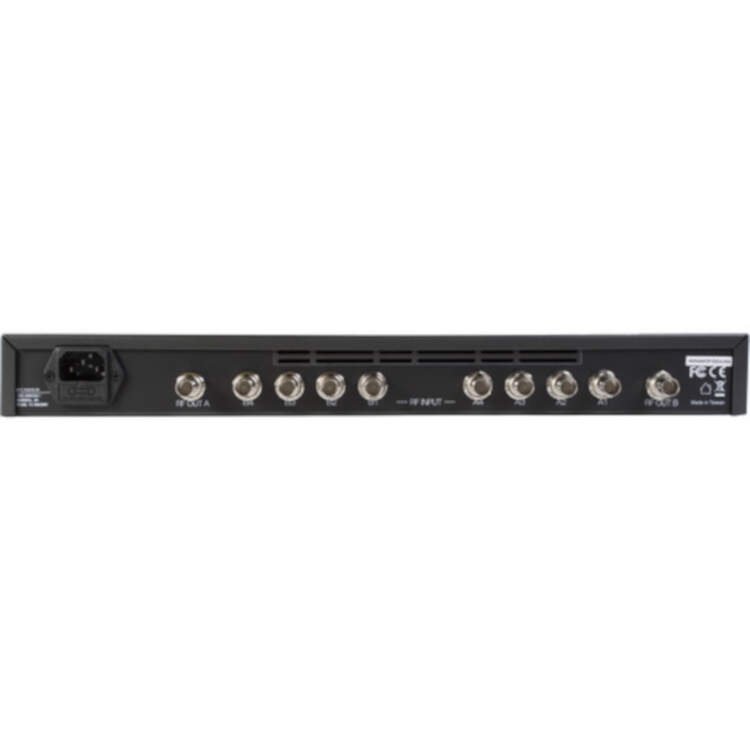

Connectors Input: 8 x BNC, female
Output: 2 x BNC, female
Functions DC Power On/Off control, for in-line amplifier
RF Input Attenuation control
RF Input Signal On/Off control
In-Line Amplifier Power 12 V / 200 mA
Power Supply 100-240 VAC, 50/60 Hz, 2 A (maximum)
Dimensions (W x H x D)18.9 x 1.8 x 10.2" / 480.0 x 45.0 x 260.0 mm
