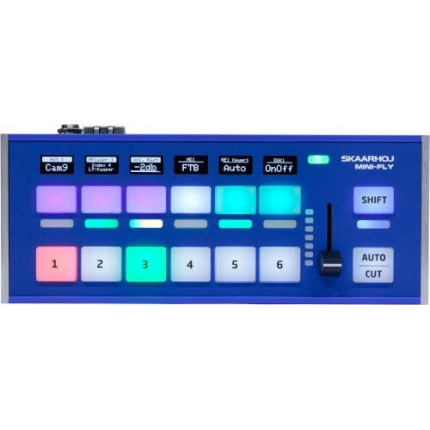

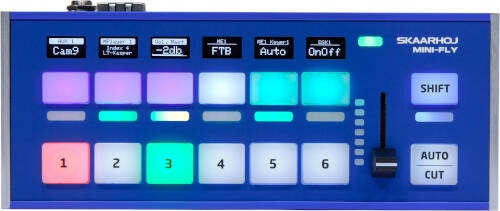

With the super compact and super flexible Mini Fly, SKAARHOJ controllers excel in live switching.
It's perfect for small live productions with six cameras, audio monitoring and transitions.
And the six four-way buttons with OLED displays extend its power beyond imagination.
RGB LED's
RGB multi-level metering LEDs for VU, tally or step indicationFour-way buttons
Programmable four-way buttons with crisp OLED displaysShift key
Multi-level shift key with step indicatorRGB Backlit
Custom molded RGB backlit keysLED Bar
LED bar for transition position and VU meteringTransition Fader
Smooth transition fader and Cut/Auto buttonMounting Clamps

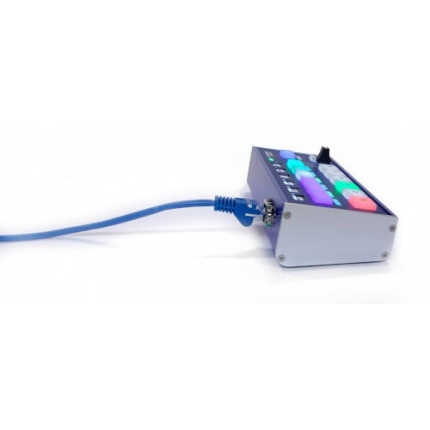

1/4"-20 thread at bottom for mounting clampsForm Factor
Slim, ergonomic console form factor- PoE
Ethernet with PoE (IEEE802.3af)
In the Box:
SKAARHOJ Mini Fly Live Switching Controller
12V Power Supply
Micro-USB Programming Cable
Networking CableNumber of Cameras Supported 6
Controls and Indicators
6 x Programmable 4-Way Buttons with OLED Displays
6 x Programmable 4-Way Audio Buttons with RGB Multilevel Metering LEDs & OLED Displays
1 x Transition Fader with RGB LED Bar
1 x Shift Button with Multilevel Indicator
1 x Auto/Cut Button
Connectors 1 x RJ45, Ethernet
1 x Micro-USB, Programming
1 x DC Power Input
Power Source PoE IEEE802.3af
Operating System UniSketch
Mounting Points 1 x 1/4"-20 Thread, Bottom
Dimensions 12.6 x 5.9 x 2.8" / 32 x 15 x 7 cm
Weight 1.6 lb / 725 g
