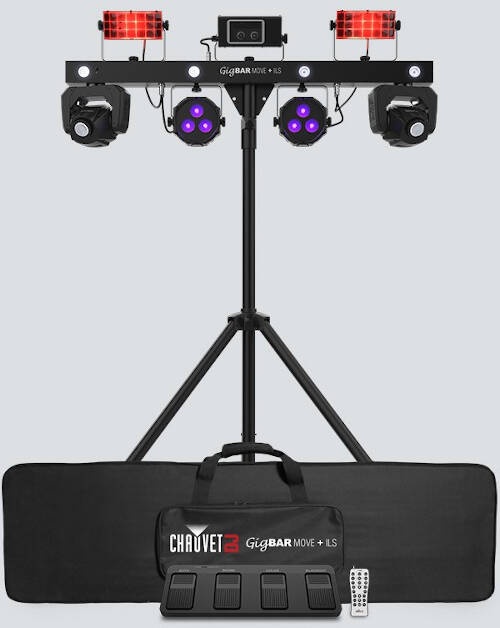

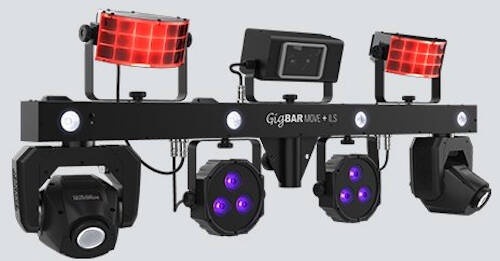

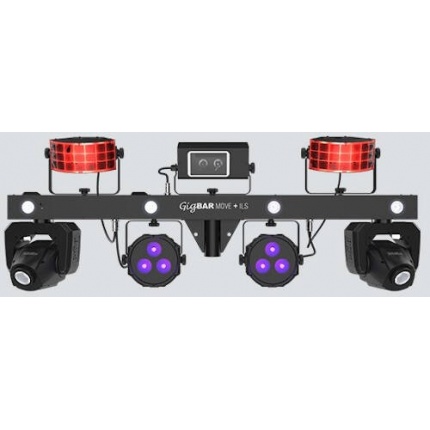

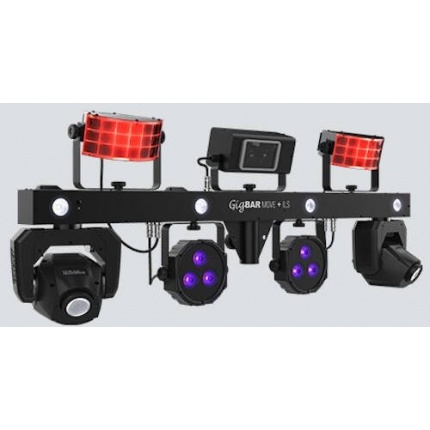

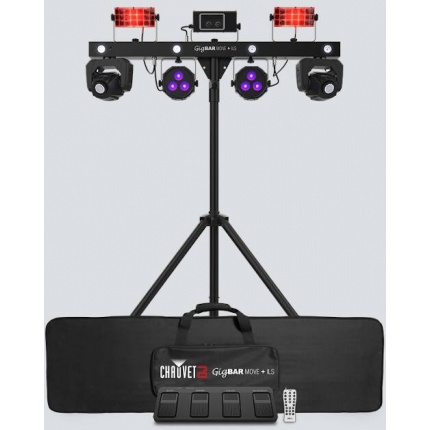

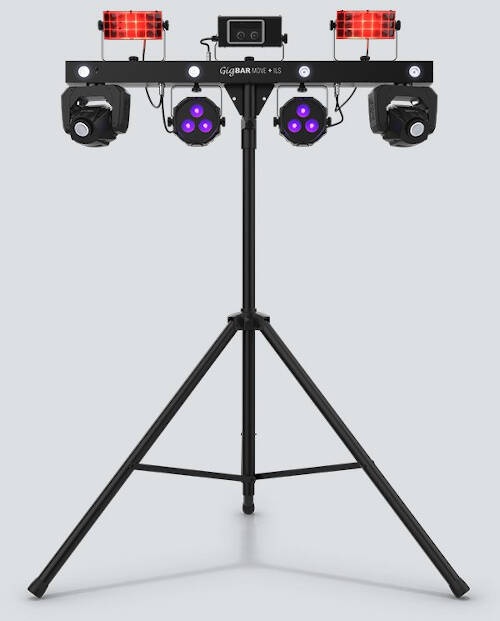

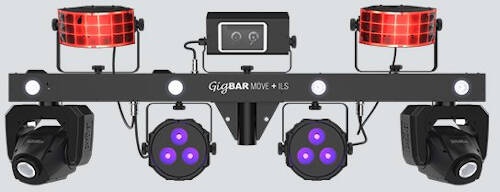

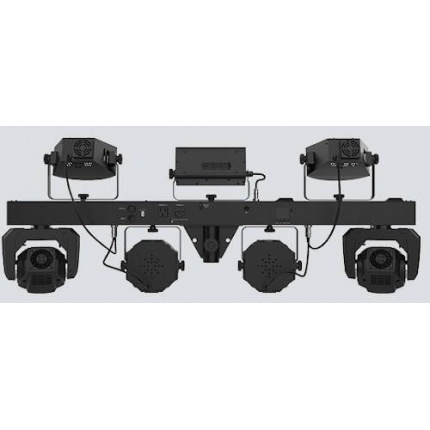

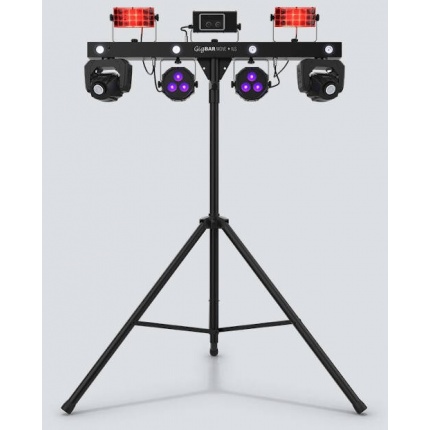

Designed to create a complete light show for the mobile entertainer, the black CHAUVET DJ GigBAR Move + ILS is a five-in-one lighting system designed to flood your stage or dance floor with a variety of exciting lighting effects and beam patterns. It includes a pair of moving head fixtures, a pair of RGBW LED derby fixtures, a pair of RGBAW+UV LED PARs, a red/green/blue laser, and four cool-white strobes, all mounted on a single bar and supported by the included tripod. Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types.
The effects can be coordinated to create instant light shows with countless multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases, and hundreds of red, green, and blue laser beams that can rotate, and four cool-white strobes. The GigBAR Move ships with a wireless remote, a wireless foot controller, a height-adjustable tripod, and two carrying bags that let you comfortably transport the fixtures and the tripod.
- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser, and a strobe effect premounted on a single bar
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Control any ILS-enabled fixture wired or wirelessly (sold separately)
- Use the included RF remote to trigger the built-in shows without needing line of sight
- Powerful moving heads with separate color and gobo wheels allow for creative programming
- Totem Mode keeps the moving heads focused on the dancefloor
- Easy navigation and access to all moving-head functions directly from the full-color LCD display
- System includes a tripod, wireless footswitch, RF remote, and carrying bags to ensure quick setup
- Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
- Individual control of each effect ensures your show looks the way you want
- Easy control via standalone, DMX, wireless RF remote, or wireless footswitchIncluded
- GigBar Move Plus ILS
- Power cord
- RF Remote
- Carry Bag
- Tripod
- Tripod carry bag
- FootswitchLight
Light Type Moving Head / PAR / Special Design
Light Source PAR:
3 x Color/UV LED - 6 W / 2 A
Strobe:
4 x White LED - 5 W / 1.2 A
Effect Light:
8 x Color LED - 6.5 W / 2 A
Effect Light 2:
1 x White LED - 32 / 3 A
Effect Light 3:
1 x Laser Diode - 30 mW
1 x Laser Diode - 20 mW
1 x Laser Diode - 50 mW
Light Source Life Expectancy 50,000 Hours
Colors PAR:
Red
Green
Blue
Amber
White
Strobe:
Cool White
Effect Light:
2 x Red
2 x Blue
2 x Green
Spot:
1 x White
Red
Orange
Yellow
Green
Blue
CTO (Color Temperature Orange)
Cyan
Magenta
Lime
Laser Red: 638 nm / 30 mW
Green: 520 nm / 20 mW
Blue: 450 nm / 50 mW
Laser Class: 3R
Photometrics 111.9 fc / 1205 Lux at 6.6' / 2 m
Beam Angle PAR:
22°
Strobe:
30°
Wash:
17°
Field Angle PAR:
33°
Strobe:
62°
Shutter / Strobe Electronic
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, DMX, Sound-Active, Totem
Macros / Programs Auto-Program
Movement Macro
Sound-Active
Color Change
Effects Strobe
Derby Effect
Strobe Rate 0 to 30 Hz
Gobos 9 x Gobo
Movement
Tilt Ranges 180°
Pan Ranges 540°
Pan/Tilt Inversion YesControl
Control Protocols DMX512
DMX Channel Modes 3 Mode(s):
3 / 28 / 50-Channel
Display / Controls LCD / 4-Button
Remote Control Footswitch (with Included Equipment)
IR Remote (with Included Equipment)Connectivity
I/O 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Wireless Range Footswitch:
100' / 30.5 mPower
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Fuse T 3.15 A 250 V
Power / Current Consumption 120 VAC, 60 Hz: 250 W / 3 A
230 VAC, 50 Hz: 79 W / 0.6 A
Power Linking 7 Units at 120 VAC
12 Units at 230 VACEnvironmental
IP Rating NonePhysical
Mounting Tripod Stand & Top Bar
Included Accessories None
Duty Cycle None
Exterior Color Black
Cooling Convection, Fan
Certifications CE, FCC
*as per Manufacturer
Dimensions 43 x 5.7 x 17.7" / 109.2 x 14.5 x 45 cm
Weight 31 lb / 14.1 kg (System)
