The RØDECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.
Designed to excel in a wide variety of production applications—social media, streaming, podcasting, and live events—the RODECaster Video blends the best of HD video switching technology with the familiar studio-grade audio control of previous RODECasters. The console offers intuitive control over both video and audio sources with its onboard controls, 2" touchscreen display, and rotary encoder. A variety of connectivity options, including HDMI and USB-C ports, accommodate UVC video sources as well as both analog and digital audio sources. Up to 20 possible audio sources, or nine stereo channels, can be connected to the RODECaster Video using both wired and wireless connections. Add the RODECaster Video to your preexisting RODE audio ecosystem using the USB-C audio ports or RODE Central software for advanced device configuration.
In The Box:
RODE RODECaster Video All-in-One Production Console
2 x External Antenna
SuperSpeed USB-C to USB-C Cable
Power SupplyAvailable M/E Layers:
9 M/E
Effect Types:
2x Chroma Key
Downstream Keys:
2x Overlay
Audio Mixing:
20-Channel MixingProcessing
Switching Type:
Pushbutton
Processing Resolution:
1080p at 23.98/24/25/29.97/30/50/59.94/60
Color Processing:
8-Bit 4:4:4 RGBInput
Number of Video Input Sources:
6

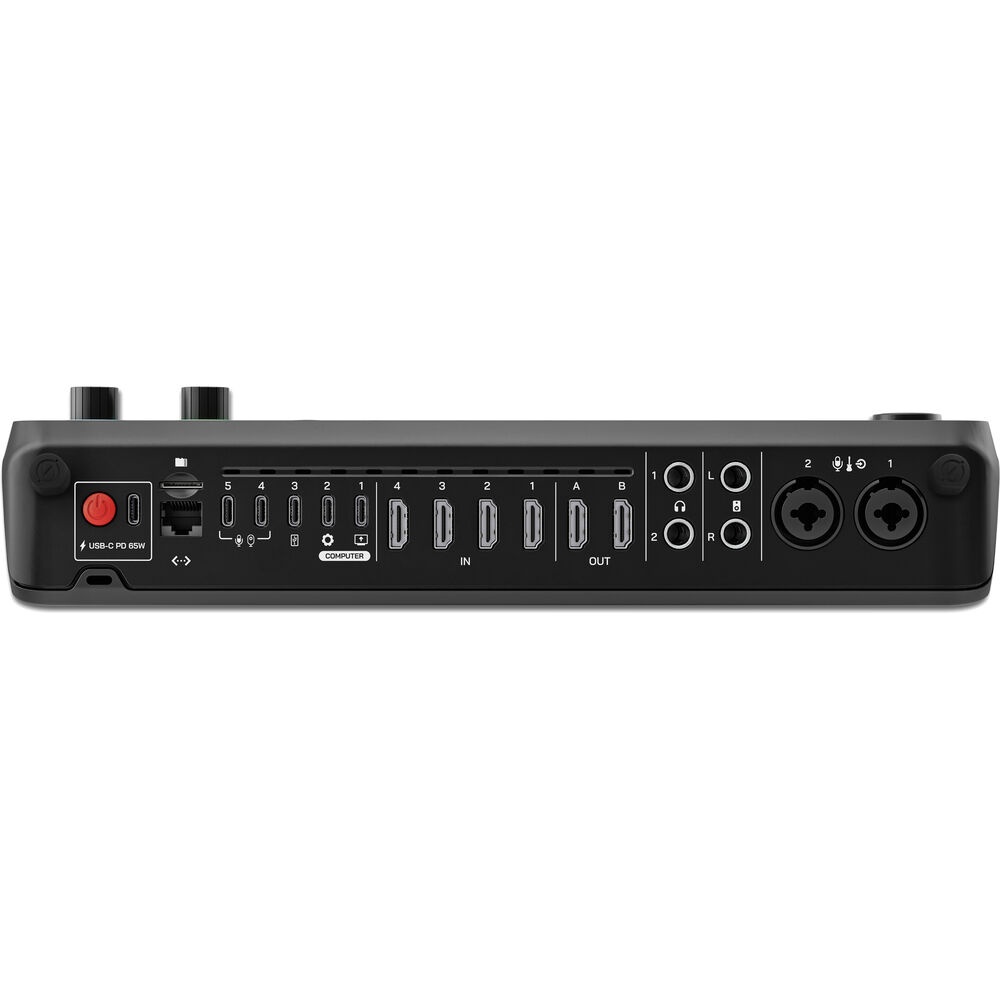

Video Inputs:
4x HDMI (1.4b)
2x USB-C (UVC)
Input Video Format:
HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps
USB-C (4:4:4/4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs:
2x Combo XLR-1/4" TRS
5x Proprietary (Shared with Video)
Embedded Audio Input:
Wireless
USB-C
HDMIOutput
Video Output Channels:
2
Video Outputs:
2x HDMI
Output Video Format:
HDMI (8-Bit 4:4:4 RGB, YUV)
1080p at 24/25/30/50/60 fps
Audio Outputs:
2x 1/4" TRS
2x 1/4" TRS LineConnectivity
Inputs/Outputs:
3x USB-C(Stereo)
Other I/O:
1x RJ45 LAN
HDCP Support:
No
IP Video:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols:
RTMP
Compatible Services:
Facebook Live, Twitch, YouTube Live
Recording Media:
1x microSD (Unspecified Type)
Recording Modes:
1920 x 1080p (H.264/AVC)Display
Display Size:
2"Hardware
OS Compatibility:
macOS 10.15 or Later / Windows 10 to 11
OS Compatibility:
macOS 10.15 or Later
Windows 10.1803 or Later
Windows 11
Processor:
Not Specified by Manufacturer
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth:
5.3
Power I/O:
1x USB-C Input
Power Consumption:
Power Supply: 20 VDC at 3 A (60 W)General
Dimensions:
12 x 5.2 x 2.4" / 305.9 x 132 x 61.4 mm
Weight:
2.8 lb / 1257 gPackaging Info:
Package Weight:
2.5 Kg
Box Dimensions (LxWxH):
35 x 21 x 11cm
