The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SD/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2-Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for "daisy-chaining" multiple monitors to the same SD-HD-SDI source.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.Mini-Converter products are covered by a generous five-year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
In the Box

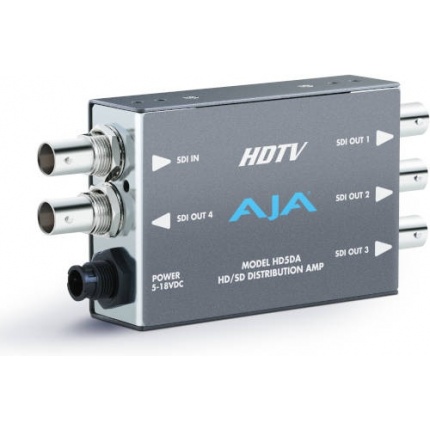

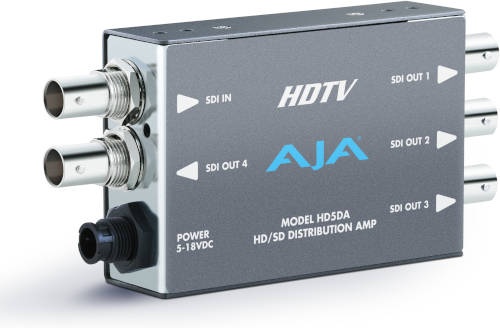

AJA HD5DA 1x4 HD/SD-SDI Distribution Amplifier / Repeater with DWP
AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-ConvertersFormats
• 1.5 Gb, 143, 177, 270, 360 Mb, Auto SelectInputs
• 1 HD-SDI, SDI (SMPTE 292/296), 1 x BNCOutputs
• 4 HD-SDI, SDI, 4 x BNC
• EqualizingReturn Loss
• >15dB - 270 Mhz (Input and Output)Size (w x d x h)
• 5.8" x 2.4" x 1.0" (131mm x 61mm x 25mm)Power
• 5VDC Regulated, 2.5 watts, power supply required, included with purchaseEnvironment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: 3,000 meters (10,000 feet)
