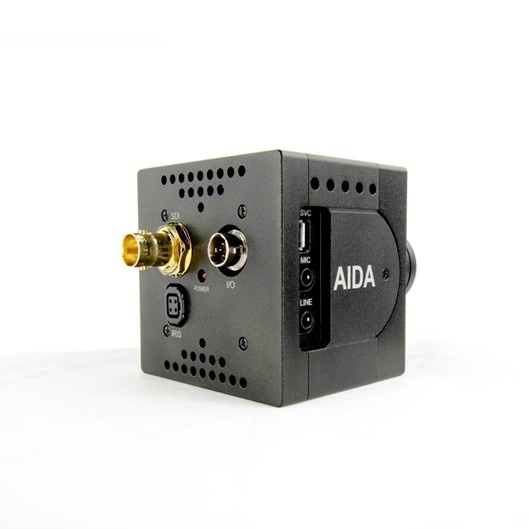

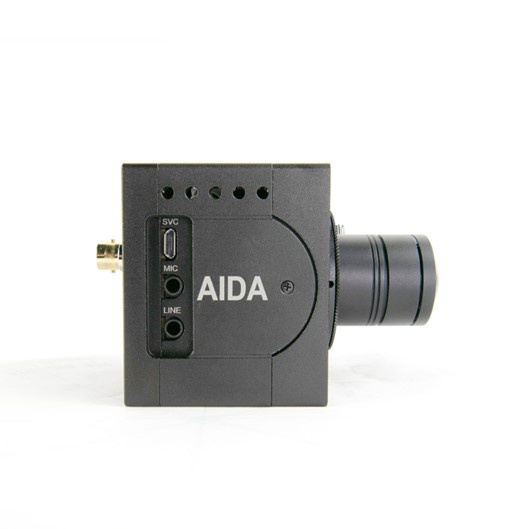

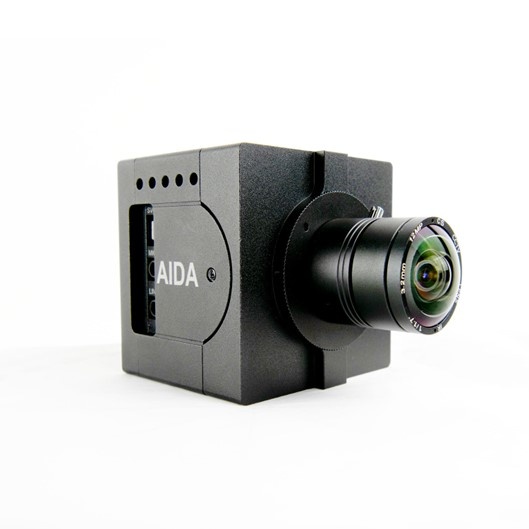

AIDA Imaging - UHD6G-200 4K POV Professional EFP Camera

S$ 1,308.75
(S$ 1,308.75 excl GST)
Not shipping to UNITED STATES OF AMERICA   Want this delivered today? Find out more
Want this item delivered to you today?*
  • Please call or WhatsApp us at +65 8388 9888 to confirm availability.(Mon–Fri 10:00–17:00)
  • Extra charges (incl GST):
    • S$ 25.00 for deliveries of 8kg or below.
    • S$ 35.00 for deliveries above 8kg.
  • Your order must be paid in full before 14:00 (2:00pm) today.

* Not on weekends and public holidays.

What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Ultracompact Industrial/ Broadcast POV Camera

Key Features:
  • 1/2.5" Progressive-Scan CMOS Sensor
  • 4096 x 2160 Resolution at 20/24p fps
  • 3.2mm 12MP 4K Lens (Preinstalled)
  • 6G-SDI Video Output
  • Interchangeable Lens Design
  • Audio Input
  • RS-485 for Remote Communication
  • SMPTE 292M, 424M & 2081-10 Conformant
  • OSD Control Breakout Cable
  • 12 VDC Power Supply & Socket Adapter
Show moreShow less
  • The UHD6G-200 POV Professional EFP Camera from AIDA Imaging has a 1/2.5" progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a preinstalled 3.2mm 12MP 4K lens and a 6G-SDI output and is designed for industrial and broadcast applications. This camera features a user-interchangeable C to CS mount lens as well as digital imaging processor that provides vivid and detailed images by utilizing dynamic range, white balance, and noise reduction. The on-screen display can be remotely controlled by a PTZ camera controller or by CCS-USB and software. A breakout cable with on-screen display control, audio input and RS-485 for remote communication as well as a 12 VDC power supply and socket adapter are included.

    Other features include:

    • Wide dynamic range
    • Digital image stabilization
    • 2D/3D noise reduction
    • Digital slow shutter
    • Black level compensation
    • Flicker detection
    • Compact and rugged form factor that is versatile for broadcasting, pro audio/video, or security
    • Superb motion-compensated temporal noise-reduction filter for motion video without blurring

    In the Box
    - AIDA Imaging UHD6G-200 4K POV Professional EFP Camera
    - Input/Output Breakout Cable
    - 12 VDC Power Supply & Socket Adapter
    - Sensor Cap
    - C-Mount Lens Adapter
    - Hex Wrench
    - Terminal Power Connector

  • General Specifications

    Image Sensor 1/2.5" progressive CMOS

    Sensor Size
    8.365 X 6.615 mm (16:9)

    Pixel Size Horizontal
     1.62 μm

    Vertical
     1.62 μm

    Resolution
    4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720

    Resolution / Frame Rate

    4K (4096 X 2160) at 20/24p
    2160p at 30/29.97/25/24
    1080p at 60/59.94/50/30/29.97/25/24
    1080i at 60/59.94/50
    720p at 60/59.94/50/30/25

    Video Output
    1 x HD/3G/6G-SDI BNC port

    Color Space
    4:2:2 (YCbCr) 10-bit

    White Balance
    AWB / AE / AF

    Exposure
    Full auto, bright, shutter priority, iris priority, manual

    Lens
    C/CS mount

    Audio
    Input 3.5 mm analog audio jack over input/output cable

    Sample Rate
    16/24/32 bits

    SMPTE
    SMPTE 292M, SMPTE 424M, SMPTE 2081-10

    Camera Control

    RS-485
    OSD Button

    Power
    12 VDC (9 to 15 VDC)

    Operation Temperature
    15 to 120°F / -9.4 to 48.9°C

    Dimensions
    2.20 x 2.20 x 2.83" / 56 x 56 x 72 mm

    Weight
    0.37 lb / 170 g

    Package Weight
    1.55 lb/ 0.7kg

    Box Dimensions (LxWxH)
    11.1 x 6.9 x 2.7"/ 28.2cm x 17.5cm x 6.9cm
