Making NDI|HX just as adventurous...
Streaming shouldn’t have to be confined indoors when there’s a whole world out there to enjoy! Introducing the HD-NDI-IP67, being the first of its kind for POV NDI|HX streaming cameras. The Camera features a progressive CMOS sensor, capturing unwavering 1080 60p video over NDI|HX, SRT, or IP protocols. The IP67 rating keeps the camera internals safe, as well as a 10ft braided weatherproof breakout cable to keep the more sensitive cables out of harms way. That means peace of mind when handling the cameras outdoors!
So what are you waiting for? Go stream your adventures with NDI|HX!
No-Hassle Integration
As always, the HD-NDI-IP67 comes pre-loaded with its NDI|HX license key. It just makes sense that way.IP67 rated for any adventure!
The camera’s rated IP67, which allows it to be free from dust and moisture. You can even submerge the camera up to 1M for up to 30 minutes.10ft Weatherpoof I/O cable
The breakout cable attached to the HD-NDI-IP67 is weatherproof. This cable protects the communication from the camera to its RJ45 and 12VDC connections.Simultaneous IP Streaming
The camera is capable of simultaneously streaming NDI®|HX, SRT, RTSP and RTMP. We like to think of it as the Swiss-Army knife in the outdoor streaming world.CS Mount Accessibility
The front WP cap is capable of being removed, allowing for versatile lens options to enhance the stream.*Operable lenses are dependent on size and focal length. Not all lenses will work.*
Full Control over IP
Stay dry by fully controlling all camera functions via the cameras web UI, or VISCA over IP.Compact, Rugged, and Tough
This camera is no different to our other cameras, coming in a hardened aluminum shell built to extra protect the internals, and cabling of the HD-NDI-IP67PoE+ Adaptable
Each purchase of the HD-NDI-IP67 comes with a PoE+ adapter, allowing you to run 1 cable for video, power and control!In the Box

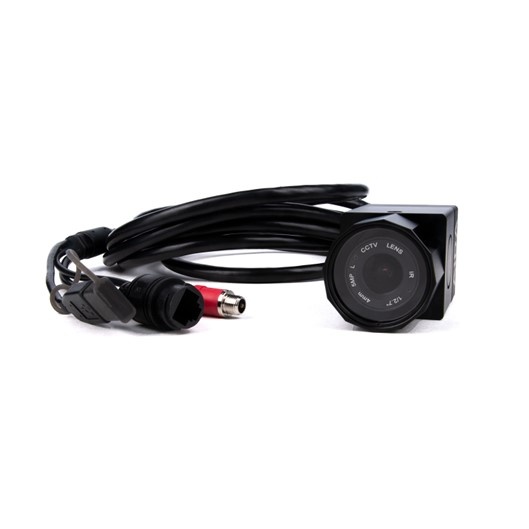

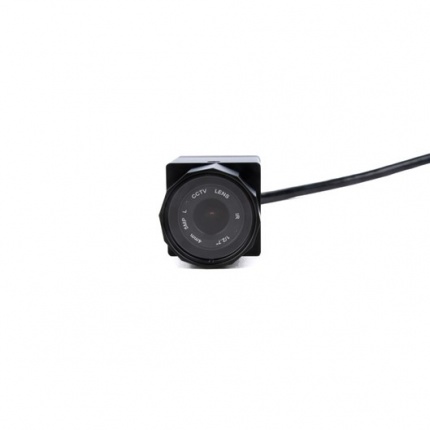

- AIDA Imaging HD-NDI-IP67 Full HD NDI HX / IP Streaming Weatherproof POV Camera
- PoE/Ethernet Dongle Adapter (10')
- 12 VDC Power Supply with Plug Adapter Kit
- C-Mount Cap Adapter
- Sensor CapGeneral Specifications
Interface 1 x RJ45 Ethernet
PoE PoE+ (via Included Adapter)
Protocol Supported UDP, IP, RTSP, RTMP, SRT, NDI|HX (NDI 5 Compatible)
Camera Control Protocol VISCA-over-IP
Video Format
1080p: 60, 59.94, 50, 30, 29.97, 25, 24
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Color Space 10-Bit 4:2:2 (YCbCr)
IP Rating IP67
Minimum Illumination
0.2 Lux (Day)
0.1 Lux (Night)
White Balance Auto
9000 to 11,000KFocal Length 4mm (Included Lens)
Lens Mount C/CS
Sensor 1/3" Sony Progressive CMOS
Sensor Size 5.346 x 3.003 mm
Aspect Ratio 16:9
Power Source AC Input, PoE
DC Input Power 12 VDC
Operating Temperature 32 to 104°F / 0 to 40°C
Cable Length 9.8' / 3 m
Dimensions 3.1 x 1.6 x 1.6" / 78 x 41 x 41 mm
Weight 16 oz / 454 g (With Cap)
Package Weight 2.195 lb/ 1kg
Box Dimensions (LxWxH) 11.5 x 5.1 x 4.1"/ 29.2cm x 13cm x 10.5cm
