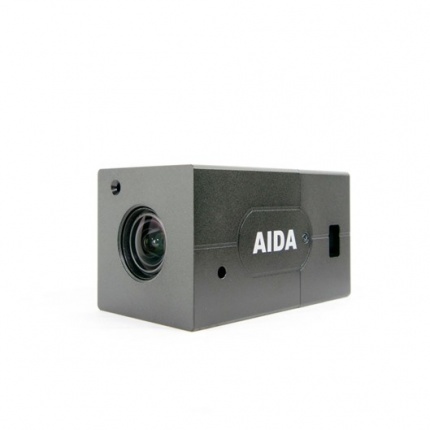

The UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera from AIDA Imaging is an ultra-compact field production camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2 x 3", it can be mounted, for example, as a dashcam in a race car, or discretely in the corner of a surgical room.
The camera captures up to UHD 4K resolution video at 30 fps and offers 3X optical zoom with the built-in lens, allowing you to zoom in from a 78° wide angle to 25° telephoto field of view. It also provides focus and iris control. Applying a motion-compensated temporal noise reduction filter, Wide Dynamic Range, auto white balance, and digital image stabilization, the UHD-X3L captures vivid images without blurring even in low light conditions.

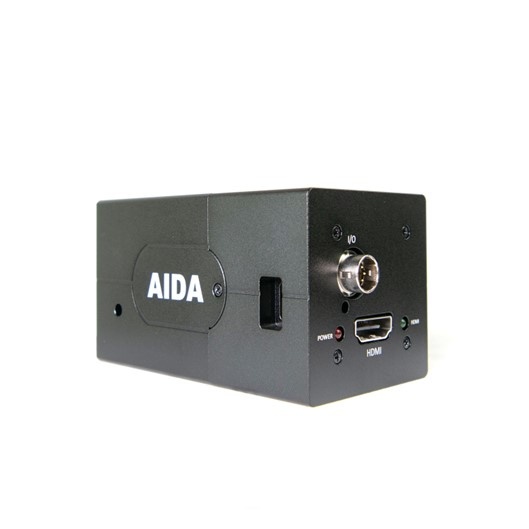

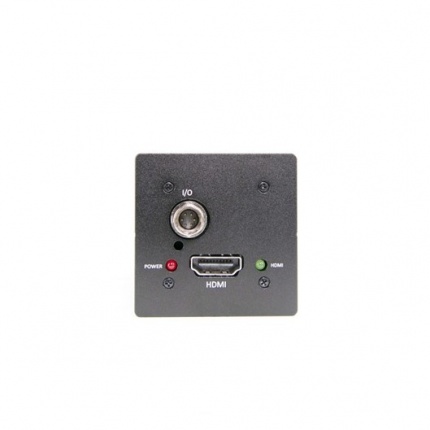

The UHD-X3L has an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An optional wireless transmitter can be incorporated to enhance your workflow in some cases. An included breakout cable provides inputs for power and RS-485 control (VISCA protocol). The cable also has an integrated OSD controller on it. A power cord is supplied and a remote controller is also included. For mounting the camera, there's a 1/4"-20 threaded mounting hole on the bottom of the rugged body.
Other key features include:
- HDMI output
- RS-485 input via breakout cable
- OSD controller integrated on breakout cable
- White balance control
- Digital image stabilization
- Digital slow shutter
- Black level compensation
- Flicker detection
In the Box
- AIDA Imaging UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera
- OSD Control Breakout Cable
- Power Cord with 3 Universal Plug Adapters
- Remote Control
- Hex WrenchGeneral Specifications
Image Sensor 1/2.5" CMOS, 7.2 mm Diagonal
Effective Pixels H x V: 3840 x 2202
Pixel Size 1.62 μm
Resolution
3840 x 2160 at 30/29.97/25/24
1080p60/59.94/50/30/29.97/25/24
1080i60/59.94/50
720p60/59.94/50
Connections HDMI 1.4 Type A Output
I/O Port for Breakout CableBreakout Cable
Power Input
RS-485 Input
Color Space 4:2:2 (YCbCr) 10-Bit
Lens 3X Optical Zoom, 3.85mm/78° (Wide) to 13.4mm/25° (Telephoto)
SMPTE SMPTE 292M, SMPTE 424M, SMPTE 2081-10
Mount Type 1/4"-20 Threaded Hole
Power 12 VDC (9 to 15 VDC)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 1.9 x 1.9 x 3.3" / 4.8 x 4.8 x 8.3 cm
Weight 0.3 lb / 140 g
Package Weight 2 lb/ 0.91kg
Box Dimensions (LxWxH) 12.54 x 5.4 x 4.3"/ 31.9cm x 13.7cm x 10.93cm
