Making NDI|HX even smaller..

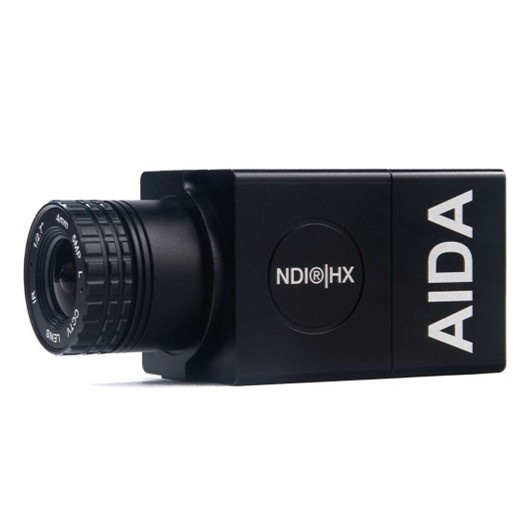

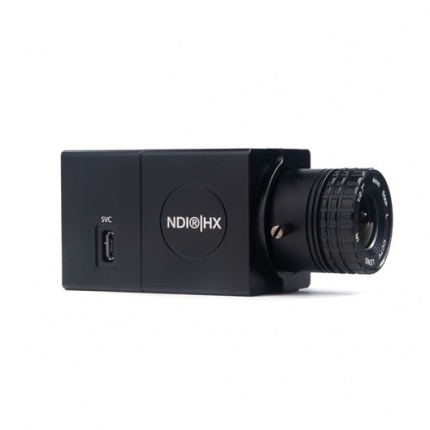

Don’t let the HD-NDI-CUBE fool you. Its tiny form factor does not compromise any FULL-HD quality seen in our world renowned POV line-up. The Cube boasts a Sony Progressive CMOS sensor, which captures crispy 1080 60p video with ease over SRT, RTSP, RTMP, and of course – NDI|HX. Its interchangeable CS-mount design allows for the flexibility of CS/C mount lenses to capture that exact viewing angle you need. With the affordable price point, its no wonder the HD-NDI-CUBE is a production game-changer.The camera may look rectangular, but we can assure you it will square up to the competition.
Some of the notable features of the camera include the following below:
No-Hassle Integration
The HD-NDI-CUBE comes pre-equipped with its NDI|HX license. Never waste a moment!Simultaneous IP Streaming
Enjoy 1080 60p NDI|HX, SRT, RTSP, and RTMP simultaneous over one wire!Perfection in its Simplest Form
Sometime less is best! The backside of the camera is minimal, with a RJ45 output and 12VDC plugin for power.Full Control from a Distance
The HD-NDI-CUBE joins the workflow with its controllable Web UI, and VISCA over IP compatability.Any Lens, Any Time
The best part about the Cube is the unlimited possibilities of lens options. Whether it be a static lens, fixed lens, or adaptable lens, get creative with your shots anytime!PoE+ Adaptable
Each purchase of the HD-NDI-Cube comes with a PoE+ adapter, allowing you to run 1 cable for video, power and control!In the Box
- AIDA Imaging Compact Full HD NDI HX/IP Streaming POV Camera
- PoE Dongle Adapter
- 12 VDC Power Supply with Plug Adapter Kit
- USB Cable
- C-Mount Cap Adapter
- Sensor CapGeneral Specifications
Inputs / Outputs
USB 1 x Micro-USB Female Input
Protocol Support UDP, IP, RTSP, RTMP, SRT, NDI|HX
Sensor 1/3" Sony Progressive CMOS
Camera Control Protocol VISCA-over-IP
Sensor Size 5.346 x 3.003 mm
Aspect Ratio 16:9
Video Format
1080p: 60, 59.94, 50, 30, 29.97, 25, 24
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Color Space 10-Bit 4:2:2 (YCbCr)
Minimum Illumination
0.2 Lux (Day)
0.1 Lux (Night)
White Balance
Auto
9000 to 11,000K
Lens Mount C/CS
Focal Length 4mm (Included Lens)
Interface 1 x RJ45 Ethernet
Power
Power Source AC Input, PoE
DC Input Power 12 VDC
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Physical
Dimensions 3.4 x 1.6 x 1.6" / 86 x 40 x 40 mm
Weight 6.3 oz / 180 g
Packaging Info
Package Weight 1.435 lb/ 0.66kg
Box Dimensions (LxWxH) 10.1 x 5.1 x 4.1"/ 25.7cm x 13cm x 10.5cm
