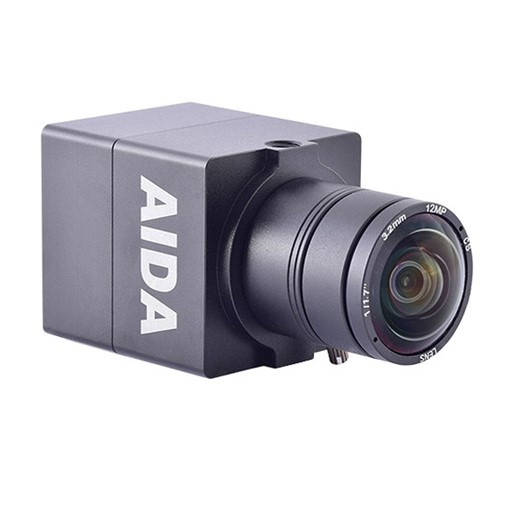

The HD-100A is AIDA’s staple camera. Simple, affordable, and versatile. The simplistic camera comes with a HDMI output, which displays up to Full-HD quality through its 1/3″ Sony Imaging Sensor. Just like all AIDA cameras, enjoy the versatility of interchangeable CS mount lensing, DC iris options, multitude of camera features, and RS485 control.
The HD-100A takes your vision, and brings it to life via the content you create, whether you’re capturing for education, faith, or social media. So what are you waiting for? Go explore your passion with this little guy!
Other features include the following:
Simple is best

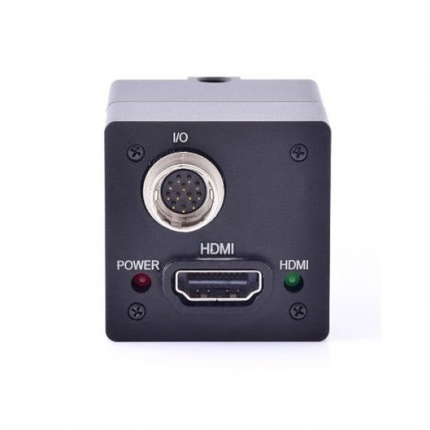

The HD-100A’s back interface is simple, I/O cable, DC IRIS port, and HDMI! PWR and HDMI indicators also help setup the camera quick and easy!Synced TRS Stereo Audio over HDMI
The HD-100A grants you the access of TRS Stereo Audio over the 3.5mm jack, giving your video perfectly synced audio every time.Adjustable AE, WB, and more
Long are the days of only being able to adjust the brightness on your webcam. Now are the days of adjustable auto-exposure, white balance, saturation, picture display, and much much more!User-Friendly OSD
Using the joystick on the back of the I/O cable allows easy access to the OSD of the HD-100A. From here, you can change anything you like! Take it up a notch using RS485 for control using our software!Adjustable CS/C Mount Lens
Lets face it, sometimes 4mm is just not enough to get the job done. With a native CS mount type mount, the HD-100A can utilize other HD lenses such as our CS6.0F, or CS-0550V.1/4"-20 Where You Need it Most
The HD-100A comes packed with two 1/4″-20 mounts, located precisely on the top and bottom of the camera. Its never been easier mounting the camera!In the Box
- AIDA Imaging Micro UHD 4K HDMI POV Camera with TRS Stereo Audio Input
- OSD Control Breakout Cable with Audio
- Power Adapter with 3 Universal Plug Adapters
- 3.2mm Lens
- Sensor Cap
- C-Mount Lens Adapter
- Hex Wrench
- Terminal Power ConnectorGeneral Specifications
Image Sensor 1/2.5" CMOS
Effective Pixels H x V: 3840 x 2160
Pixel Size 1.62 µm (H) x 1.62 µm (V)
Resolution
3840 x 2160: 30/29.97/25/24
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
Color Space 4:2:2 (YCbCr) 10-Bit
Audio Bit Rate 16/24/32-Bit
Connections
Video Output: 1 x HDMI 1.4 Type A
I/O: 1 x 4-Pin (Power and RS-485)
Auto-Iris: 1 x 4-Pin
Audio Input: 1 x 3.5mm TRS (Mic & Line via Breakout Cable)
Lens
Lens Mount: C/CS
Included: 3.2mm
Mount Type 2 x 1/4"-20 Threaded Holes
Power 12 VDC (9 to 15 VDC)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 1.54 x 1.54 x 1.99" / 3.9 x 3.9 x 5.05 cm
Weight 0.3 lb / 140 g
Packaging Info
Package Weight 1.37 lb/ 0.63kg
Box Dimensions (LxWxH) 11.2 x 6.9 x 2.7"/ 28.5cm x 17.6cm x 6.9cm
