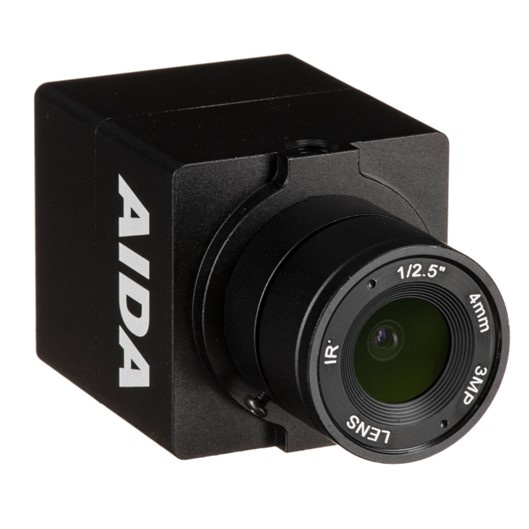

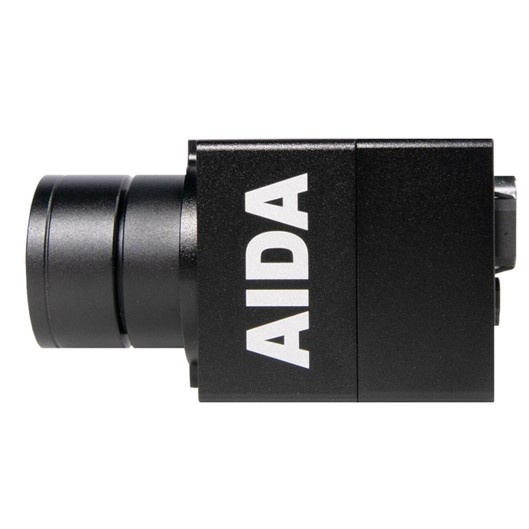

The AIDA Imaging HD-100A Full HD HDMI Camera with TRS Stereo Audio Input is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 1.5" wide by 1.5" tall and 3" deep, the camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car, or discretely in the corner of a surgical room. The camera captures HD at up to 60 fps, and it features a C/CS mount for mounting interchangeable lenses and includes a 4mm lens with iris control.
The camera has a sync connector that enables syncing up to the sync signal in a broadcast facility and an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line-level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as noise reduction, black-level adjustment, flicker detection as well as selecting the exposure mode. The camera body includes both power and HDMI indicators, allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top allow you options when mounting the camera.
Functions
The camera utilizes white balance and noise reduction while featuring a motion-compensated temporal noise reduction, while the WDR helps provide a clear image
Display Function
- Image Freeze
- Mirror/V-Flip
- Image Effect (Negative, Grey, Red 1-4, Blue 1-4, Green 1-4)
- Rotation
- Picture Style (off, Standard, Vivid, Clear, Vivid Clear, Neutral)
- Flicker DetectSync Input
The camera incorporates a sync input that enables the camera to seamlessly work in a broadcast environment
Privacy Zones
You can set privacy zones in the cameraIn the Box
AIDA Imaging Full HD HDMI Camera with TRS Stereo Audio Input
OSD Control Breakout Cable with Audio
Power Adapter with 3 Universal Plug Adapters
4mm Lens
Sensor Cap
C-Mount Lens Adapter
Hex WrenchGeneral Specifications
Image Sensor 1/3" CMOS
Effective Pixels H x V: 1920 x 1080
Pixel Size 2.75 µm (H) x 2.75 µm (V)
Resolution
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
Color Space 4:2:2 (YCbCr) 10-Bit
Min Illumination
Day: 0.2 Lux
Night: 0.1 Lux
Slow Shutter: 0.005 Lux
Audio Bit Rate 16/24/32-Bit

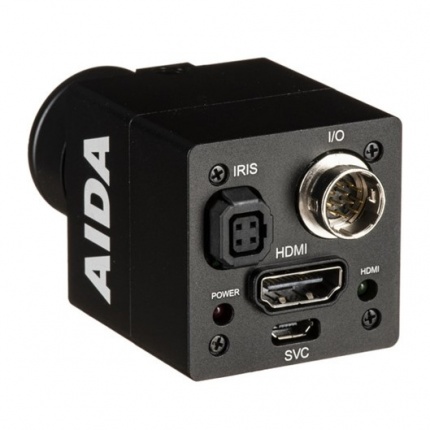

Connections
Video Output: 1 x HDMI 1.3a Type A
I/O: 1 x 4-Pin (Power and RS-485)
Auto-Iris: 1 x 4-Pin
Audio Input: 1 x 3.5mm TRS (Mic & Line via Breakout Cable)
Lens
Lens Mount: C/CS
Included: 4mm
Mount Type 2 x 1/4"-20 Threaded Hole
Power 6 W at 12 VDC (9 to 15 VDC)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 1.53 x 1.53 x 1.99" / 3.9 x 3.9 x 5.05 cm
Weight
0.3 lb / 140 g (Camera Only)
6.35 oz / 180 g (Camera and Lens)
Packaging Info
Package Weight 1.35 lb/ 0.62kg
Box Dimensions (LxWxH) 12 x 11 x 2"/ 30.5cm x 28cm x 5.1cm
