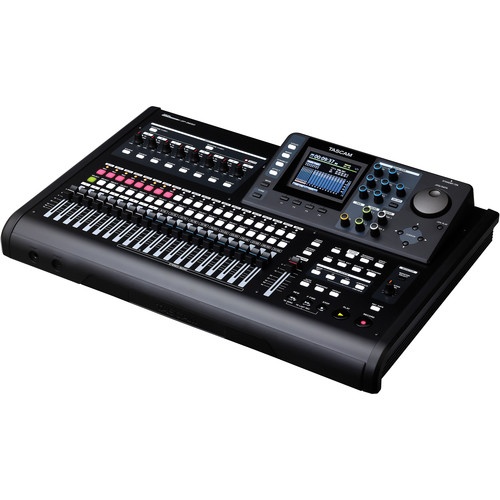

32-track Digital Portastudio
DP-32SD
Record up to 32 Tracks on TASCAM’s award-winning Portastudio without turning on a computer.The TASCAM DP-32SD Digital Portastudio records 32 tracks to solid-state drive, with up to eight track simultaneous recording via XLR and 1⁄4” combo jacks. Input processing includes compression and limiting, as well as guitar amp simulation and multi-effects for use with the instrument-level input. The color display and channel strip knobs make mixing fast and creative, and the included 4GB SD card can be replaced with up to 32GB SDHC media or swapped with other cards between projects for up to 50 hours of music.
Record your entire band with 8 track simultaneous recording

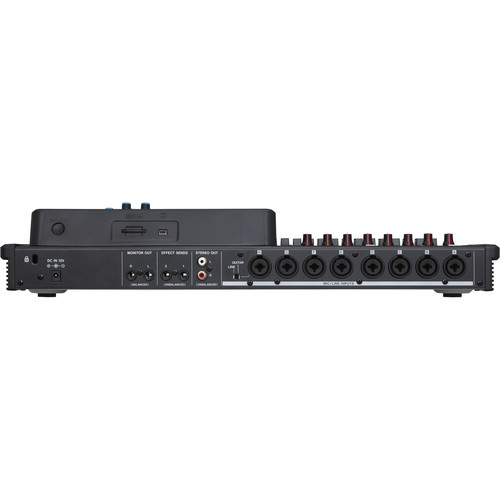

The DP-32SD has 8 XLR-TRS combo inputs that can withstand multi-microphone recording with drums.
Phantom power supply is also possible, with the INPUT H compatible with direct guitar inputs.
With dynamic effects, which are indispensable for high-quality recording, up to 8 effects can be used for each input.
In addition, the DP-32SD comes with built-in guitar multi-effects, tuner, and metronome, allowing users to complete recording preparations with this device alone.The most intuitive recording workstation ever lets you focus on capturing your best performance.
You don’t need a PHD in studio recording to sound like a pro with the TASCAM DP-32DS Portastudio. We put everything you need at your fingertips so you can see and control everything that’s happening.Full-color LCD screens and self-illuminated buttons visually communicate the recording process, and everything from level setting, compression, and limiting happens with sturdy sliders, buttons, and knobs.
The TASCAM DP-32DS’s intuitive design allows you to quickly dive deeper into any setting without distracting you from your creative session

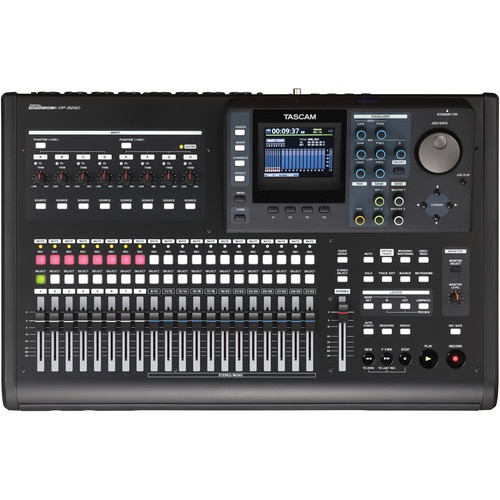

Control Everything
With 20 track-faders and one master fader, you’ll always have ample access to what you need for your recording and mixing.
Solid State Storage for No Moving Parts
The DP-32SD uses SD/SDHC media to ensure secure shock resistance as stores files as FAT 16 or 32 format. You can also transfer the recorded files
The headphone amplifier has a high output power of 70mW/ch
The headphone amplifier provides easy monitoring in loud environments such as a rehearsal studio or live performance.
In the Box:
Tascam DP-32SD 32-Track Digital Portastudio
Power Adapter
2 GB SD Card
USB CableRecording Media SD (512MB to 2GB) / SDHC card (4GB to 32GB)
File System SD card: FAT16 / SDHC card: FAT32
INPUT A-H
XLR
Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD), Balanced
Input impedance 2.4kΩ
Nominal input level –14dBu
Maximum input level +2dBu
TRS
Connector 1/4" (6.3mm)TRS phone-jack, Balanced
Input impedance 22kΩ or more / 1MΩ (when INPUT H, GUITAR selected)
Nominal input level +4dBu
Maximum input level +20dBu
STEREO OUT
Connector RCA pin-jack, Unbalanced
Output impedance 200Ω
Nominal output level –10dBV
Maximum output level +6dBV
EFFECT SENDS
Connector 1/4" (6.3mm) TS phone-jack, Unbalanced
Output impedance 200Ω
Nominal output level –10dBV
Maximum output level +6dBV
MONITOR OUT
Connector 1/4" (6.3mm) TRS phone-jack, Balanced
Output impedance 200Ω
Nominal output level –2dBu
Maximum output level +14dBu
PHONES
Connector 1/4" (6.3mm) TRS phone-jack
Maximum output level 70mW + 70mW (THD+N 0.1% or less, 32Ω loaded)
USB
Connector USB Mini-B type 4-pin
Format USB2.0 High-Speed mass-storage class
REMOTE
Connector 2.5mm TRS jack
Power Dedicated AC adapter (PS-1220E or GPE248-120200-Z, included)
Power consumption 12W (when phantom power supplying)
Dimensions (W×H×D) 20.2" × 4.1" × 13.4" / 514 × 104 × 340 mm
Weight 13.67 lbs. / 6.2 kg
Operating temperature 41˚F to 95˚F / 5 ˚C to 35˚C
Accessories AC adapter, 4GB SD card, warranty card, owner's manual
