Bose Professional Freespace FS2P Pendant-Mount Loudspeaker - Pair (White)

SINGLE LOUDSPEAKER PERFORMANCE:
Frequency Response (-3 dB) (1) 95 – 16,000 Hz
Frequency Range (-10 dB) (1) 83 – 19,000 Hz
Nominal Coverage Angle (1 - 4 kHz) 140°
Nominal Coverage (1 – 10 kHz) 130°
AES transducer test (5) Bose extended-lifecycle test (4)
Power Handling, Long-term Continuous 20 W 16 W
Power Handling, Peak 80 W 64 W
Sensitivity SPL/1W @ 1 m (2) 87 dB 87 dB
Calculated Maximum SPL @ 1 m (3) 100 dB 99 dB
Calculated Maximum SPL @ 1 m, Peak 106 dB 105 dB
Loudspeaker EQ
No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass available. EN54-24 Equalization is required for EN54-24 use; refer to FS2P EN54-24 Certified ratings
document on pro.bose.com for details.
Recommended High-Pass Protection 85 Hz with minimum 24-dB/octave filter
Transformer taps 70V: 1, 2, 4, 8, 16 W, bypass
100V: 2, 4, 8, 16 W, bypass

TRANSDUCERS:
Full-Range Driver 1 × 2.25-inch woofer (57 mm)
Nominal Impedance 16 ohms (transformer bypass)
PRO.BOSE.COM 1 OF 4
Key Features
Maintain consistent tonal quality with shared voicing across all FS models
Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for
background music
Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-andmatch installations. DesignMax subwoofers and larger models can expand your system design options even further
Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with
practical features, including removable logos
Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications
and mounting options
Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
Support public safety — EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings.
UL 1480 UUMW listed for use in fire alarm and signaling systems in life safety applications
Stylish pendant enclosure with single-point suspension, perfect for open-ceiling applications or any installation requiring the
Product Overview
FreeSpace FS loudspeakers are the next step of our widely
trusted line of in-ceiling and surface-mount loudspeakers,
offering significant upgrades in durability, design, and ease
of installation — all with remarkably consistent tonality.
Engineered for high-quality performance in both background
music and voice announcement applications, FS loudspeakers
are ideal for almost any commercial space. The line includes
five loudspeakers, two distinct levels of sound, new mounting
options, and a modern aesthetic to match. For those seeking
consistent, quality installed sound, FreeSpace FS loudspeakers
are the perfect mix of performance and value.

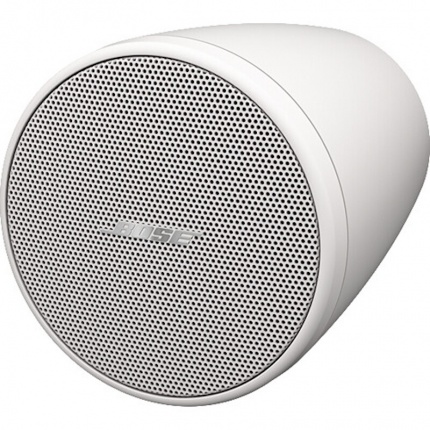

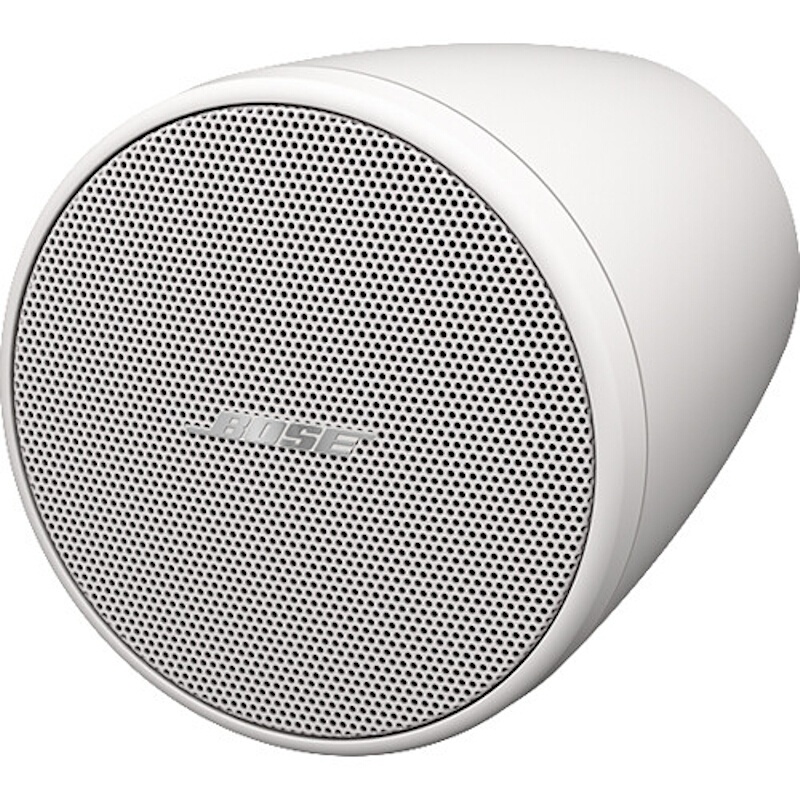

The FS2P is a dedicated pendant model with a full-range 2.25-
inch transducer, low frequency range down to 83 Hz, and
sensitivity of 87 dB SPL / 1W @ 1m.
Footnotes
(1) Frequency response and range measured on-axis in whole-space environment with recommended EQ
(2) Sensitivity measured on-axis in whole-space environment averaged 100 Hz – 10 kHz using recommended high-pass protection
(3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
(4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
(5) AES standard 2-hour duration with IEC system noise
(6) Measured in whole-space environment
PRO.BOSE.COM 2 OF 4
FreeSpace FS2P
pendant loudspeaker

PHYSICAL:
Enclosure Material Engineered plastics
Grille Perforated steel, powder-coated finish
Logo Removable
Color Black (similar to Ral 9005), White (similar to Ral 9003)
Environmental Indoor only
Safety Agency Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for
Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1
Section 32.
For EN54-24 specifications, Refer to FS2P EN 54-24 Certified Ratings document on pro.bose.com.
EN54-24 Equilization required for EN54-24 use.
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Connectors Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14
AWG (2.5 mm2) size wire. Includes input cover.
Suspension/Mounting Each FS2P has one (1) suspension attachment point and one (1) safety cable attachment point
Included is one (1) 4.5 m (15 ft) adjustable pendant suspension cable
Product Dimensions (Enclosure Diameter × Depth) 149 × 183 mm (5.9 × 7.2 in)
Product Dimensions with Suspension Cable
Attachment Point (Enclosure Diameter × Depth)
149 × 215 mm (5.9 × 8.5 in)
Net Weight, Loudspeaker with Grille (Single) 1.47 kg (3.25 lb)
Shipping Weight (Pair) 4.06 kg (8.95 lb)
Included Accessories Each FS2P includes one (1) 4.5 m (15 ft) adjustable pendant suspension cable,
four (4) cable ties, one (1) input cover and one (1) safety cable attachment
Optional Accessories Pendant Suspension Cable kit (2-pack), Ceramic Terminal and Thermal Fuse Kit (10-pack)
