A perfect music sketch pad with built-In microphones for multi-track recording anytime, anywhere
Song ideas can happen anywhere. With the TASCAM DP-006, you'll be ready. Jot down ideas for your songs using this professional sounding multi-track recorders. For extra battery life, you can add TASCAM's BP-6AA external battery pack.
A user interface that enables intuitive operation similar to cassette MTR
Easy to operate, just like a cassette MRT, with recording preparation achievable in just two steps after turning the device on. A high-quality microphone is already built-in, so there is no need for an external mic.Each track has a designated knob so that users can intuitively operate each track without having to rely on the screen. SD/SDHC cards are used for recording media, allowing data to be transferred to the computer via USB.
A multi-recorder that anyone can use to easily record their song ideas
Adding the DP-006 to your production setup will increase the scope of your music production infinitely. The music sketchpad can easily accumulate ideas and will capture that melody line as it pops into your head, all in high audio quality, further enhancing your music production.
Recording media - SD card (512MB to 2GB), SDHC card (4GB to 32GB)
File system -TASCAM original (MTR partition), FAT32 (FAT partition)

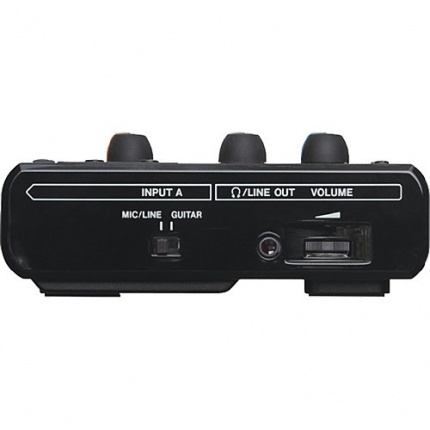

INPUT A/B
1/4" TS-jack
Connectors- 1/4" (6.3mm) TS-jack, UNBALANCED
Input impedance- 10kΩ or more (INPUT A: MIC/LINE), 1MΩ(INPUT A: GUITAR)
Nominal input level- –10dBV
Maximum input level +6dBV
Headroom 16dB

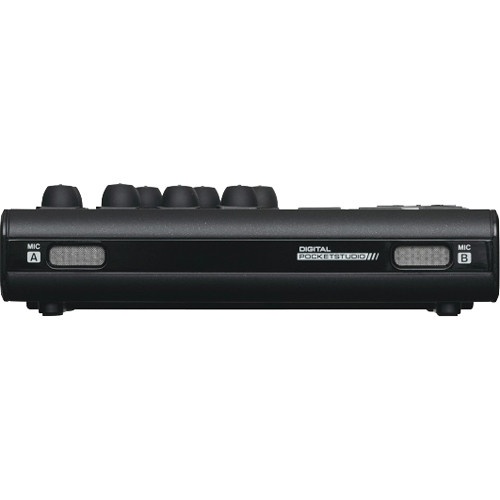

Built-in microphones Omni-directional condenser microphone × 2
LINE OUT
Connectors 1/8" (3.5mm) stereo mini jack
Nominal output level –16dBV
Maximum output level 0dBV
PHONES
Connectors 1/8" (3.5mm) stereo mini jack
Maximum output level 15mW + 15mW (THD+N less than 0.1%, 32Ω loaded)

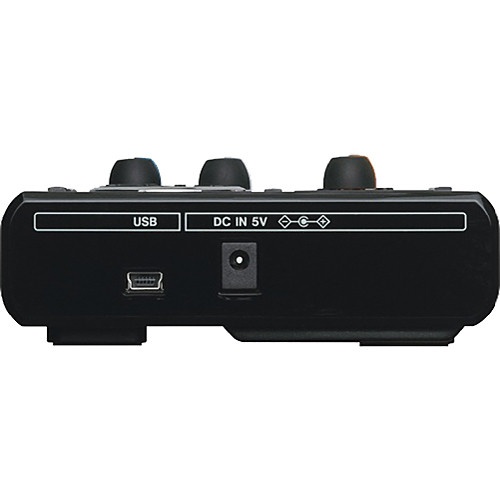

USB
Connectors USB Mini-B type 4-pin
Format USB2.0 HIGH SPEED mass storage class
Continuous battery operation time *All times are approximate.
Alkaline battery (EVOLTA)- 8 hours (using line input/recording)
- 8.5 hours (using headphone/playback)
Nickel-metal battery (eneloop)
- 9 hours (using line input/recording)
- 9.5 hours (using headphone/playback)
Power
- Four AA batteries (Alkaline or nickel-metal battery)
- AC adapter (TASCAM PS-P520, sold separately)
Power consumption -1W (Maximum)
Dimensions (W×H×D) 6.1" × 1.6" × 4.2" / 155 × 41.5 × 107 mm
Weight -12.7 oz. / 360 g (excluding batteries)
Operating temperature- 41˚F to 95˚F / 5˚C to 35˚C
Backup memory - In the PREFERENCE, contents of "Repeat Int", "Auto Pwr Save" and "Contrast"
Accessories - 4GB SD card, AA battery × 4, USB cable (31.5" / 80cm), Warranty card, Owner's manualAudio performance
Frequency response - 20Hz to 20kHz (+1/–3dB, INPUT (MIC/LINE) to LINE OUT)
Distortion - Less than 0.05% (INPUT (LINE) to LINE OUT)
S/N ratio - More than 81dB (INPUT (MIC/LINE) to LINE OUT)
