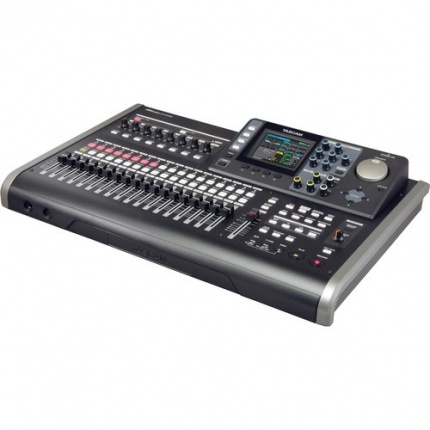

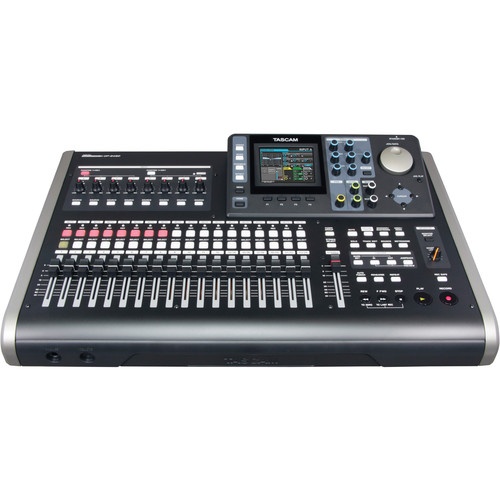

Tascam DP-24SD 24-Track Digital Portastudio

S$ 818.00
(S$ 818.00 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • Record, Mix, and Master in a Single Workstation
  • 24 Recording Tracks with 8 Track Simultaneous Recording
  • Intuitive for Players, Powerful enough for Pro Engineers
  • Onboard EQ, Effects, and Processors for Ultimate Sound Design
  • Record Hundreds of Hours of Music on a Single SD Card.
Show moreShow less
  • DP-24SD
    Record up to 24 Tracks on TASCAM's award-winning Portastudio without turning on a computer.

    The TASCAM DP-24SD Digital Portastudio records 24 tracks to solid-state drive, with up to eight track simultaneous recording via XLR and 1/4" combo jacks. Input processing includes compression and limiting, as well as guitar amp simulation and multi-effects for use with the instrument-level input. The color display and channel strip knobs make mixing fast and creative, and the included 4GB SD card can be replaced with up to 32GB SDHC media or swapped with other cards between projects for up to 50 hours of music.

    Record your entire band with 8 track simultaneous recording
    The DP-24SD has 8 XLR-TRS combo inputs that can withstand multi-microphone recording with drums.
    Phantom power supply is also possible, with the INPUT H compatible with direct guitar inputs.
    With dynamic effects, which are indispensable for high-quality recording, up to 8 effects can be used for each input.
    In addition, the DP-24SD comes with built-in guitar multi-effects, tuner, and metronome, allowing users to complete recording preparations with this device alone.

    The most intuitive recording workstation ever lets you focus on capturing your best performance.
    You don't need a PHD in studio recording to sound like a pro with the TASCAM DP-24DS Portastudio. We put everything you need at your fingertips so you can see and control everything that's happening.
    Full-color LCD screens and self-illuminated buttons visually communicate the recording process, and everything from level setting, compression, and limiting happens with sturdy sliders, buttons, and knobs.
    The TASCAM DP-24DS's intuitive design allows you to quickly dive deeper into any setting without distracting you from your creative session

    Control Everything
    With 19 track-faders and one master fader, you'll always have ample access to what you need for your recording and mixing.

    Solid State Storage for No Moving Parts
    The DP-24SD uses SD/SDHC media to ensure secure shock resistance as stores files as FAT 16 or 32 format. You can also transfer the recorded files



    In the Box:

    Tascam DP-24SD 24-Track Digital Portastudio
    Power Adapter
    2 GB SD Card
    USB Cable

  • Recording Media SD (512MB to 2GB) / SDHC card (4GB to 32GB)
    File System SD card: FAT16 / SDHC card: FAT32

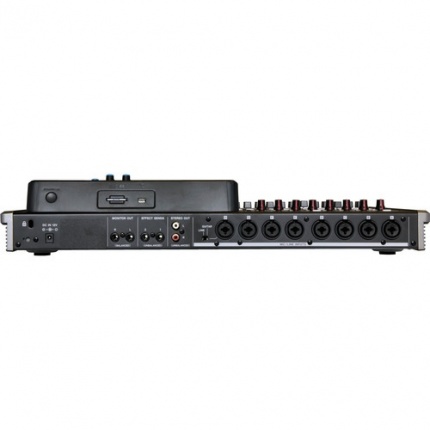

    INPUT A-H
    XLR
    Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD), Balanced
    Input impedance 2.4kΩ
    Nominal input level -14dBu
    Maximum input level +2dBu


    TRS
    Connector 1/4" (6.3mm) TRS phone jack, Balanced
    Input impedance 22kΩ or more / 1MΩ (when INPUT H, GUITAR selected)
    Nominal input level +4dBu
    Maximum input level +20dBu


    STEREO OUT
    Connector RCA pin-jack, Unbalanced
    Output impedance 200Ω
    Nominal output level -10dBV
    Maximum output level +6dBV


    EFFECT SENDS
    Connector 1/4" (6.3mm) TS phone jack, Unbalanced
    Output impedance 200Ω
    Nominal output level -10dBV
    Maximum output level +6dBV


    MONITOR OUT
    Connector 1/4" (6.3mm) TRS phone jack, Balanced
    Output impedance 200Ω
    Nominal output level -2dBu
    Maximum output level +14dBu


    PHONES
    Connector 1/4" (6.3mm) stereo phone jack
    Maximum output level 70mW + 70mW (THD+N 0.1% or less, 32Ω loaded)


    USB
    Connector USB Mini-B type 4-pin
    Format USB2.0 High-Speed mass-storage class


    REMOTE
    Connector 2.5mm TRS jack
    Power Dedicated AC adapter (PS-1220E or GPE248-120200-Z, included)
    Power consumption 12W (when phantom power supplying)
    Dimensions (W×H×D) 20.2" × 4.1" × 13.4" / 514 × 100.4 × 336.9 mm
    Weight 13.67 lbs. / 6.2 kg
    Accessories AC adapter, 4GB SD card, warranty card, owner's manual
