DSP CONTROL PANEL WITH ENCODER AND OLED DISPLAY

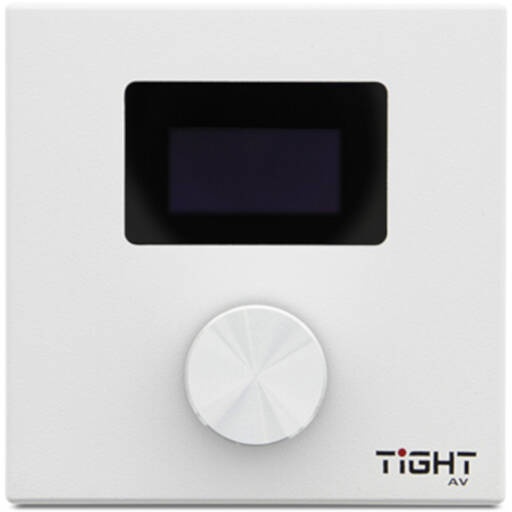

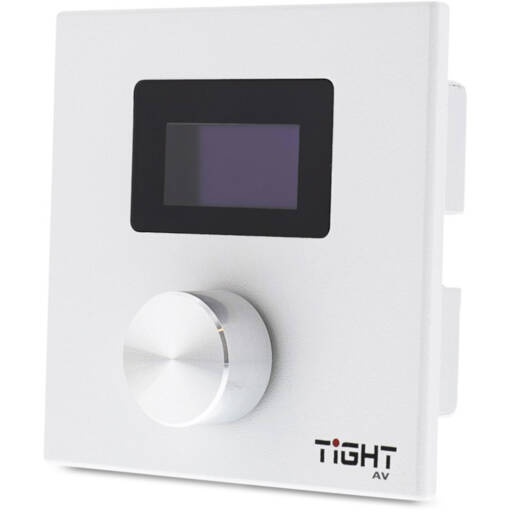

The ACP-ENC-OLED is a programmable control panel for the TiGHT AV DSP units. It consists of a rotary encoder with push-to-select operation, providing the end user with hands-on access to parameters such as gain, mute, preset recall and commands. The ACP-ENC-OLED follows the EU form factor, building only 30mm in depth. Power is supplied via PoE. A programmable control panel with encoder and OLED display, for use with the 10x10 DSP Dante.
Programming Features:
Channel gain: Yes
Channel mute: Yes
Commands: Yes
Preset recall: Yes
Matrix: YesGeneral
Screen: OLED
Screen size: 29.5 mm x 14.5 mm
Button: Rotary Encoder with Push to Select
Connection: Ethernet on RJ45 connector
Power consumption: 100 mW (Max)
Power: POE 802.3af

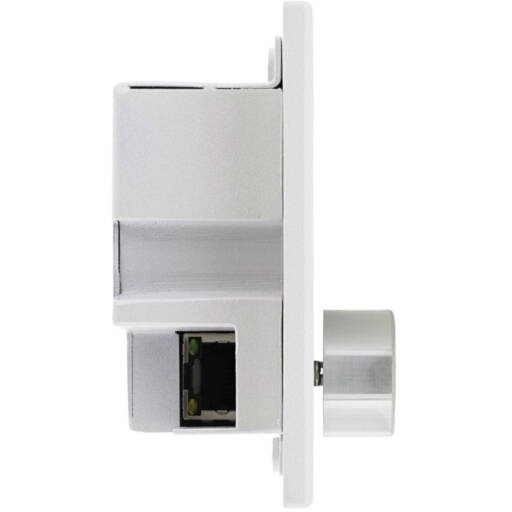

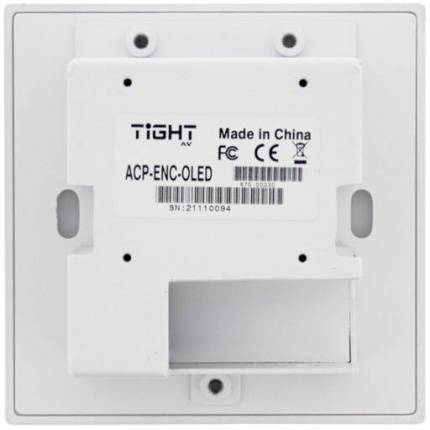

Mounting dimensions backside: 62 mm × 57 mm × 30 mm (H x W x D)
Front plate dimensions: 86 mm x 86 mm
Mounting screw holes distance: 60 mm
Color: White Front Plate with Silver Rotary Encoder
Operating temprature: 0 - 40°C
Shipping weight: 0.4 kg
Compliance: FCC,CE
Environmental: RoHs, WEEE
