Tascam Model 12 Integrated Production Suite Mixer/Recorder/USB Interface

S$ 978.60
(S$ 978.60 excl GST)

Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable

Please select your add-on:

Tascam CS-MODEL12 Carry bag for Tascam Model 12

Add to cart Add to wishlist

What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

A compact all-in-one integrated mixer

Key Features:

MIDI I/O, Metronome, and Click Output
10 x Input Channels (8 Mic Preamps)
10 x Line Inputs (6 Mono + 2 Stereo)
Single-Knob Compressor
2 x Aux Sends + Built-In Multi-FX
Mix-Minus for Echo-Free Podcasts/Radio
12-Track Recorder and Playback
External DAW Control - HUI/MCU Protocols
USB Audio Interface (12-In x 10-Out)
Wireless Bluetooth Connectivity

Show more Show less

12-Track Multi-Track Recording with 10 Track Playback
The Model 12's intuitive internal 12-track recorder records WAV files of up to 24-bit/48 kHz audio quality directly to an SD card, with 10-track playback. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported directly into a DAW for further editing or production.
12 in / 10 Out USB Audio Interface for DAW Connectivity
An onboard USB Type-C connector facilitates connecting a computer to the Model 12 for playback and recording utilizing a wide range of popular DAW's.
DAW Control Integration
Basic external DAW control (Faders, Mutes, Pans, Solos, Record arm, Play, Record, Stop, FF/Rew, Jog) using HUI/MCU protocol emulation is integrated for tactile control of most major DAW's.
* DAW control operation confirmed DAW software:
- Avid Pro Tools
- Apple Logic Pro
- MOTU Digital Performer
- Steinberg Cubase
- Ableton Live
- Cakewalk by BandLab
- Presonus Studio One (Added in V1.30)
- Cockos REAPER (Added in V1.30)
- Steinberg Cubasis 3.3 (Added in V1.30)
Click Output with TAP TEMPO
A dedicated click output with TAP TEMPO allows the tempo to be monitored in both live or recording environments. This allows live performers to play with tracks using the built-in multi-track engine or music creators to monitor the tempo when recording.
Seamless loop playback with the VAMP Playback function (Added in V1.11)
The VAMP Playback function gives a seamless loop playback between two selected points in a song, enabling interactive live playback for extended solos/jams, and repeated playback of selected track only. It can be also used for personal practice and band rehearsals to enhance the user's performance.
Onboard MIDI Functionality
Standard MIDI in/out connectors allow connection with a wide range of keyboards, drum machines, controllers, and other sources that employ MIDI connectors. The Model 12 can also be used for synchronized operation of multi-track recorders and other external devices like drum machines.
Podcast Your Latest Music and Live Performances to Your Fan Base
The Model 12 incorporates several features for podcasting and internet streaming like mix-minus, smartphone input, multiple mic-ready channels, Bluetooth pairing, dual headphone monitoring, and internal multi-track recording. Use the Model 12 as a versatile live production recorder, USB audio interface and live streaming tool.
* Operation confirmed with the following streaming and telecommunications software:
- Skype
- Discord
- OBS (Added in V1.11)
Output Delay for Synchronized Audio/Video Streaming (Added in V1.20)
The output delay creates stable sync between streamed audio and video for all networks and video systems. The easy set-up enables dual Audio Delay for both the USB and Main outputs (Main output can be selected On/Off). In addition, you can monitor the output delay signal by headphones if you choose Main output On. Delay time: 0 - 2,000ms (1ms step)
All in One Production From Recording to Mastering

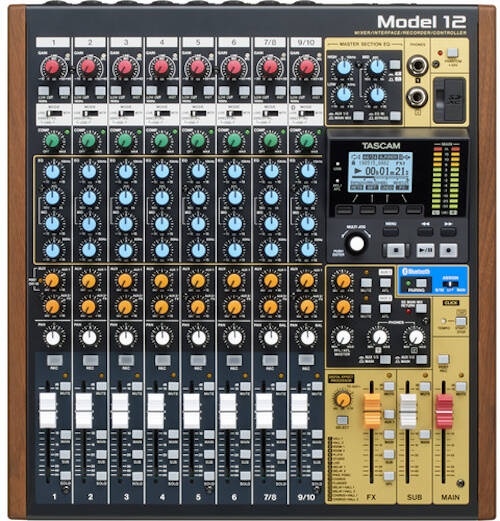

The Model 12's seamless integrated workflow facilitates less focus on the technical and more on the creative. The comfortable, familiar feel of the Model 12's 60mm faders and 1-knob compressor, 3-band EQ, and TASCAM's high-quality reverb effects allow fast tweaking of mixes and tones.
Pristine Audio Quality
TASCAM's Ultra HDDA (High Definition Discrete Architecture) mic preamps with EIN (Equivalent Input Noise) of -128dB ensure natural low noise and high-grade sound quality. Additionally, Hi-Z line level inputs are included on all channels for direct instrument input.
Compact Size with Plenty of Inputs

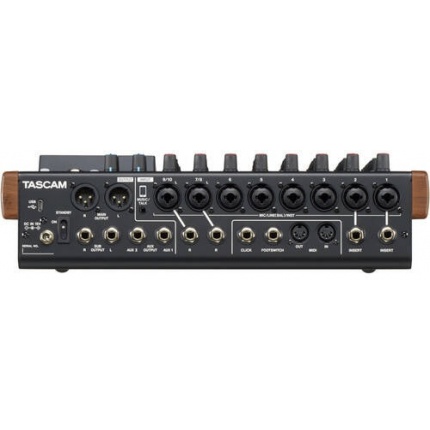

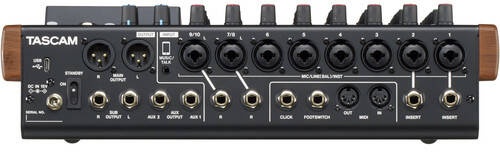

The compact Model 12 packs 8 XLR mic inputs (with +48V support), 10 TRS line inputs, a 3.5mm (1/8") TRRS input (for Smartphone) and Bluetooth 5.0 input to handle any small format recording or live production environment.
Versatile Routing for Perfecting Your Mix
Selectable PFL/AFL modes and solo in place (SIP) allow for flexible monitoring of individual channels, eliminating the need to mute each single channel when dialing in the perfect mix.
Dual Headphone Monitor
Top-panel accessible dual headphone jacks allow monitoring of two discrete headphone mixes simultaneously for performers and engineers alike.

Specifications

RECORDING SECTION

Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB)Class 10 or higher required.
File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording: File FormatWAV(BWF)
Playback: FormatWAV, BWF
Sampling Frequency:44.1k / 48k Hz
Bit Depth:16 / 24 bit
Maximum Recordable ChannelNumber: 12ch (10ch + 2 stereo mix)

ADUIO INPUTS

MIC IN: CH1 to 6, 7, 9
Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Input Level: +10dBu
Nominal Input Level :-8dBu
Minimum Input Level: -58dBu
Gain Adjustable Range:0 to 50dB
Input Impedance: 1.8k ohm
Phantom Power supply:+48V

LINE INCH: 1 to 6, 7/8, 9/10
Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7/8 and 9/10
Input Impedance: 22k ohm

INST INCH: 1 to 6, 7, 9
Connector: 1/4" (6.3mm) TS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
Maximum Input Level: +13.8dBV
Nominal Input Level: -4.2dBV
Gain Adjustable Range: -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7 and 9)
Input Impedance: 1M ohm

INSERTCH: 1 and 2
Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
Return (Ring)
Maximum Input Level: +18dBu
Nominal Input Level: 0dBu
Input Impedance: 5k ohm
Send (Tip)
Maximum Output Level: +18dBu
Nominal Output Level: 0dBu
Output Impedance: 100 ohm

MUSIC/TALK: CH 9/10
Connector: 1/8" (3.5mm) TRRS jack (for Smartphone, Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k ohm

OUTPUTS

MAIN OUTPUT
Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Output Level: +22dBu
Nominal Output Level: +4dBu
Output Impedance: 200 ohm

SUB OUT, AUX OUT
Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Output Level: +16dBu
Nominal Output Level: -2dBu
Output Impedance: 200 ohm

PHONES OUT: PHONES 1 and 2
Connector: 1/4" (6.3mm) Stereo Phone jack
Maximum Output Level: 45mW + 45mW (32 ohm loaded)

CONTROL INPUT / OUTPUT

USB
Connector: USB Type-C
Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class

CLICK
Metronome click
Connector: 1/4" (6.3mm) TS Phone jack

FOOTSWITCH
Compatible with TASCAM RC-1F Foot Switch
Connector: 1/4" (6.3mm) TRS Phone jack

MIDI OUT
Connector: 5-pin DIN
Format: standardMIDI

MIDI IN
Connector: 5-pin DIN
Format: standard MIDI

USB AUDIO

Sampling Rate: 44.1k / 48k Hz
Bit Depth: 16 / 24 bit
Maximum INPUT: 12ch
Maximum OUTPUT: 10ch

Bluetooth®: to MAIN or CH 9/10
Version: 5.0
Output Class: Class 2 (Transmission range: approx. 33 ft. / 10 m)* Transmission range may vary, depending on surroundings.
Supported Profile: A2DP
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T

Channel EQ
Low-Cut: 100Hz, -18dB / Octave
Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
Mid-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, MID Band Q Fix, 0.5
Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz

Master section EQ
Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
MID-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5
Low-Shelving: +15dB / -15dB, Cut off frequency = 60Hz

Internal Effects

Type
HALL 1HALL 2ROOM 1ROOM 2PLATESTUDIOLIVEDELAY 1DELAY 2PING PONGCHORUSFLANGERDELAY + HALL 1DELAY + HALL 2CHORUS + HALL 1CHORUS + HALL 2
*Fx type and settings can be stored in the library slot

Power
AC 100 to 240V, 50/60Hz

Power Consumption
16W

AUDIO PERFORMANCE

Frequency Response: 20Hz to 20kHz (+0.3/-0.7 dB, MIC IN to MAIN OUT)
S/N ratio: 103dB (MAIN OUT, MAIN fader: nominal position)
Equivalent Input Noise: -128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Total Harmonic Distortion: 0.003% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.)
Crosstalk: -95dB, channels / input and output(1kHz, PAN fully counter clockwise / fully clockwise)
Maximum Gain:

74dB (MIC to MAIN OUT)
54dB (MIC to INSERT OUT)
74dB (MIC to SUB OUT)
75dB (MIC to AUX 1/2 OUT)
24dB (USB/SD to MAIN OUT)
(EQ flatten, PAN fully counter clockwise / fully clockwise)
