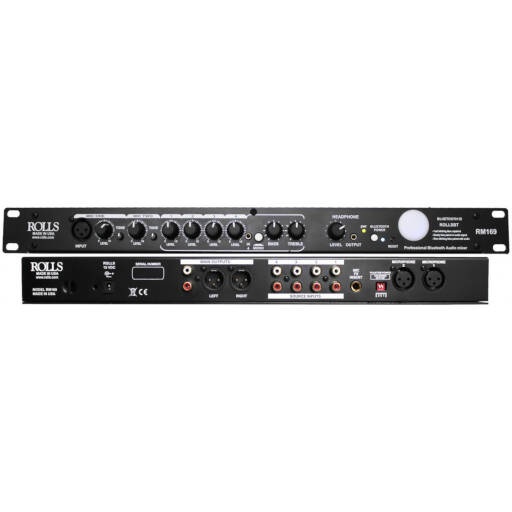

The RM169 is a six channel Professional audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.
Features
- Two XLR Microphone Inputs (including a paralleled front panel input).
- Individually switchable phantom power.
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm.
- 1/4" TRS Mic Insert jack.
- Stereo RCA and XLR Outputs.
- Headphone output on front panel with volume control.
- Level control for Bluetooth input signal.
In the Box
- Rolls RM169 Professional Bluetooth Audio Mixer
- Power AdapterSPECIFICATIONS
Input Impedance:
- Mic: 600 Ohms XLR balanced
- Source: 22K Ohms RCA
Mic Insert: 22K Ohms 1/4” TRS insert
Max Input Level:
- Mic: -14 dBV Mic level
- Source: 24 dBV
Current drain: 100ma 15vdc
Headphone Output Impedance: >8 Ohms
Total - In/Out Connectors: 5: XLR, 5: Stereo RCA, 1: 1/4” TRS, 2: 3.5mm
Phantom Power: +15 VDC
Output Level: +17 dBV max
Output Impedance: 100 Ohms Balanced
Max Gain:
- Mic: 60 dB
- Source: 26 dB
Tone Controls: +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble
Noise Floor: - 80 dB, THD: .025%
S/N Ratio: 96 dB
Size: 19” x 1.75” x 4” (48.3 x 4.5 x 10 cm)
Weight: 5 lbs. (2.3 kg)
