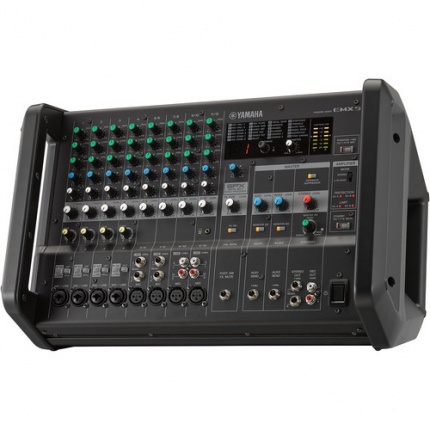

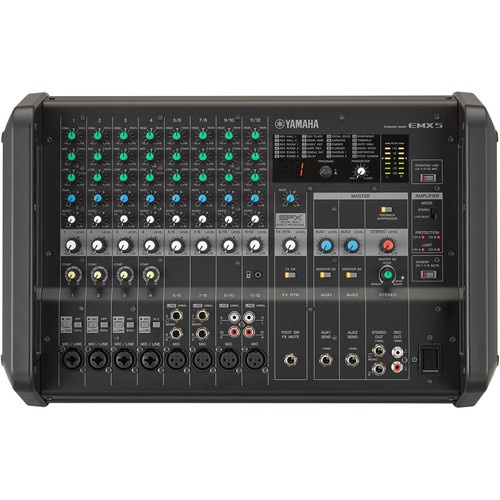

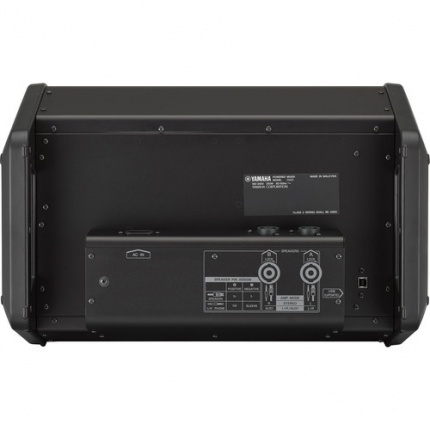

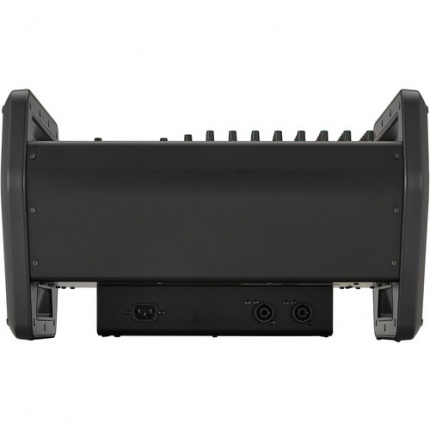

Yamaha EMX 5 12-Input Powered Mixer

The Yamaha EMX 5 is a 12-input powered mixer with an integrated 1260W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.
The EMX 5 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX 5 ships with a standard IEC power cord.
- 1260-watt power amplifier for versatility in a wide variety of performance applications
- Compatible with 4 Ohm and 8 Ohm speakers
- 12-channel mixer with four mono mic/line and four mono/stereo line input channels, supporting a wide range of inputs
- Channels 1-4 offer a single knob compressor
- Channels 1-3 offer an 80 Hz high-pass filter to reduce microphone rumble
- Channel 4 offers a Hi-Z input for guitar
- Two Aux sends via balanced 1/4" outputs. Aux 2 also sends to internal effects engine
- Yamaha’s high-quality SPX multi-effects, providing optimum processing for instruments or vocals
- Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
- Independent three-band equalizer on each channel for tonal adjustment and sound control
- Master EQ with setting for speech and music playback
- Stereo Output: Two balanced 1/4" outputs for connecting to powered speakers or an additional amplifier
- Recording Output: Stereo RCA for connecting to a recorder
In the Box:
Yamaha EMX 5 12-Input Powered Mixer
AC Power Cord

Specifications

Analog Input Characteristics

Input Connectors

Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm
Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm
Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm
Channels 9/10: 1x XLR, 2x RCA
Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack

Load Impedance

Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms lineChannel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal
Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal

Input Level

Sensitivity

Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV)
Channel 1-4 (1/4", Line): -20 dBu (77.5 mV)
Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
Channels 5-12 (XLR): -60 dBu (0.775 mV)Channels 5-8 (1/4"): -20 dBu (77.5 mV)
Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV)

Nominal

Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
Channel 1-4 (XLR, Line): -13 dBu (173 mV)
Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV)Channel 1-4 (1/4", Line): -3 dBu (548 mV)
Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
Channels 5-12 (XLR): -43 dBu (5.48 mV)
Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV)

Maximum Before Clip

Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
Channel 1-4 (1/4", Mic): -5 dBu (436 mV)
Channel 1-4 (1/4", Line): +25 dBu (13.8 V)
Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
Channels 5-12 (XLR): -15 dBu (138 mV)
Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V)

Analog Output Characteristic

Output Connectors

Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced
Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced
Rec Out (L/R): 2x RCA unbalanced

Impedance

Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines

Output Level

Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping

Loudspeaker Outputs

Connectors

Speakers A/B: Neutrik speakON NL4, 1/4" / 6.35 mm phone jack

Impedance

Actual Source Impedance: 0.1 OhmsFor Use with Nominal: 4 Ohm speakers, 8 Ohm speakers

Output Level

4 Ohm Speakers: 500 W (1 Hz THD+N 1%), 630 W (1 kHz THD+N 10% [CEA2006])
8 Ohm Speakers: 370 W (1 Hz THD+N 1%), 460 W (1 kHz THD+N 10% [CEA2006])

General Specifications

Output Power

1 kHz THD+N 10% (CEA2006): 630 W + 630 W (4 Ohms), 460 W + 460 W (8 Ohms)
1 kHz THD+N 1%: 500 W + 500 W (4 Ohms), 370 W + 370 W (8 Ohms)

Frequency Response

Frequency Response Refer to the nominal output level @ 1 kHzInput to Speakers: +1/-3 dB (40 Hz to 20 kHz)

Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz)

THD + N

Input to Speakers: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz)
Input to Stereo Out, Aux 1/2 Send: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz)

Crosstalk

(1 kHz): -85 dB

Input Channels

Mono (Mic/Line): 8

Stereo: (Line): 4

Total: 12

Output Channels

Speakers: A/B
Aux 1 Send
Aux 2 Send
Stereo Out: L/R
Rec Out: L/R

Bus

Stereo: 1
Aux: 2 (including FX)

Pad

Channels 1-4: 30 dB

Hi-Z Input

Channel 4: Supported

HPF

High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave

EQ Section

High: 10 kHz +15/-15 dB
Mid: 2.5 kHz +15/-15 dB
Low: 100 Hz +15/-15 dB

Compressor

Single knob compressor

Audio Level Meter

7 points (-20, -10, -6, 0, +6, +10, Peak)

Built-in Effects

SPX Algorithm: 24 programs

Output Channel Function

Master EQ (Speech to Music)
Monitor EQ
Feedback Suppressor

Phantom Power

+48 V

Footswitch Input

Effect mute on/off

Protection

Load Protection: DC-fault
Amplifier Protection: Overheat protection, overcurrent protection, integral power protection
Power Supply Protection: Overheat protection, overcurrent protection

Power
