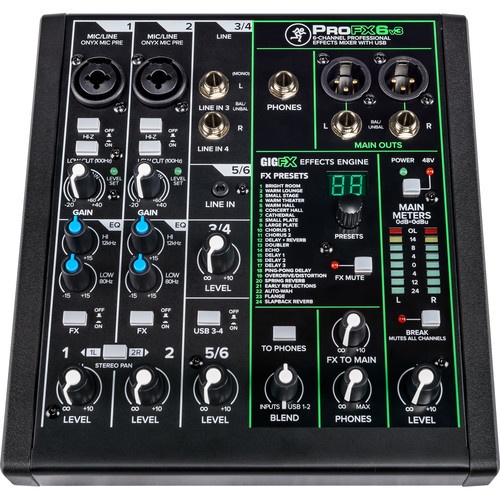

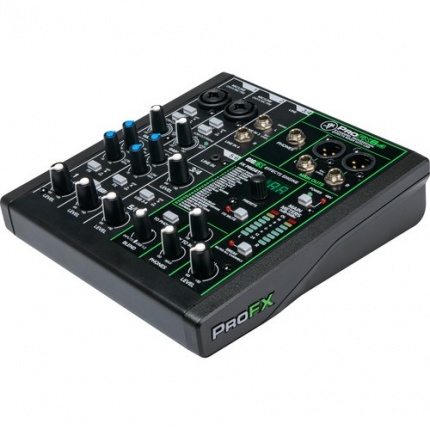

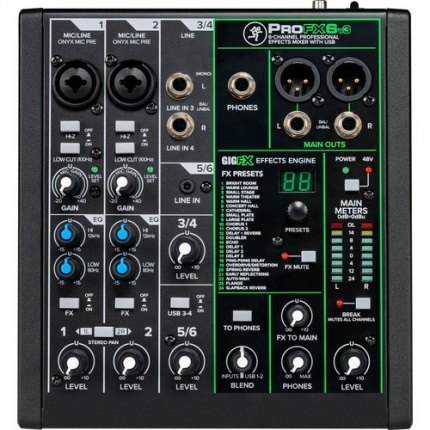

The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4" mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4" inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6's USB3-4 switch will override the 3.5" input and enables the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.
The ProFX6v3 ships with ProTools | First software, Waveform OEM, the DAW Essentials Collection, and The Musician Collection. This plug-in package including 23 high-quality plugins like: BBD Delay, Level Lite, 304E EQ, and 304C Compressor. The Mackie ProFX6v3 includes a USB cable and power supply.
Professional Sound Quality
- Equipped with 2 Onyx Mic Pres offering up to 60 dB of gain and ultralow noise performance
- All-new GigFX Effects Engine with 24 different FX options, from reverbs to delays and more
Essential Mixing Tools
- 2-band EQ (80 Hz and 12 kHz) on channels 1/2
- Hi-Z switches allows direct connection of guitars, basses, and other instruments
- 100 Hz low-cut filter and 48V phantom power on all mic channels
- Line inputs on channel 3/4
- Stereo 1/8" input on channel 5/6
- Headphone output with separate level and blend control
24-Bit / 192 kHz 2x4 USB Recording Interface
- 2x4 USB I/O allows you to create two custom mixes on your computer to send back in to the mixer
- Perfect for live performance recording, music playback, live streaming, and more
Latency-Free Monitoring
- Easily blend between monitoring your computer’s output and a direct feed from the mixer
Professional Production Content
- Pro Tools | First and Waveform OEM professional software and plugin packages included
- The DAW Essentials Bundle for Waveform OEM includes 16 powerful plug-ins like Equalizer, Compressor, Reverber8, and Limiter
- The Musician Collection for ProTools | First includes 23 plugins including 304 EQ, 304C Compressor, BBD Delay, Black Op Distortion, Black Shiny Wah, Black Spring Reverb, C1 Chorus, DC Distortion, Eleven Lite, Flanger, Graphic EQ, Gray Compressor, Green JRC Overdrive, In-Tune, Orange Phaser, Roto Speaker, Sci-Fi, Studio Reverb, Tape Echo, Tri Knob Fuzz, Vari-Fi, Vibe, Phaser, and White Boost
Signature Rugged Design
- Mackie built-like-a-tank design
- Solid steel chassis protects your investment
- Tough ABS side protection
Included Software
- An industry standard for decades, Pro Tools | First is easy enough for beginners yet sophisticated enough for experienced musicians. Get many of the same tools used by your favorite artists and recording studios. Now you can collaborate online with anyone, anywhere, and create at the speed of your imagination. Available for macOS and Windows operating systems.
- Tracktion Waveform OEM and the DAWs Essential Collection are included.
- In addition to the powerful plug-ins within Pro Tools | First, this mixer comes with the exclusive Mackie Musician Collection featuring 23 fantastic plug-ins, including:
- Avid 304E EQ: Add musical warmth with a treble and bass equalizer with sweepable mid control
- Avid 304C Compressor: Tweak the clarity, balance, and rhythmic feel of your music with this optical-modeled compressor
- BBD Delay: Create delay, chorus, and vibrato effects based on a classic guitar pedal
- Black Op Distortion: Add rich distortion based on a classic distortion pedal
- Black Shiny Wah: Achieve the famous classic tones of a respected wah wah pedalBlack Spring Reverb: Get the twang and space of a vintage amplifier
- C1 Chorus: Emulates a classic chorus pedel
- DC Distortion: Dial up a range of overdriven tones with this Avid custom distortion effect
- Eleven Lite: Get the sound of popular guitar amps and speaker cabinets
- Flanger: Create esoteric sounds with this homage to vintage and modern flangers
- Graphic EQ: Sculpt frequencies with ease
- Gray Compressor: Add warmth to tracks based on a vintage Ross stompbox compressor
- Green JRC Overdrive: Get the coveted sounds of a classic IC overdrive pedal
- In-Tune: Keep your instruments in tune with this digital tuner
- Orange Phaser: Create interesting effects with this phase shifter based on a classic design
- Roto Speaker: Recreate the sounds of a Leslie rotary speaker cabinet
- Sci-Fi: Add analog synth-type ring and frequency modulation
- Studio Reverb: Create natural-sounding reverb and ambient effects
- Tape Echo: Add vintage analog delay and chorus effects
- Tri Knob Fuzz: Get the Hendrix tone with this fuzz box based on one of the first fuzz pedals
- Vari-Fi: Create the effect of audio changing tape speed
- Vibe Phaser: Add phase-shift and rotary speaker effects
- White Boost: Boost gain without coloring tone
In the Box:
Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX
USB Cable
Power Supply
Serial Number for Download of Pro Tools | First, Waveform OEM, and The Musician CollectionMixer
Number of Analog Input Channels 6
Number of Mic Preamps 2
Analog Output Channels
2 x Stereo Master Output
1 x Stereo Headphone Output
Meters Main Meter:
2 x 8-Segment LED
Meter Range Main Meter:
-24 dB to +14 dB Plus Peak/Clip
Signal Processing
EQ Parameters Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz
Filters High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects 24 x Preset (Factory)
Digital Audio
Bit Depth 24-Bit
Performance
Frequency Response Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level +22 dB
Output Level Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance Mic Input:
3.8 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR 70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN -126 dBu at Max Gain (150-Ohm Input)
Noise Floor All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N Mic Input to Main Output:
0.03% (+4 dBu)
Connectivity
Phantom Power +48 V, Selectable On/Off (Applied to All Inputs)

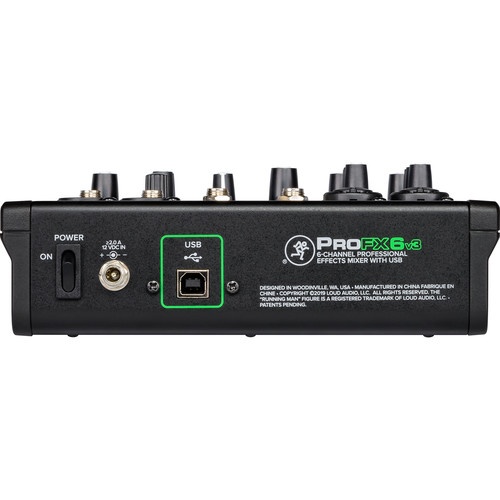

USB 1 x USB Type-B (USB 2.0)
USB I/O Capacity 2 x Input / 4 x Output
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output 12 VDC at 2 A
Physical
Rack Mountable No
Dimensions 2.9 x 7.5 x 8.4" / 7.1 x 19 x 21.3 cm
Weight 2.6 lb / 1.2 kg
