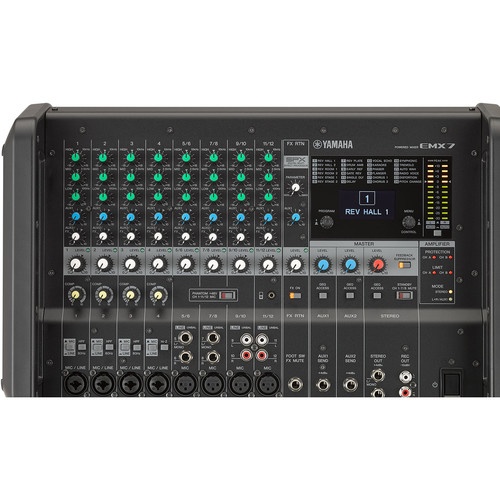

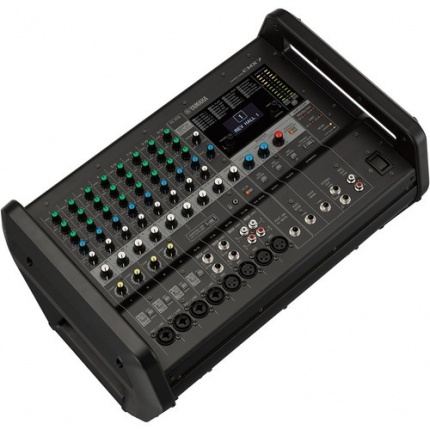

The Yamaha EMX7 is a 12-input powered mixer with an integrated 1420W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.
The EMX7 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers an integrated speaker processor with bass boost, designed to bring out the best quality from Yamaha or 3rd party passive speakers. The EMX7 also includes a Flex9GEQ graphic equalizer for Aux 1, Aux 2, and Stereo Output. The Flex9GEQ allows you to select up to nine bands out of a total of 31 and adjust the gain. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX7 ships with a standard IEC power cord.
- 1420-watt power amplifier for versatility in a wide variety of performance applications
- Compatible with 4 Ohm and 8 Ohm speakers
- 12-channel mixer with four mono mic/line and four stereo line input channels, supporting a wide range of inputs
- Channels 1-4 offer a single knob compressor
- Channels 1-3 offer an 80 Hz high-pass filter to reduce microphone rumble
- Channel 4 offers a Hi-Z input for guitar
- Two Aux sends via balanced 1/4" outputs. Aux 2 also sends to internal effects engine
- Yamaha’s high-quality SPX multi-effects, providing optimum processing for instruments or vocals
- Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
- Independent three-band equalizer on each channel for tonal adjustment and sound control
- Integrated speaker processor
- Flex9GEQ Graphic EQ: Allows you to select up to nine bands out of a total of 31 and adjust the gain
- Stereo Output: Two balanced 1/4" outputs for connecting to powered speakers or an additional amplifier
- Recording Output: Stereo RCA for connecting to a recorder
In the Box:
Yamaha EMX7 12-Input Powered Mixer
AC Power CordAnalog Input Characteristics
Input Connectors
- Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm
- Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm
- Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm
- Channels 9/10: 1x XLR, 2x RCA
- Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack
Load Impedance
- Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
- Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms line
- Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
- Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal
- Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal
Input Level
Sensitivity
- Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
- Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
- Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV)
- Channel 1-4 (1/4", Line): -20 dBu (77.5 mV)
- Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
- Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
- Channels 5-12 (XLR): -60 dBu (0.775 mV)
- Channels 5-8 (1/4"): -20 dBu (77.5 mV)
- Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV)
Nominal
- Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
- Channel 1-4 (XLR, Line): -13 dBu (173 mV)
- Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV)
- Channel 1-4 (1/4", Line): -3 dBu (548 mV)
- Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
- Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
- Channels 5-12 (XLR): -43 dBu (5.48 mV)
- Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV)
Maximum Before Clip
- Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
- Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
- Channel 1-4 (1/4", Mic): -5 dBu (436 mV)
- Channel 1-4 (1/4", Line): +25 dBu (13.8 V)
- Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
- Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
- Channels 5-12 (XLR): -15 dBu (138 mV)
- Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V)
Analog Output Characteristic
Output Connectors
- Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced
- Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced
- Rec Out (L/R): 2x RCA unbalanced
Impedance
- Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
- Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
- Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines
Output Level
- Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
- Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
- Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping

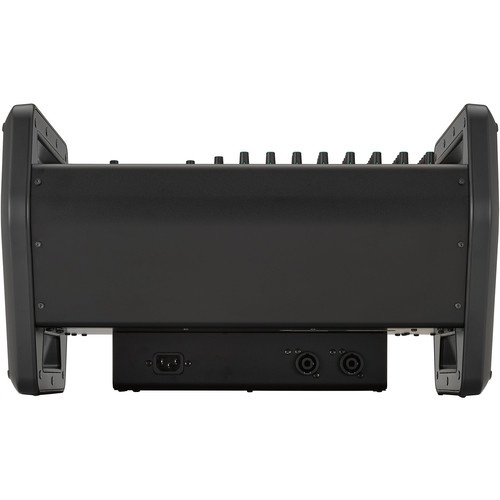

Loudspeaker Outputs
Connectors
Speakers A/B: Neutrik speakON NL4, 1/4" / 6.35 mm phone jack
Impedance
- Actual Source Impedance: 0.1 Ohms
- For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers
Output Level
- 4 Ohm Speakers: 600 W (1 Hz THD+N 1%), 710 W (1 kHz THD+N 10% [CEA2006])
- 8 Ohm Speakers: 400 W (1 Hz THD+N 1%), 500 W (1 kHz THD+N 10% [CEA2006])
General Specifications
Output Power
- 1 kHz THD+N 10% (CEA2006): 710 W + 710 W (4 Ohms), 500 W + 500 W (8 Ohms)
- 1 kHz THD+N 1%: 600 W + 600 W (4 Ohms), 400 W + 400 W (8 Ohms)
Frequency Response
- Frequency Response Refer to the nominal output level @ 1 kHz
- Input to Speakers: +1/-3 dB (40 Hz to 20 kHz)
- Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz)
THD + N
- Input to Speakers (Mic/Line): 0.1% @ 10 W (40 Hz to 20 kHz)
- Input to Speakers (Line - Channels 1-4) 0.04% @ 65 W (1 kHz)
- Input to Stereo Out, Aux 1/2 Send (Mic/Line): 0.02% @ +14 dBu (20 Hz to 20 kHz)
- Input to Stereo Out, Aux 1/2 Send (Line - Channels 1-4): 0.007% @ +20 dBu (1 kHz)
Crosstalk
(1 kHz): -85 dB
Hum & Noise
- EIN: -117 dBu
- Residual Output NoiseInput to Speakers: -70 dBu (40 Hz to 20 kHz, Stereo Master Level: min)
- Input to Stereo Out, Aux 1/2 Sends: -82 dBu (20 Hz to 20 kHz, Stereo Master Level: min)
Input Channels
Mono (Mic/Line): 8
Stereo: (Line): 4
Total: 12
Output Channels
- Speakers: A/B
- Aux 1 Send
- Aux 2 Send
- Stereo Out: L/R
- Rec Out: L/R
Bus
- Stereo: 1
- Aux: 2 (including FX)
Pad
Channels 1-4: 30 dB
Hi-Z Input
Channel 4: Supported
HPF
High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave
EQ Section
- High: 10 kHz +15/-15 dB
- Mid: 2.5 kHz +15/-15 dB
- Low: 100 Hz +15/-15 dB
Compressor
Single knob compressor
Audio Level Meter
2x 12 Points LED Meter: (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, Peak)
Built-in Effects
SPX Algorithm: 24 programs
Output Channel Function
- Graphic EQ
- Speaker Processor
- Feedback Suppressor
Phantom Power
+48 V
Footswitch Input
Effect mute on/off
Protection
- Load Protection: DC-fault
- Amplifier Protection: Overheat protection, overcurrent protection, integral power protection
- Power Supply Protection: Overheat protection, overcurrent protection
Power
- Power Requirements: 100-240 VAC, 50/60 Hz
- Power Consumption: 45 W (Idle) / 250 W (1/8 power)
Operating Temperature
32 to 104°F / 0 to 40°C
