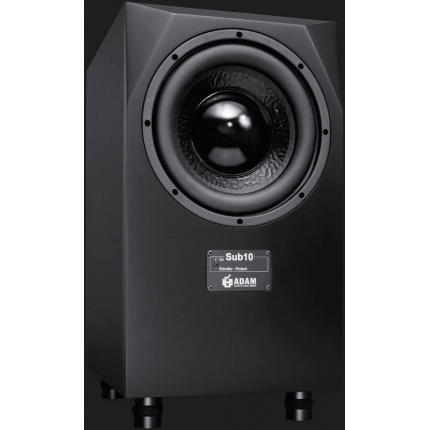

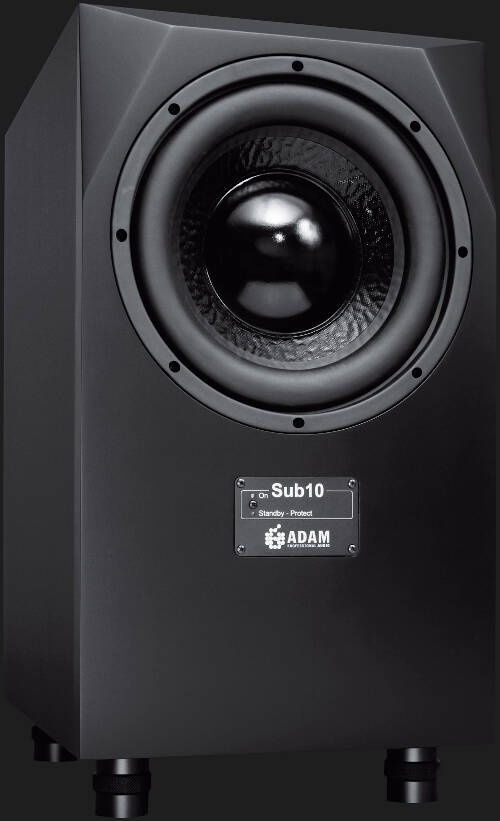

ADAM AUDIO SUB10 MK2
The Sub10 MK2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.
The Sub10 MK2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).
In the Box:
Adam Professional Audio Sub10 MK2 - 200W 10" Active Subwoofer
4 x Protection Rubber Foot Plugs
Power CordNot in the Box
Microphone and Signal CablesSUBWOOFER
Number 1
Basket Ø 10" (260 mm)
Voice Coil Ø 2" (50 mm)
Cone Material Paper
BUILT-IN AMPLIFIERS
Subwoofer 1
Type PWM
Amp. Power RMS / Music 200 W / 300 W
INPUT CONNECTORS
Analog XLR / RCA
GENERAL DATA
Frequency Response 25 Hz - 150 Hz
THD > 60 Hz ≤1 %
Max. peak SPL at 1 m ≥113 dB
Crossover Frequencies 50 - 150 Hz
Input Impedance 10 kOhm
Panel Rear
Weight 46.3 lb (21 kg)
Height x Width x Depth 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm)
Delivery Contents Power cord, manual
