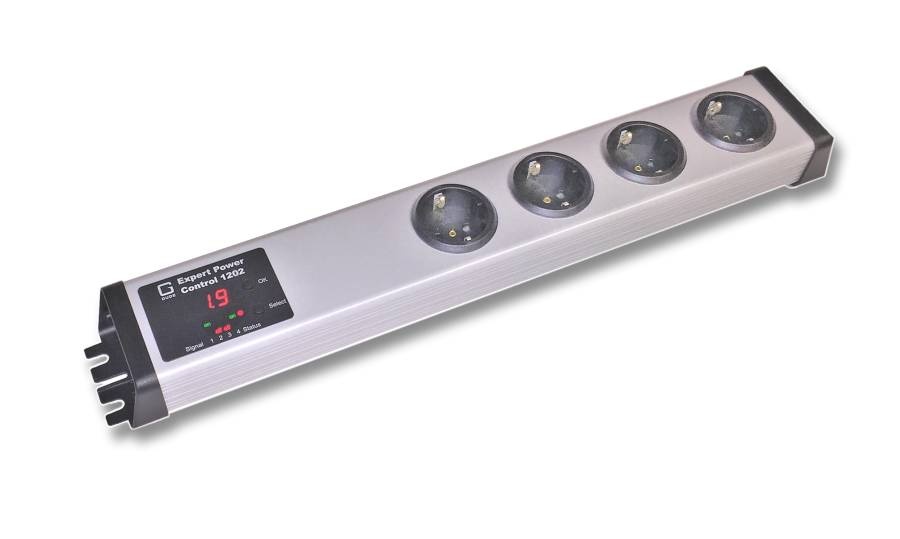

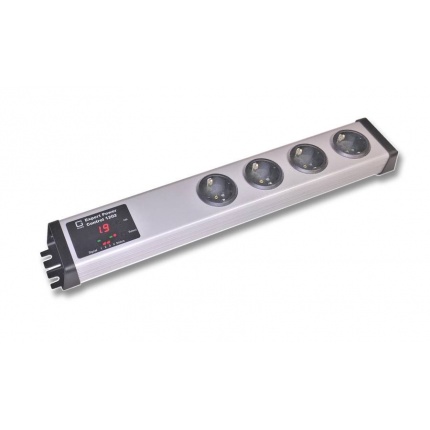

Remotely switched and metered Power Control with 4 x safety sockets for usage in combination with a media management system. The power control can be used to switch connected electrical loads on and off and for current measurement. Up to 9 electrical quantities dimensions can be measured on the input side, as well as residual current measurement (see below). Two combined sensors (temperature, humidity and air pressure) can be connected to the two RJ45 connectors for environment monitoring. Thanks to standardised protocols such as HTTP/HTTPS, Telnet, RADIUS, MQTT and Modbus TCP, the device can be controlled with a media management system, a server or integrated into a monitoring software. Connecting to Crestron and Extron devices is done quickly, thanks to available drivers.
Toolless installation in media or IT racks (19 inches), furniture, pedestals and tables is made possible because the device’s rack ears are already attached. Each output can be switched and restarted individually. The outputs can be switched event-based by pre-set sensor thresholds and programmed schedules. The switching state and switch-on delays (0…9999 seconds) are freely adjustable for each Power Port. An automated reboot can be set individually per output using the integrated watchdog function (ICMP/TCP).
-
1 power connection (safety plug type F, max. 16 A)
4 load outputs (safety socket type F, max. 16 A)
1 RJ45 network connection (10/100 Mbit/s)

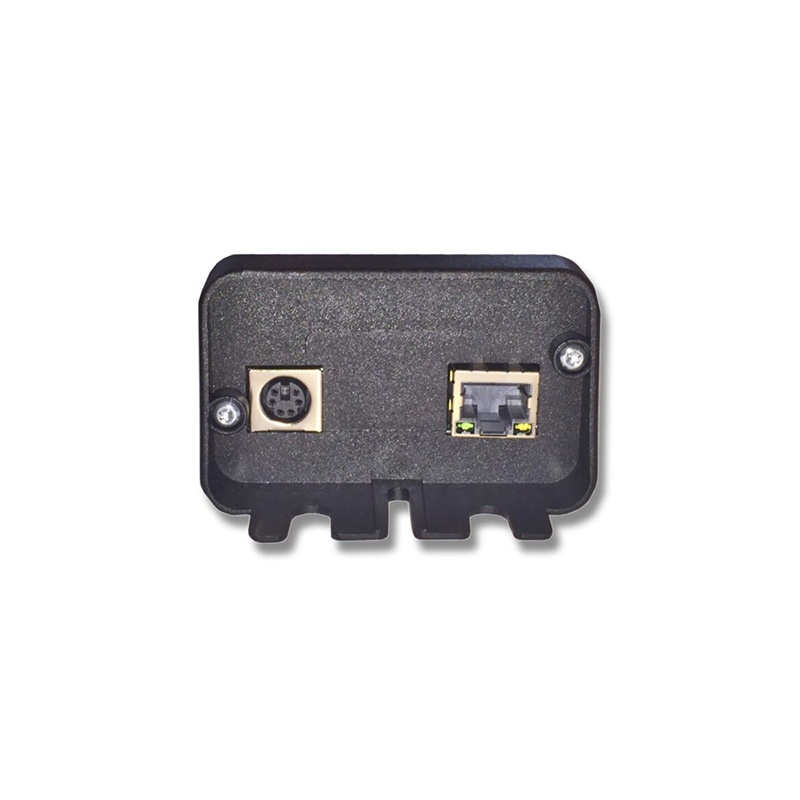

1 min DIN sensor input for optional sensors
Max. current (total): 16 A
Max. current (per port): 16 A
Power consumption: approx. 5 W
Operating temperature: 0-50 °C
Storage temperature: -20 – 70 °C
Relative humidity: 0 – 95 % (non-condensing)
High-Inrush Relay: Type 16 A, 30 A up to 4s and 80A up to 20ms
Overvoltage protection: Type 3, max. L-N, N/L-PE 10 kADimensions
Dimensions (LxHxT): 48,4 x 4,6 x 7,4 cm
Weight: 1 kg
