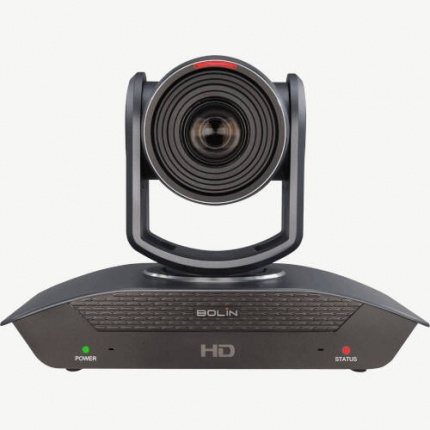

Bolin D220 Series PTZ camera is the world’s first 1080P/60 Dante AV hardware-enabled pan, tilt, zoom camera interfacing video and audio in a standard 1 Gbps network.
Loud Technologies Asia and AVLFX will debut the D220 DanteAV PTZ Camera in Singapore. Please contact us for details pertaining to demo requests.
The Bolin D220 provides uncompromised video quality with the lowest latency and synchronization. Designed to seamlessly integrate into an existing Dante audio ecosystem, the D220 PTZ is managed using the Dante Controller Software with the flexibility to independently route audio and video with sub-microsecond accuracy to minimize time alignment issues.
Camera Type DanteAV Full HD PTZ Camera
Environment Indoor
Ecosystem Dante AV
Image Sensor Sony 1/2.8 Inch CMOS Sony 1/2.8” CMOS sensor
Optical Zoom 20X
Digital Zoom 2X
2D/3D Noise Reduction
HOV(Horizontal Angle of View) 55.8°
Aperture F1.5(W)~F3.0(T)
Min. Illumination 0.5lux
Focus, White Balance, Exposure Auto/Manual Adjustment
BLC-Backlight Compensation
E-FLIP
IR CUT FILTER
True WDR
HDMI 2.0
FHD IP Streaming
HDBaseT N/A
Optical SDI N/A
Video Format HDMI, RGB 8bit 4:4:4 / YUV 12bit 4:2:2
Video Standards N/A N/A
SDI/HDMI Resolution HDMI: 1920x1080p:60/59.94/50/30/29.97/25 ; 1920x1080i:60/59.94/50; 1280x720p:60/59.94/50/30/25
Codec JPEG2000
IP Video Compression H.264/265
IP Video Resolution Up to 4K 2160p60
ULL-Ultra Low Latency
RTMP Steaming
Audio I/O Audio Mic/Line-in with HDMI audio embedded output. Audio Mic/Line-in with HDMI audio embedded output.
SDI/HDMI Audio Embedded
CONTROL
Pan Movement ±175 degrees ±175 degrees
Tilt Movement 120°, +90° to -30° 120°, +90° to -30°
Zoom Adaptive Variable Speed Control
Variable Speed Preset
Picture Profile Preset
PTZ Trace Memory
Camera Control Interface Dante Serial Over IP, Visca Over IP, RS232, RS422(485), IR
Tally Light
GENERAL
Firmware Upgrade Via USB & IP
Power Input 12VDC, POE (IEEE802.3bt)
Bolin POE Injector Recommended
Mounting Orientation Ceiling, Wall, tripod Ceiling, Wall, Tripod
Illuminator Type N/A
Operating Temperature -10 to +40 (°C)
Nitrogen Filled N/A
Body Color Metallic Gray
