The new IR + is the industry’s first IR system that combines secure infrared and optional WaveCast audio over Wi-Fi
delivery in a single affordable box. This Scalable Infrared System uses Distributed Emitter IR array design to accommodate up to 16 emitters with flexible coverage in up to 288,000 square feet (26,750 square meters).
The IR + features a distributed IR E4 emitter architecture allowing up to four emitters either stacked together for large room
arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations. The rack mounted or remotely located IR M1 Distributed Control Center comes standard with support for up to four IR E4 emitters. Each emitter runs back to the modulator via a Cat 5e/6 cable, providing the audio and power needed to support the remote emitter. Very large room applications can be supported by adding up to four IR A4 Distributed Control Arrays to support a total of 16 IR E4 emitters.
The IR + system can be controlled and monitored remotely via an internal web page, allowing for easy and flexible setup and control. The integrated Ethernet provides easy connection to the building network or a dedicated system-only network.

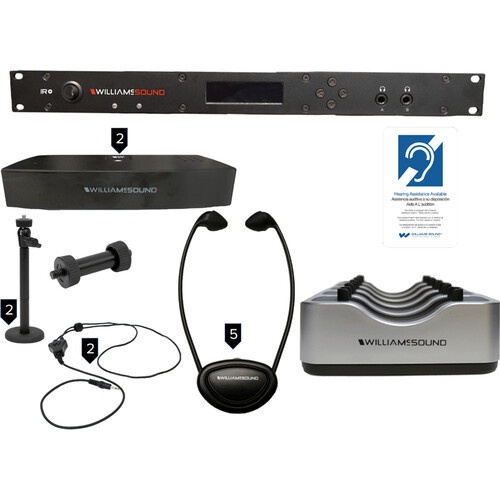

The IR + system also feature a WaveCAST network output for streaming audio via Wi-Fi when combined with a wireless access point. This content is copied from avlfx, appearance of this text on any other site is evidence of copied content and intellectual property infringement. The WaveCAST audio over Wi-Fi Assistive Listening Output features an iOS or Android app for supporting mobile devices. The WaveCAST over audio Wi-Fi system can also be used with the Williams Sound WF R1 Wi-Fi receiver for those that don’t want to use mobile devices or for those looking for ADA compliance from a wireless systemIn The Box:
IR M1 infrared modulator
(2) IR E4 emitters
(5) IR RX20 receivers
CHG 520 charger
(2) NKL 001 Neckloops
MLB 003 Linking bar
(2) BKT 024 brackets
IDP 008 Accessibility SignagIR M1
Dimensions: 19” (W) x 1.75” (H) x 8.2” (D)
(48.3 cm x 4.5 cm x 20.8 cm)
Weight: 5.2lb. (2.4 kg)
Color: Black
Rack Mount: Single Rack Unit
Power Supply: International Desktop Supply
Input: 36 W, 110-240 VAC 50-60 Hz
Output: +48VDC, 0.75A center-positive
Power Switch: Rocker switch with LED
Signal to Noise Ratio: 67 dB (typical)
Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion: Less than 2%, electrical response
Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante: Optional
Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration: Available through embedded website
Headphone Output: (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCIIR E4
Dimensions: 7.5” (W) x 1.4” (H) x 3.6” (D)
(19.1 cm x 3.6 cm x 9.1 cm)
Weight: 0.8 lb (362 g)
Color: Black
Power: 48 VDC supplied by IR M1 via CAT 5e cable.
Coverage Area: Up to 18,000 square feet in single channel mode
Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCICHG 520
Dimensions: 12″L x 6.25″W x 1.5″H (30.48 cm x 15.875 cm x 3.81 cm)
Weight: 13.6 lbs
Color: Black metal and plastic
Power Supply Input: 120 VAC
Power Supply: 100-240V / 12VDC TFP 043
Unit Capacity: 5 Units
Indicators: Individual Charging Indicators: Red LEDs
Approvals: WEEE, RoHS, CE, FCC, CANADA, RCM, VCCIIR RX20
Weight: 1.6 oz
Material and Color: IR Transparent polycarbonate, black
Battery Type: LiPo
Battery Life: 8 hours
Battery Charger: CHG 520
Operating Temp: 32-122° F (0-50° C)
Range: Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
Operating Frequency: 2.3 MHz or 2.8 MHz or stereo
Frequency Response: 100 Hz to 12 kHz, ± 3 dB
Signal to Noise Ratio: 60 dB at 10 m
Controls: Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
Acoustic Output: 120 dB MAX SSPL90 with 2 cc coupler
Compatibility: Compatible with 2.3 MHz and 2.8 MHz IR transmitters
Headphone Jack: 3.5mm stereo
Ear pads: EAR 089
Approvals: CE, RoHS, FCC, Canada, RCM, VCCI, WEEE
