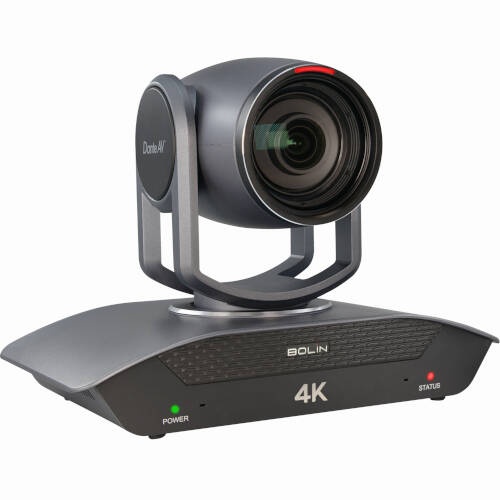

Bolin D412 Series PTZ camera is the world’s first Dante AV hardware-enabled pan, tilt, zoom camera interfacing video and audio in a standard 1 Gbps network.
Loud Technologies Asia and AVLFX will debut the D412 DanteAV PTZ Camera in Singapore. Please contact us for details pertaining to demo requests.
The Bolin D412 provides uncompromised video quality with the lowest latency and synchronization. Designed to seamlessly integrate into an existing Dante audio ecosystem, the D412 PTZ is managed using the Dante Controller Software with the flexibility to independently route audio and video with sub-microsecond accuracy to minimize time alignment issues.
Camera Type DanteAV 4K PTZ
Environment Indoor
Ecosystem Dante AV
Image Sensor Sony 1/2.8 Inch CMOS Sony 1/2.8” CMOS sensor
Optical Zoom 12X
Digital Zoom 16X
2D/3D Noise Reduction
HOV(Horizontal Angle of View) 72.06°
Aperture F1.8(W)~F3.68(T)
Min. Illumination 0.005lux
Focus, White Balance, Exposure Auto/Manual Adjustment
BLC-Backlight Compensation
HLC-Highlight Compensation
E-FLIP
Image Stabilizer
HDMI 2.0
FHD IP Streaming
4K IP Streaming
HDBaseT N/A
Optical SDI N/A
Video Format HDMI, RGB 8bit 4:4:4 / YUV 8bit 4:4:4 / YUV 12bit 4:2:2 / YUV 8bit 4:2:0 HDMI, RGB 8bit 4:4:4 / YUV 12bit 4:2:2
Video Standards N/A N/A
SDI/HDMI Resolution HDMI: 3840X2160p:60/59.94/50/30/29.97/25/23.98 1920X1080p:60/59.94/50/30/29.97/25/23.98
Codec JPEG2000
IP Video Compression H.264/265
IP Video Resolution Up to 4K 2160p60
ULL-Ultra Low Latency
RTMP Steaming
Audio I/O Audio Mic/Line-in with HDMI audio embedded output. Audio Mic/Line-in with HDMI audio embedded output.
SDI/HDMI Audio Embedded
CONTROL
Pan Movement ±175 degrees ±175 degrees
Tilt Movement 120°, +90° to -30° 120°, +90° to -30°
Zoom Adaptive Variable Speed Control
Variable Speed Preset
Picture Profile Preset
PTZ Trace Memory
Camera Control Interface Dante Serial Over IP, Visca Over IP, RS232, RS422(485), IR
Tally Light
GENERAL
Firmware Upgrade Via USB & IP
Power Input 12VDC, POE (IEEE802.3bt)
Bolin POE Injector Recommended
Mounting Orientation Ceiling, Wall, tripod Ceiling, Wall, Tripod
Illuminator Type N/A
Operating Temperature -10 to +40 (°C)
Nitrogen Filled N/A
Body Color Metallic Gray
