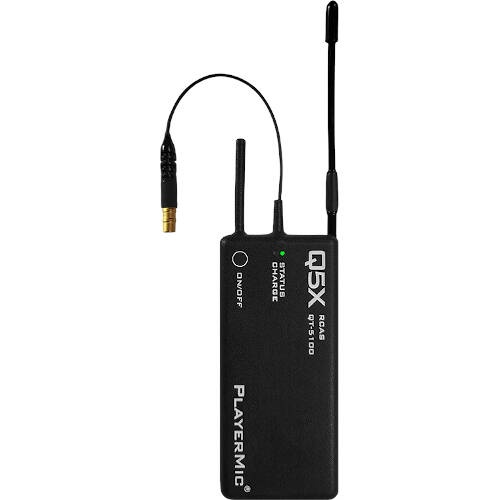

Q5X QT-5100 PlayerMic

S$ 3,617.75
(S$ 3,617.75 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable

 Please make your choice:

*
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Singapore Versions Restricted to 10mW.

Key Features:
  • Micro sized transmitter
  • Flexible polymer
  • Water resistant case
  • Internal lithium polymer rechargeable battery
  • Lemo connector for a removable lavalier.
Show moreShow less
  • Remote Control Audio System
    The QT-5100 PlayerMic and PlayerMic S utilize the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or handheld MicCommander. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.

    3000 Channels
    The QT-5100 PlayerMic and PlayerMic S are offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.

    Comfortable and Concealable
    The QT-5100 PlayerMic and PlayerMic S have a flexible polymer case to create the safety and ruggedness required for professional sports. The PlayerMic S was developped for the NBA as the smallest and first totally RF remote controlled bodypack. The PlayerMic is the long life version with 8 hours on a single charge. Weighing roughly 2 ounces and less than 1/2 an inch thick, the QT-5100 joins the QT family as the most comfortable audio transmitter in the industry.

    All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.

    Note:
    For legal use in Singapore, transmitters will be restricted to 10mW for legal use according to IMDA guidelines. Export versions will be capable of full transmission power and will be marked "FOR EXPORT" on the packaging.

    Please indicate your receiver frequency block in the comments when ordering.

  • Dimensions: 97.5mm x 42mm x 11.5mm (PlayerMic)

    Weight: including battery, 62.4g (PlayerMic)

    Housing Material: Polymer Case

    RF output power: 10mW to 100mW (user selectable, country restrictions apply)

    UHF frequency range 470 to 700 MHz in 3 frequency blocks

    Tunable bandwith: Varies by frequency block (25 kHz steps)

    Modulation: FM

    Nominal deviation: +/- 40 kHz

    Peak deviation: +/- 54 kHz

    Pre-emphasis: 50 us

    Compander: Q5X DCS-QT

    Signal to Noise: 105dB (A) rms

    Frequency stability: +/- 0.001%

    Spurious emission: - 60 dBc

    Total harmonic distortion (THD): 0.3% at nominal deviation

    Frequency response: 50 Hz to 17,000 Hz
    NOTE: system frequency response is dependent on the microphone element

    Audio connector: 1 pin Lemo

    Antenna: 1/4 wave UHF and 2.4 GHz

    Battery: Internal Lithium Polymer

    Operating time: (Battery) estimated 8 hrs @ 50mW (PlayerMic)

    Operating temperatures: -10⁰C to 45⁰C

    Approvals: FCC, CE, Industry Canada

For export (= shipments outside of Singapore) we do not charge GST. In this case, please refer to the prices excl GST.
