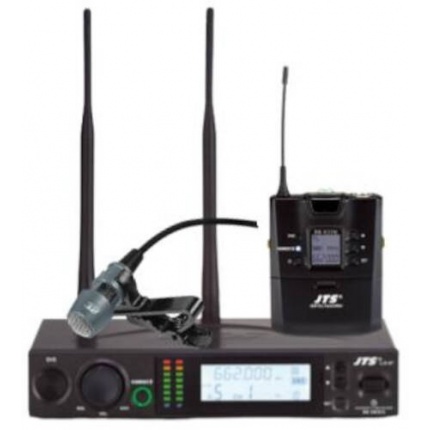

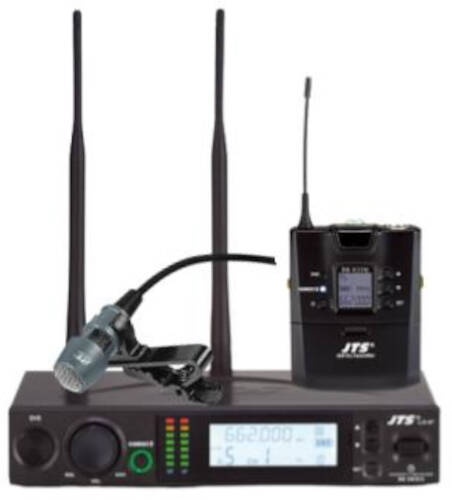

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID, and so on by pushing a button. The scan function is also provided.* RU-901G3 is for medium and large venues.
RU-901G3
3rd generation True Diversity system
Transmission power selectable between '"High" and "Low"
6 groups are provided as default. Every group contains up to 23 default channels
There are in total 1,441 channels to choose from
36MHz bandwidth
The patented ultrasonic pairing for synchronized setting of all parameters
Channel scan
Adjustable receiving sensitivity
Automatic microphone power off

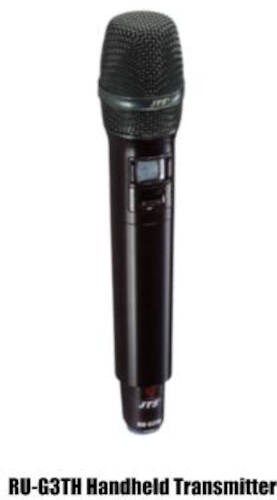

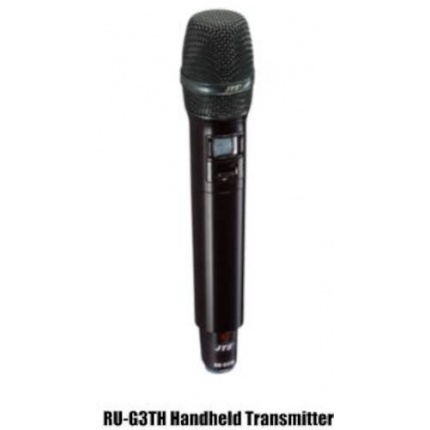

Charging contact readyRU-G3TH
1441 Selectable channels
Phase-locked Loop (PLL) synthesized tuner
Advanced circuitry ensures stable signal transmission
Extended dynamic range and smooth frequency response
Noise mute and tone-key squelch

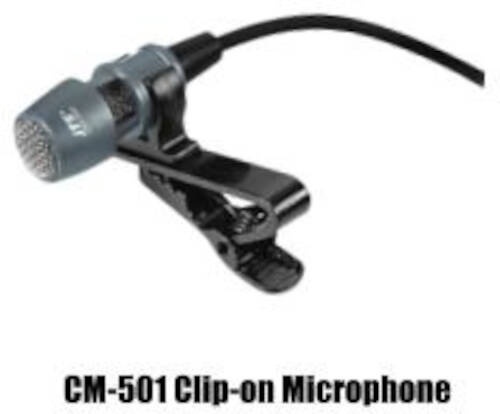

Internal antenna designCM-501
Uni-direction for high-quality voice pick-up
Wide dynamic range and frequency response for excellent sound reinforcement
Small size for minimum visibility

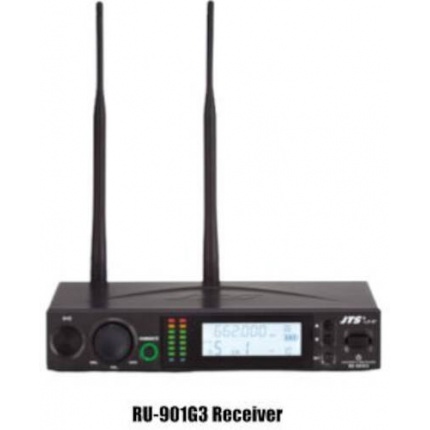

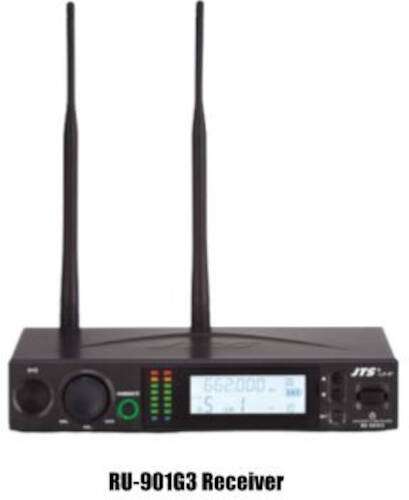

Together with clip for easy attaching to a tie, lapel, dress etc.RU-901G3
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: UHF 470~960 MHz
Frequency Setting: Remoset U Ultrasonic
Receiving Mode: True Diversity
Bandwidth: 36MHz
S/N Ratio: > 105dB
T.H.D: 0.6% @ 1KHz
Sensitivity: -95dBm, S/N>80dB
CMRR: >80 dB
Audio Frequency Response: 50Hz~18KHz±2dB
Antenna: BNC (F)
Antenna Bosster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
Controls: Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
Audio Output Level: Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line), -24dBV(MIC)
AF Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Output Connector: Balanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1
Power Supply: DC12~15V/500mA
Dimension (m / m): 212.3mm(W)*38.3mm(H)* 144mm(D)
Notes: Actual product specifications may vary depending on regionRU-G3TB
Frequency Preparation PLL: Synthesized Control
Carrier Frequency Range: UHF 470~960 MHz
Frequency Setting: Remoset U Ultrasonic
RF Outputs:Low/High
Stability:±10KHz@ Fc
Frequency Deviation:±48KHz
Spurious Emissions:-50dBc
Display:LCD+LED
Input Connector: MINI XLR
Controls:Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
Battery:UM3, AA x2
Slot-in Charging: Yes
Dimensions: 62(W) x 80.3(H) x 22.6(D)
Notes: Actual product specifications may vary depending on model and regionCM-501
Connector:4P Mini XLR
Frequency Response:100~15,000 Hz
Polar Pattern:Cardioid
Sensitivity (at 1KHz):-60±3 dB* (1mV)*0dB=1V/μbar
Impedance:2.2kΩ
Max. SPL for 1% THD: 130dB
Dimension(mm):Ø10.1mm(W)* 26.4mm(H)
Net Weight:21.5g
