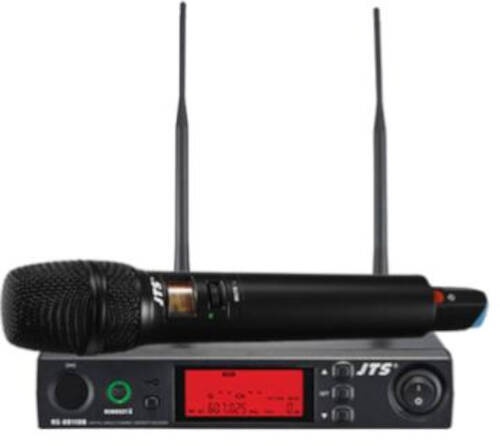

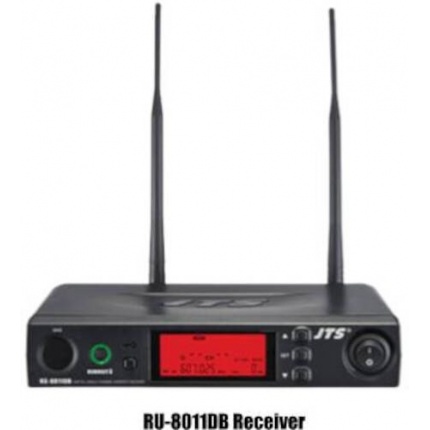

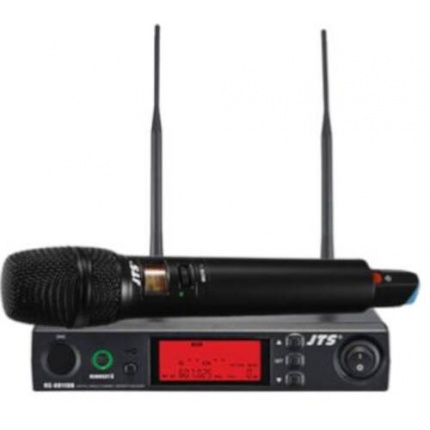

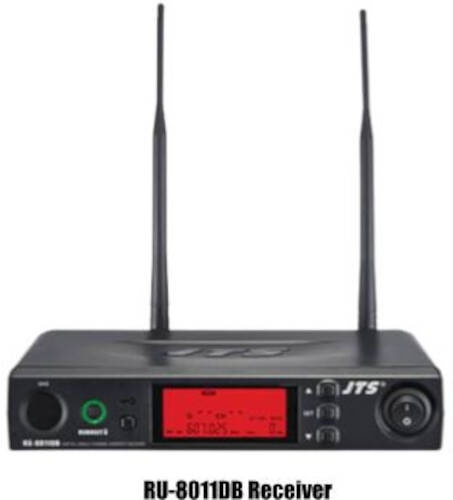

RU-8011DB
This product is a full-featured version of RU-8011D. It is built with a detachable BNC antenna. Besides selectable group and channel, its frequency can be finely adjusted by an interval of 0.025 MHz for multi-system applications.

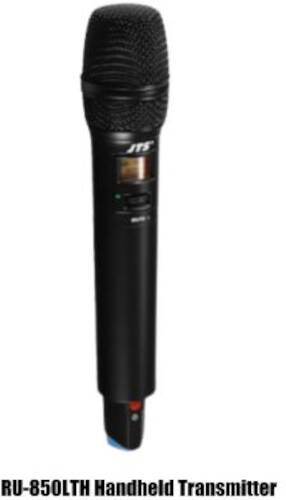

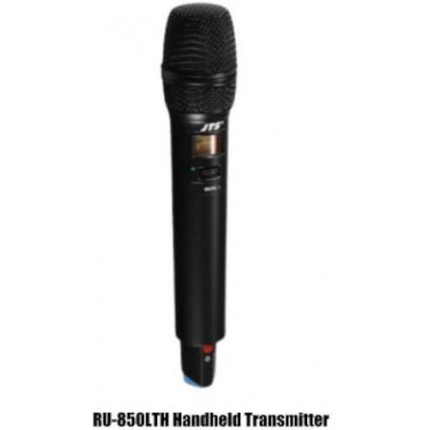

RU-850LTH
This innovative transmitter is designed with both REMOSET U and full function setting in itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at the receiver’s front panel. Auto Power Off feature can be set OFF or ON with a selection of 10, 30 and 60 minutes. This will save battery life and avoid over-discharge. Besides REMOSET U a user can carry out setting at the transmitter side. A quick Lock-On key is built inside. The recharging circuit and connecter are already built-in case users want to upgrade the system. -
RU-8011DB
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 470~960 MHz
Frequency Setting: REMOSET URF
Receiving Mode: Antenna Diversity
Bandwidth: 36MHz
S/N Ratio: >105dB(A)
T.H.D: 0.6%@1KHz
Sensitivity: -95dBm,S/N>80dB
Rejection Ratio: >80 dB
Frequency Response: 50Hz~16KHz±2dB
Antenna Type: BNC Socket
Antenna Booster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls Power: ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuation(XLR), Frequency Scan(ON/OFF)
Audio Output Level: Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Output Connector: 1 independent balanced XLR and one Ø6.3mm unbalanced.
Power Supply: DC12~15V/300mA
Dimension (mm): 212.3mm(W)* 38.3mm(H)* 144mm(D)
Notes: Actual product specifications may vary depending on the regionRU-850LTH
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960MHz
Frequency Setting REMOSET U(Receive)
RF Outpus: Low / High
Stability: ±10KHz@Fc
Frequency Deviation: ±48KHz
Spurious Emissions: -50dBc
Function: Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display: LCD+LED
Controls: Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, KeyLock
Battery: UM3, AA x2
