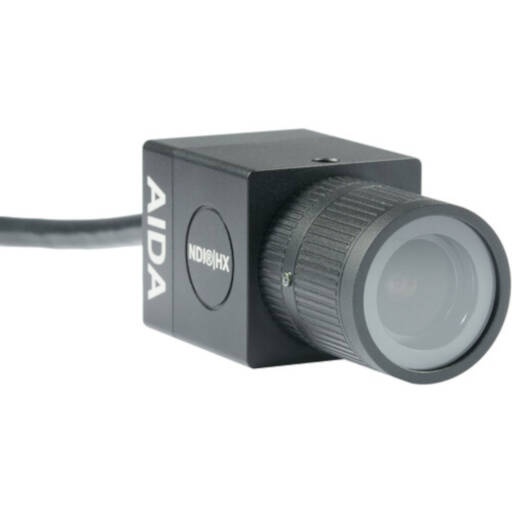

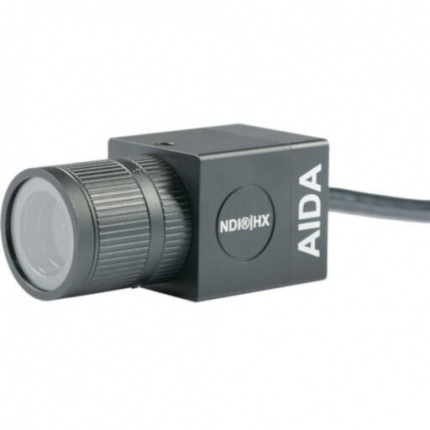

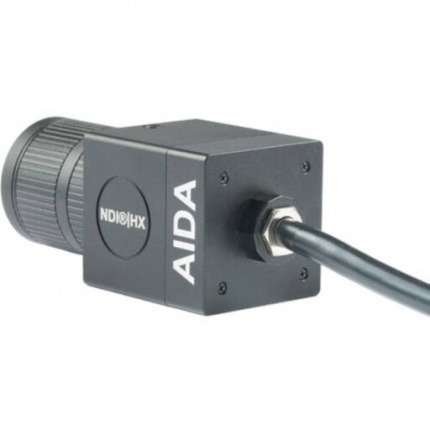

AIDA Imaging - HD-NDI-VF Full HD Weatherproof POV Camera

S$ 797.00
(S$ 797.00 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Bold, Adventurous, Versatile.

Key Features:
  • IP54 Weatherproof NDI POV Camera
  • Up to 1080p60 NDI | HX Video
  • 1/3" CMOS Image Sensor
  • IP and NDI via Single RJ45 Output
  • Power via DC Input or PoE+ Dongle
Show moreShow less

  • The HD-NDI-VF is sorta like the big brother of the HD-NDI-IP67. They are both courageous, and adventurous where they go. However, sometimes older brothers know what’s best. The HD-NDI-VF showcases a beautifully crafted IP54 rated lens, which can adjust both the zoom, and focus. That way, you can get that perfect shot you need, regardless of the position. With great versatility, comes great power, and we all know that great power comes with great responsibility. So leave it up to the HD-NDI-VF to get that shot wherever it is, when you need it most.

    No-Hassle Integration: Is it any question that the HD-NDI-VF comes pre-loaded with its NDI|HX license key? No, its just plain facts.

    IP54 Battle Tested: The camera’s rated IP54, which gives it great protection in the outdoors! Just don’t submerge the little guy, he can’t swim!

    NDI|HX Perfected: The HD-NDI-VF will always bring you the best NDI®|HX performance per dollar, giving you the best looking stream no matter the workflow!

    Premium Outputs, as Always: The camera is capable of simultaneously streaming NDI®|HX, SRT, RTSP and RTMP. There is just no compromise for this!

    1-of-a-kind lens: The HD-NDI-VF varifocal lens that comes on the camera is custom made in our South Korea factory, so you know its serious! Enjoy FOV’s from 120°~36°, WIDE and TELE respectively.

    Control: Let the camera do the dirty work and control it via VISCA over IP, NDI®, or its dedicated web UI!

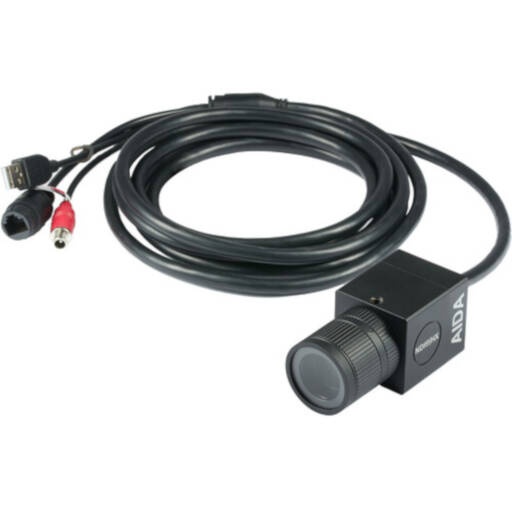

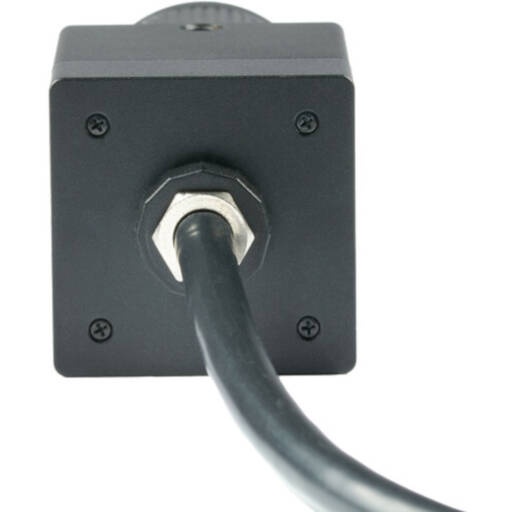

    Its just BUILT different: Of course the HD-NDI-VF comes in our famous heatsink-esque hardened aluminum frame. The cable itself is a staggering 3M/10ft to keep the connections safe.

    Adaptable to PoE+: Just like its brother, a HD-NDI-VF purchase comes with a PoE+ inserter that makes it PoE+ compatible! Keeping the 1 cable tradition alive, respectfully!

    Applications: Academic Research, Motion Capture, Pov Shots, Machine Vision, Outdoor Events

    Main Features:
    • Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
    • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
    • Versatile design with top and bottom tripod mounts for uniques shot creation.
    • PoE+ adaptable with adapter (comes with purchase of the camera)
    • Custom IP54 rated Varifocal lens providing a FOV of 120° wide, and 36° tele to help get that perfect shot.
    • Weatherproof rating allows for extra protection against enviromental elements
    • Small form-factor and rugged designed makes all video streaming applications possible
    • Perfectly suited for outdoor shots any new or existing NDI®|HX setup.

    In the Box:
    - AIDA Imaging HD-NDI-VF Full HD Weatherproof POV Camera
    - PoE Dongle Adapter
    - DC 12v Power Supply & Sockets Adapter


  • VIDEO
    Image Sensor: 1/3” Progressive CMOS
    Sensor Size: 5.346mm x 3.003mm (16.9)
    Effective Pixels: Horizontal: 1920, Vertical: 1080
    Pixel Size: 2.75 μm (H) x 2.75 μm (V)
    Resolution: 1080p, 1080i, 720p
    Resolution Rate:
    - 1080 60p/59.94/50p/30p/29.97p/25p/24p
    - 1080 60i/59.94i/50i
    - 720 60p/59.94p/50p
    Output: IP (NDI|HX/SRT/RTMP/RTSP)
    Color Space: 4:2:2 (YCbCr) 10bit
    Min Illumination: 0.2Lux (day), 0.1Lux (Night)
    White Balance: Auto & Manual (9000 - 11,000 K)

    LENS
    Lens:
    - 2.8mm ~ 12mm Custom Lens
    - FOV Wide: 120° Tele’d: 36°

    STANDARD
    IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

    PHYSICAL
    Camera Control: Protocol: VISCA Over IP
    Operation Temp: 32°F - 104°F
    Dimension: 73mm x 41mm x 41mm / 2.86” x 1.61” x 1.61” (With added lens)
    Weight: 454g / 1 lb
    Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
