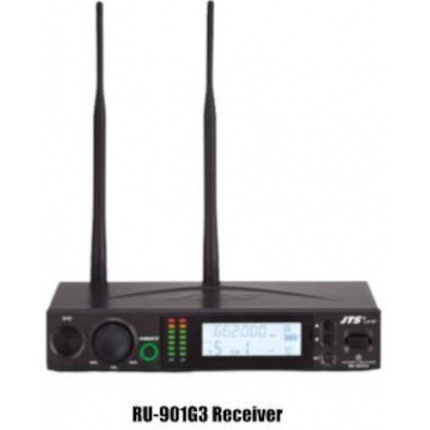

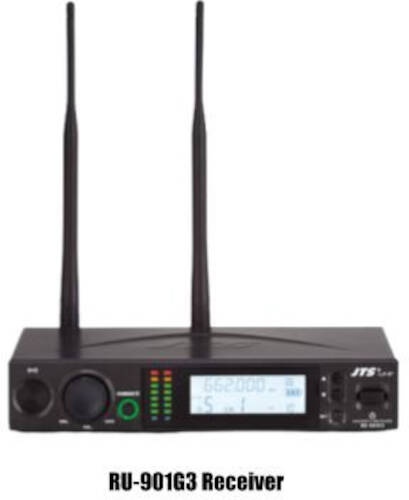

RU-901G3

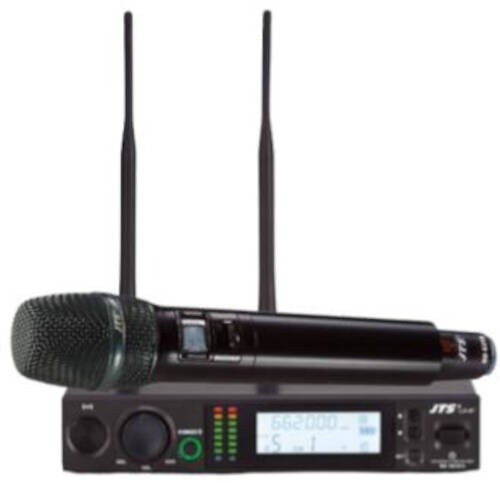

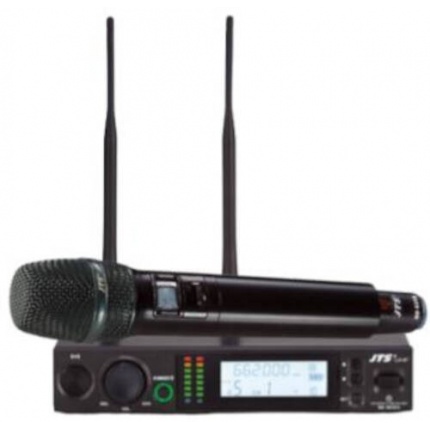

RU-901G3 is the 3rd generation true diversity system. It inherits the reliability in electronic circuit design and mechanical design of the legendary US-901. To cope with the development of the technology it features function. It synchronizes a transmitter with data of frequency, gain control, ID and so on by pushing a button. The scan function is also provided.* RU-901G3 is for medium and large venues.RU-G3TH
1441 Selectable channels.
Phase-locked Loop (PLL) synthesized tuner.
Advanced circuitry ensures stable signal transmission.
Extended dynamic range and smooth frequency response.
Noise mute and tone-key squelch.
Internal antenna design.RU-901G3
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: UHF 470~960 MHz
Frequency Setting: Remoset U Ultrasonic
Receiving Mode: True Diversity
Bandwidth: 36MHz
S/N Ratio: > 105dB
T.H.D: 0.6% @ 1KHz
Sensitivity: -95dBm, S/N>80dB
CMRR: >80 dB
Audio Frequency Response: 50Hz~18KHz±2dB
Antenna: BNC (F)
Antenna Bosster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
Controls: Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
Audio Output Level: Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC)
AF Output Impedance: 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector: Balanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1
Power Supply: DC12~15V/500mA
Dimension (m / m): 212.3mm(W)*38.3mm(H)* 144mm(D)

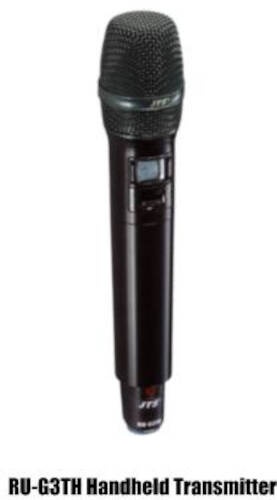

Notes: Actual product specifications may vary depending on region.RU-G3TH
Frequency Preparation PLL: Synthesized Control
Carrier Frequency Range: UHF 470~960 MHz
Frequency Setting; Remoset U Ultrasonic
RF Outputs Low/High
Stability; ±10KHz@ Fc
Frequency Deviation ±48KHz
Spurious Emissions: -50dBc
Display: LCD+LED
Controls: Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
Battery: UM3, AA x2
Slot-in Charging: Yes
Dimensions: 50(W) x 253(H) x 35.5(D)
Notes: Actual product specifications may vary depending on model and region.
