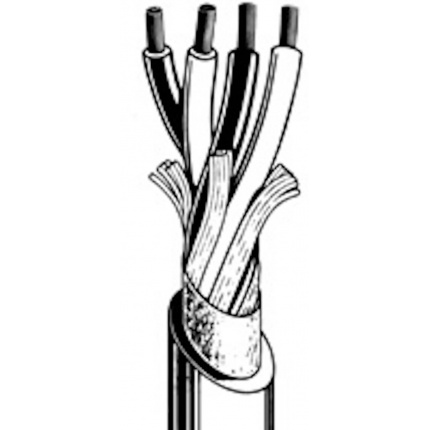

A lighter gauge, very flexible speaker cable, using 4 x 20 AWG insulated conductors. Good choice for high frequency components, short cable runs or DC line cords.
- PA Systems.
- Hi-Fi Speakers.
- DC Power Lines.
- Super Flexibility, even in Sub-Zero Weather.
- Star Quad Design Reduces EMI Noise.
- Low Capacitance and Resistance.
If you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
-
Std. Lng. ft. (m)
328 (100)Wt Std. Lng. lbs (kgs)
24 (11)Nom. O.D. in. (mm)
.252 (6.4)PVC Jacket Nom. Thick. in. (mm)
.032 (0.8)Brittle Point F° (C°)
-56 (-49)No. of Cond.
4
RED
CLR RED
WHITE
CLR WHITEInsul. Type Thick mil
PE 19.7Cond-AWG (Qty./mil) Cross Sec. Area mil. Twin Cond. AWG
AC - #20
(20/7.09)
791
#17Pitch of Quad in. (mm)
1.78 (45)Shield Coverage
-Cond. D.C.R. ohm/1000ft (ohm/100m)
11.4 (3.7)Shield D.C.R. ohm/1000ft (ohm/100m)
-Nom. Cap. pF/m
125Nom. Cap. † pF/m
-Nom. Imp. ohm
-Nom. Atten. V/1000ft (V/100m)
-Group Delay Time nS/ft (nS/m)
-
