Our most popular 4 x 16 AWG flexible speaker cable. Perfect choice for all broad spectrum speaker systems and general purpose power amp setups. Good on Bi-Amped applications.
- PA Systems.
- Hi-Fi Speakers.
- DC Power Lines.
- Super Flexibility, even in Sub-Zero Weather.

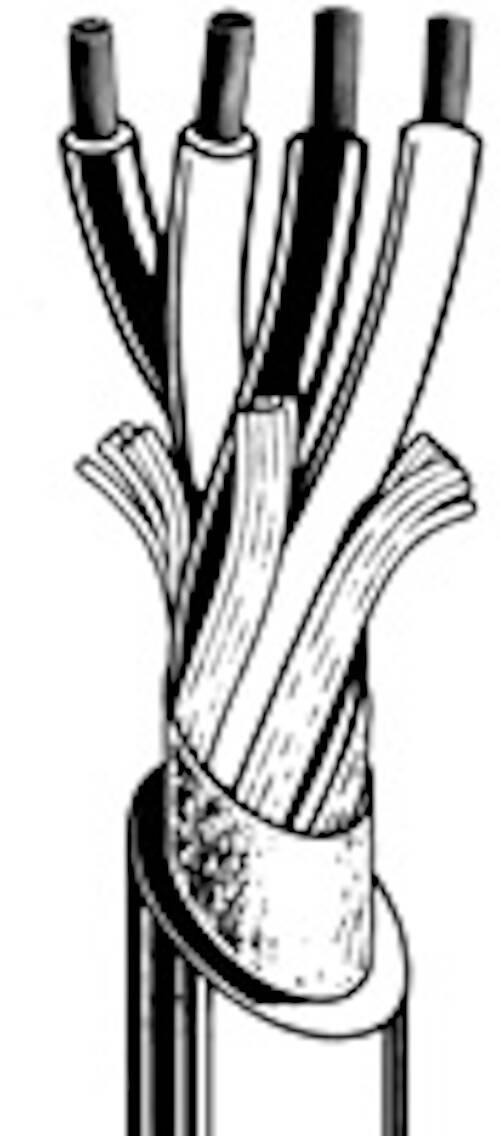

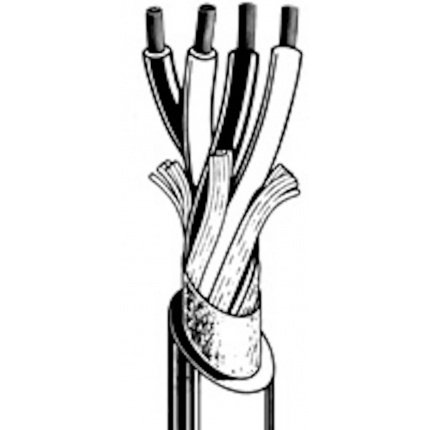

- Star Quad Design Reduces EMI Noise.
- Low Capacitance and Resistance.
If you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
-
Std. Lng. ft. (m)
328 (100)Wt Std. Lng. lbs (kgs)
42 (19)Nom. O.D. in. (mm)
.327 (8.3)PVC Jacket Nom. Thick. in. (mm)
.043 (1.1)Brittle Point F° (C°)
-56 (-49)No. of Cond.
4
RED
CLR RED
WHITE
CLR WHITEInsul. Type Thick mil
PE 19.7Cond-AWG (Qty./mil) Cross Sec. Area mil. Twin Cond. AWG
AC - #16
(50/7.09)
1969
#13Pitch of Quad in. (mm)
2.76 (70)Shield Coverage
-Cond. D.C.R. ohm/1000ft (ohm/100m)
4.5 (1.5)Shield D.C.R. ohm/1000ft (ohm/100m)
-Nom. Cap. pF/m
145Nom. Cap. † pF/m
-Nom. Imp. ohm
-Nom. Atten. V/1000ft (V/100m)
-Group Delay Time nS/ft (nS/m)
-
