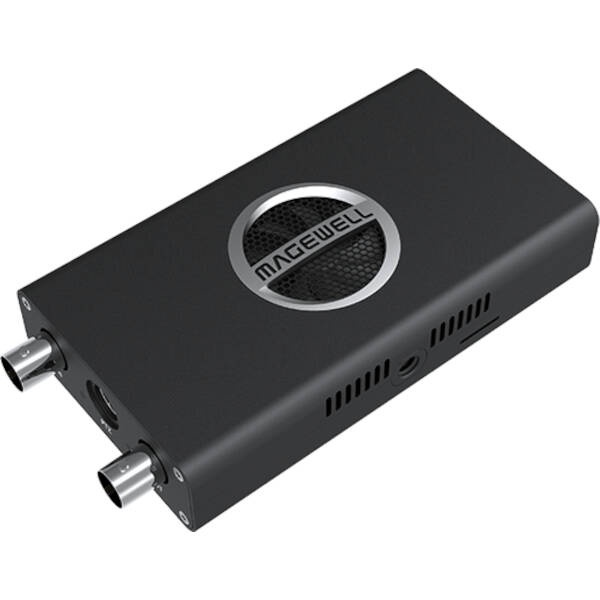

Magewell Pro Convert 12G SDI 4K Plus Convert 4K SDI Video to NDI Stream

The Magewell Pro Convert 12G SDI 4K Plus connects existing source equipment into NDI-enabled, IP-based media networks, supports inputs up to 4K at 60fps with 16 channels of embedded audio
Plug-and-play ease of use with automatic input format detection and DHCP network configuration
Input Features
Single-link 12G-SDI input and loop-through
Support for up to 4096x2160 60fps input
Support for up to 16 (mono) audio channels
NDI® Format
Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
Send NDI streams across network segments
Remotely control PTZ cameras via NDI
Support for NDI 4.x
Features & Advantages
Very low latency
Advanced configuration and device status through intuitive Web GUI
Tally lights and camera mounting for live production applications
HTTP-based APIs for custom integration
IN THE BOX
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket
Mini-DIN 8 breakout cable
Tally light
Limited 1-Year Warranty

Specifications

SDI Input
Max Video input: 4096x2160 60fps. Supported resolutions include:
4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
1280x720p at 50/59.94/60fps
720x576 at 25p/50i (PAL SD)
720x480 at 29.97p/59.94i (NTSC SD)
Support for RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Max Audio inputs: 16 embedded channels
NDI® Output
Max output: 4096x2160 60fps 4:2:2 8-bit
Output frame rate same as the original, 1/2, 1/3 or 1/4 input frame rate
Output resolution at the resolution of input, typical formats or any custom resolution. Typical output:
4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
NDI® 4.1
SDI Processing Features
Input/loop-through interfaces: SD/HD/3G/6G/12G SDI
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
Receive SDI transmitted up to the following distances:
Signal Distance
HD-SDI 280m 919ft
3G-SDI 180m 591ft
6G-SDI 80m 262ft
12G-SDI 30m 98ft
Web GUI Management
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how an input is processed and encoded, as well as the network connection.
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browser
Support with HTTP APIs

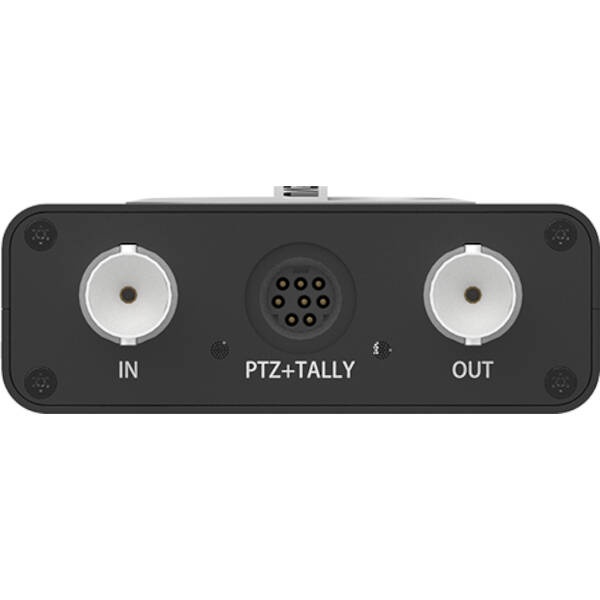

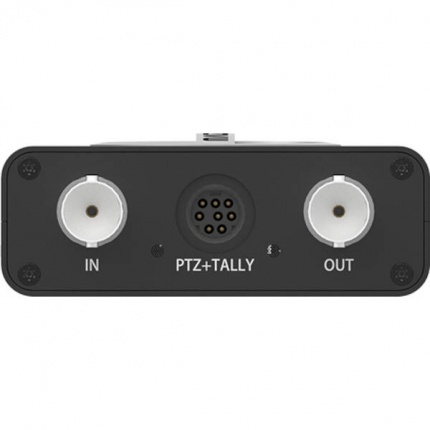

PTZ & Tally Control
Control PTZ cameras that use VISCA UDP, VISCA, PELCO-D or PELCO-P protocols
Program and preview tally
A Mini-DIN 8 breakout cable is provided for PTZ control and tally connection

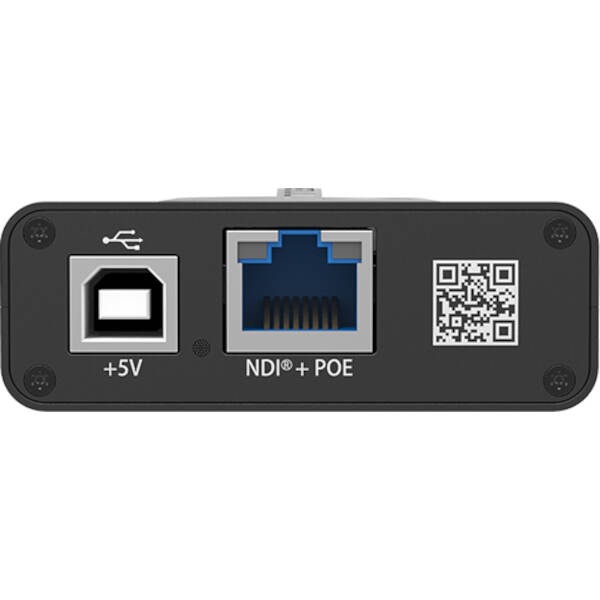

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface
USB2.0 Type B
5V/2.1A power supply
Supported Products
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product

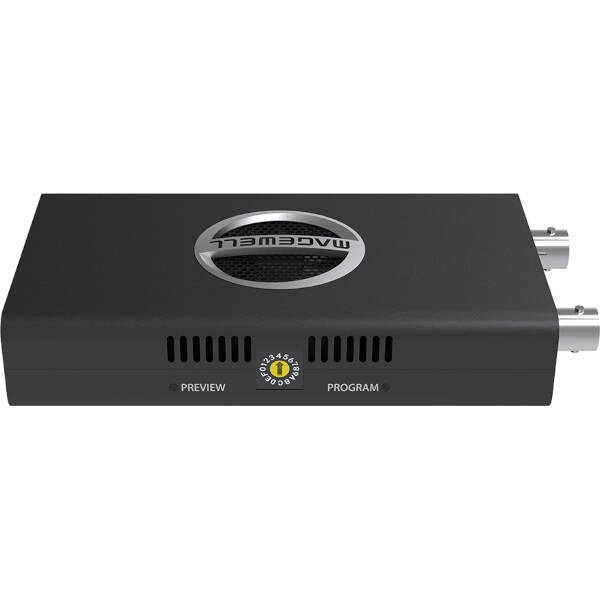

LED Indicators
Status LEDs indicate the working state of the device
Power supply: on/off
Tally: preview/program
Input port: input signal locked/unlocked
Output port: loopthrough signal on/off
Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-bracket
Mini-DIN 8 breakout cable
Tally light
Screw Mounting Hole
¼–20 mounting hole
Power Consumption
5V max current: ~1.65A
Max power consumption: ~8.5W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
