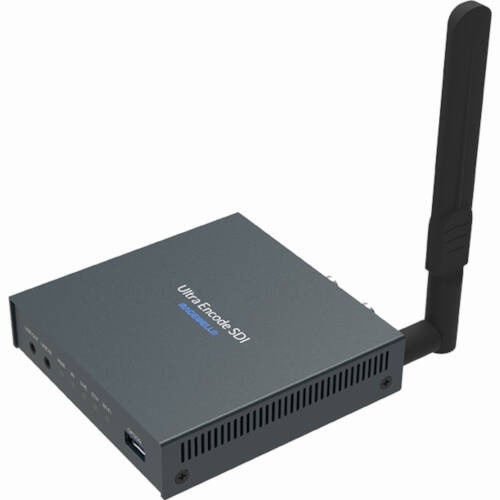

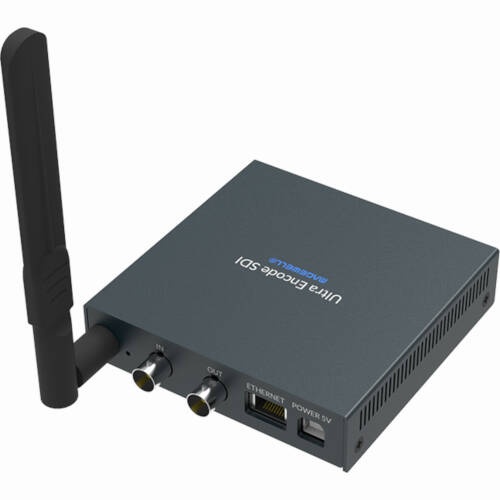

Encode your video stream over wired or hardwired connections The Magewell Ultra Encode SDI facilitates live H.264/H.265 streaming and supports streaming protocols including SRT, NDI|HX, HLS & more
Input Features
- Support for up to 2048x1080 60fps input and loopthrough signals
- Input & loopthrough 16-Channel SDI embedded audio
- Input audio from 3.5 mm LINE IN
Encoding Features
- Dual stream encoding: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
- Support for H.264/HEVC video encoding
- Encoding 2-channel AAC at 48kHz, 16-bit
Streaming Features
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
- Allow streaming to multiple destinations simultaneously (select protocols)
Others
- Internet connectivity via wired Ethernet and wireless network
- Control via intuitive Web GUI or HTTP APIs
Our Ultra Encode family of universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. Available in HDMI and SDI models, Ultra Encode supports high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity.
Live Streaming
Ultra Encode supports live streaming in protocols including RTMP, RTMPS, HLS and more at bitrates up to 16Mbps, with configurable presets for easy streaming to Facebook, Twitch and YouTube. Some protocols can be streamed to multiple destinations simultaneously, with separate encoding parameters for each stream.Production, Contribution & Monitoring
In addition to mainstream streaming protocols, Ultra Encode supports NewTek’s NDI®|HX technology for IP production workflows and the Secure Reliable Transport (SRT) protocol (developed and open-sourced by Haivision) for robust delivery of H.264/H.265 streams over unpredictable networks such as the Internet. The encoder can be camera-mounted for easy remote contribution, while bandwidth-efficient NDI®|HX streams can be sent over wireless networks to multiple receivers, simplifying on-site production and monitoring workflows.AV over IP
Ultra Encode can be combined with our Pro Convert decoders to form flexible AV over IP infrastructures leveraging NDI®|HX technology. The devices can be configured and controlled through an intuitive Web GUI or HTTP-based APIs, providing systems integrators with exceptional deployment and integration flexibility.In the Box
Power Adapter (US/EU/UK/AU/JP)x1
Power Cable x1
Wi-Fi Antenna x1
T-bracket x1Input Features
Max input & loop-through signal: 2048x1080 60fps
Supported inputs include:
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
8/10/12-bit color
Input & loopthrough 16-Channel SDI embedded audio
Input Audio from 3.5 mm LINE IN
SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
Encoding Features
Dual stream encoding: main stream and sub stream
Max bitrates:
Main Stream - 16Mbps
Sub Stream - 2Mbps
Supported resolutions:
HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC audio at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from input signal and output through LINE OUT
Streaming Features
Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
Up to 6 sessions of TS over RTP and TS over UDP simultaneously
Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most
Up to 6 sessions of RTMP and RTMPS simultaneously
Stream only 1 session of HLS (push), RTSP, or NDI|HX2
Total bitrates for different network connection types:
24Mbps for all streams is recommended for a wired network connection
16Mbps for all streams is recommended for a wireless network connection
Specify streaming main stream or sub stream for each session
Web UI Management
Provide comprehensive information regarding the system information of device and working status in real-time
Video thumbnail preview
Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
Update firmware
Export configuration profiles of the device
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs
Network Interfaces
Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)

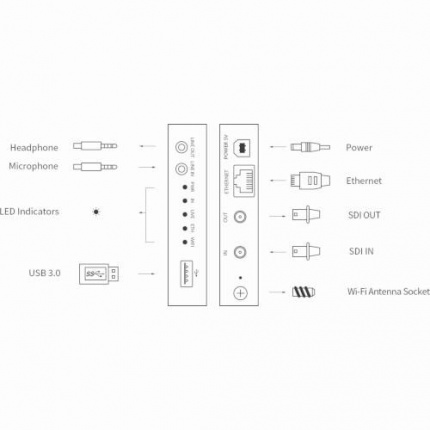

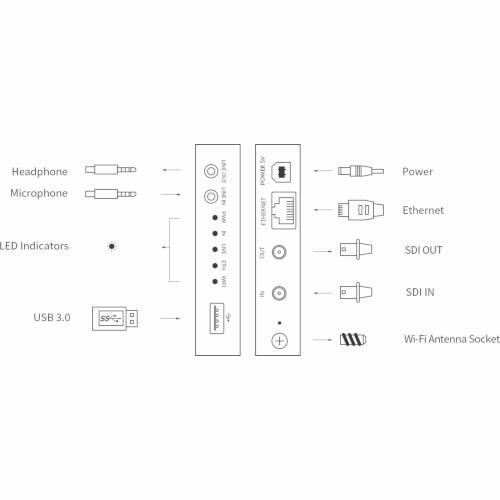

Input/Output Interfaces
SD/HD/3G BNC input and loop-through interfaces
3.5mm LINE IN
3.5mm LINE OUT

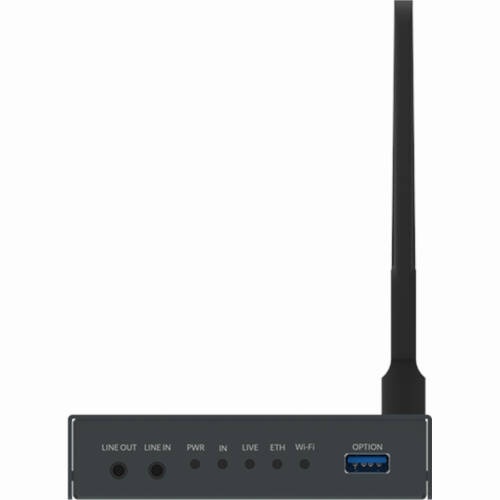

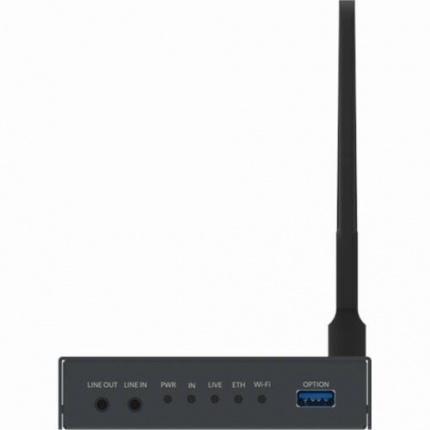

LED Indicators
LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption
DC 5V/2A
Max power consumption: ~7.6 W
Form Factor
106.6mm x 106.2mm x 25mm
Accessories
AC adapter
Wi-Fi antenna
USB 2.0 Type B cable
T-bracket
Screw Mounting Hole
2 x M3 threaded hole
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
