Datavideo VP-840 4K 1x4 HDMI Distribution Amplifier

Datavideo VP-840 is a 1×4 HDMI Distribution Amplifier featuring the capability to repeat HDMI source to 4 displays simultaneously, VP-840 supports data rates up to 18Gpbs and resolutions of 4K2K@60Hz.
The VP-840 features EDID (Extended Display Identification Data) management providing multiple EDID options for various resolutions between all devices, ensuring the HDMI source reliably outputs the correct content for the display.

Features:
1×4 4K HDMI Distribution Amplifier
Supports 4K2K@60 4:4:4 8bits
Supports High Dynamic Range, which is 4K2K@60 4:2:0 10bits
Video bandwidth: 18 Gbps
Wide frequency range: 25MHz~600MHz
HDMI 2.0a compliant, HDCP 2.2 and 1.4 compliant
Supports Deep Color & 3D
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Supports default EDID and EDID learning from display

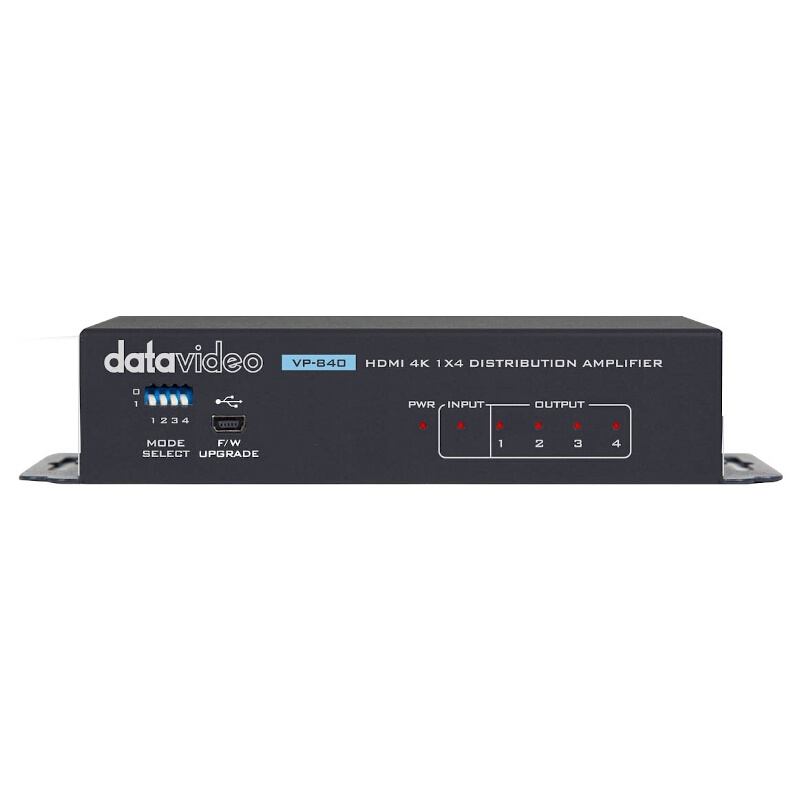

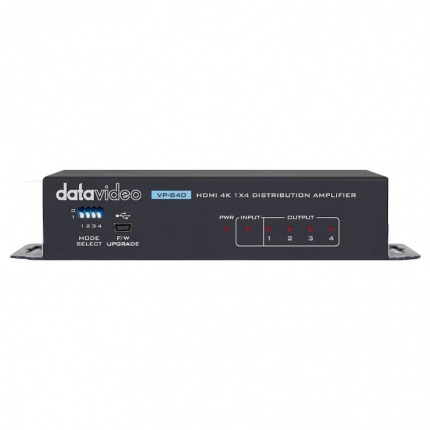

Front panel LED indicators

In The Box:
1 x VP-840 product
1 x AD Switch DC 12V

Specifications

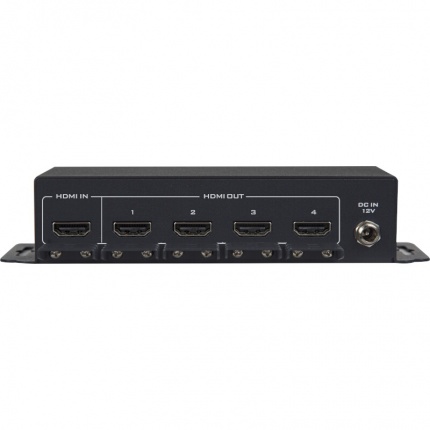

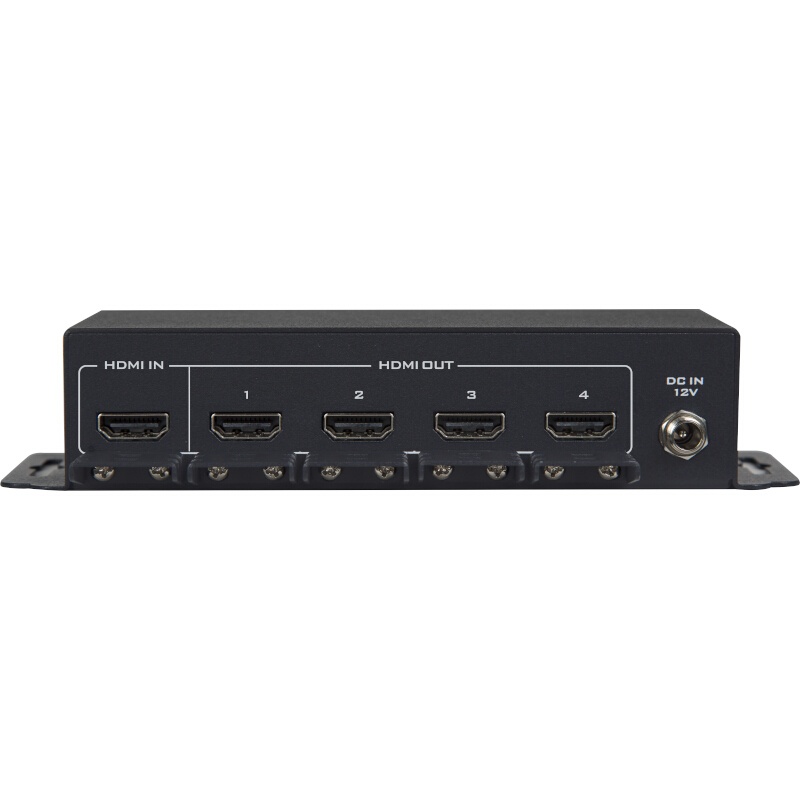

Video Input/Output
Input: 1 x HDMI
Output: 4 x HDMI

Video Format
HDMI Supported Resolutions
4096x2160p60/59.94/50
4096x2160p30/29.97/25/24/23.98
3840x2160p60/59.94/50
3840x2160p30/29.97/25/24/23.98
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50, , 720p60/59.94/50
480p, 576p, 480i, 576i

PC Supported Resolutions
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, , 1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@ 60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1680x1200@60Hz, 1920x1080@60H

Video Processing
HDR 4K2K@60 4:2:0 10bits
4K2K 60Hz YCbCr4:4:4 8bit/YCbCr4:2:0 10bit
4K2K 30Hz YCbCr4:4:4 8bit

Video bandwidth
Single-link 600MHz (18Gbps)

Audio Format
DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM

Power
12V / 6W

Dimension (LxWxH)
174 x 63 x 35 mm

Weight
0.35 kg

Operating Temp. Range
0~40 °C
