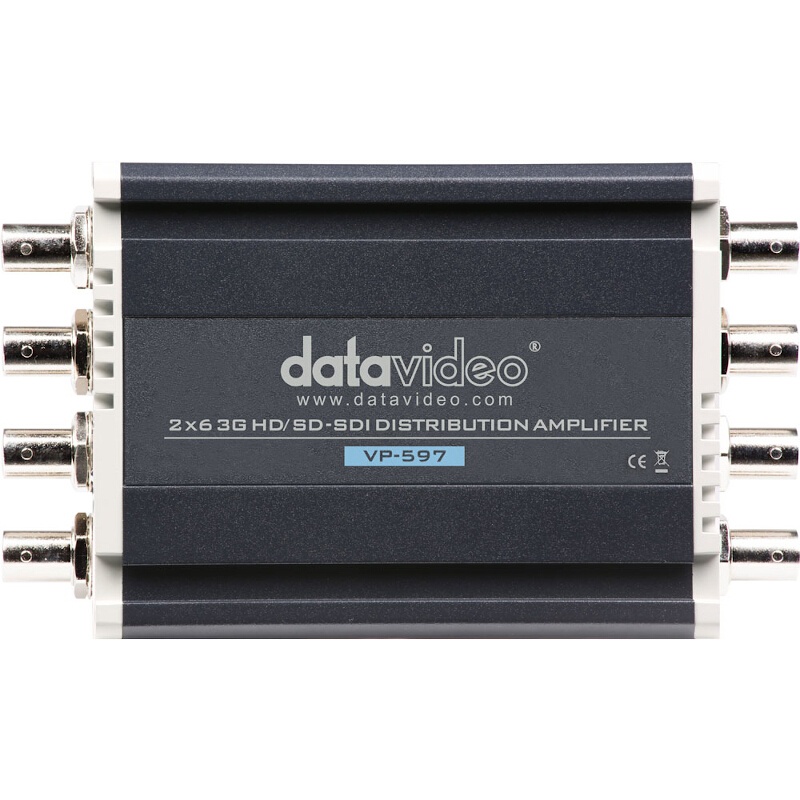

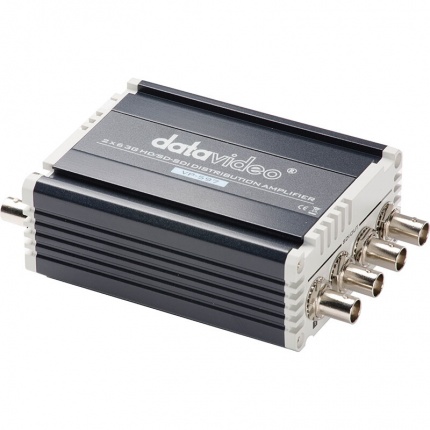

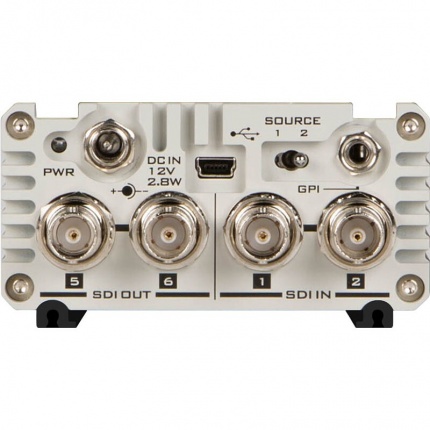

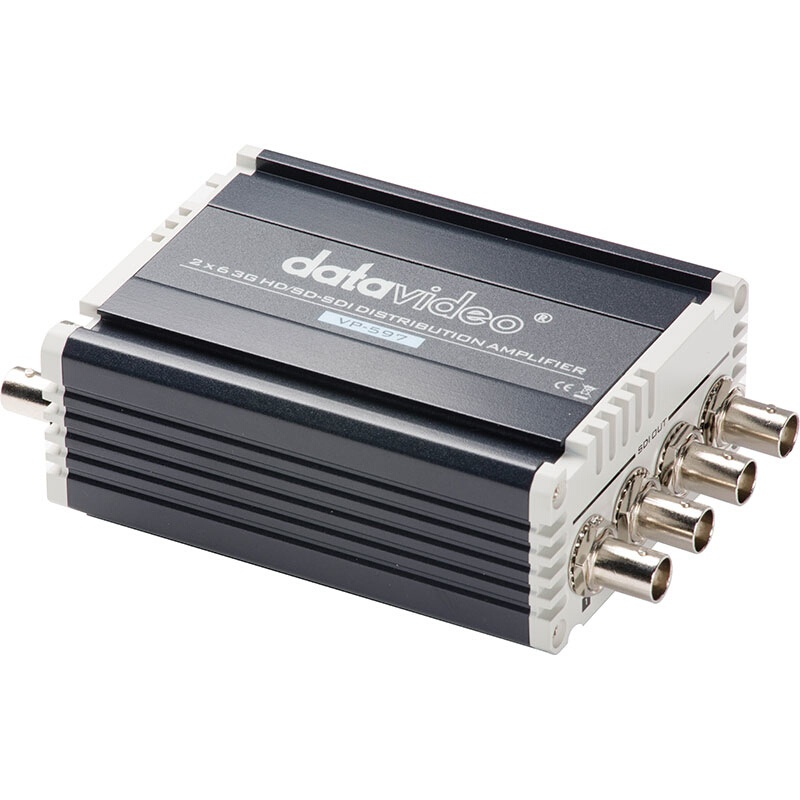

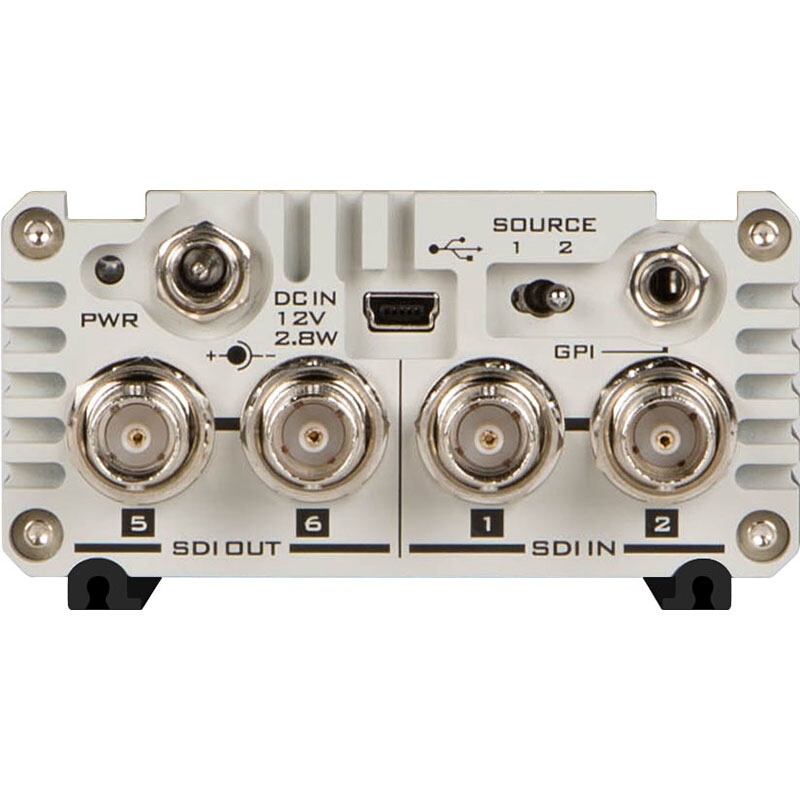

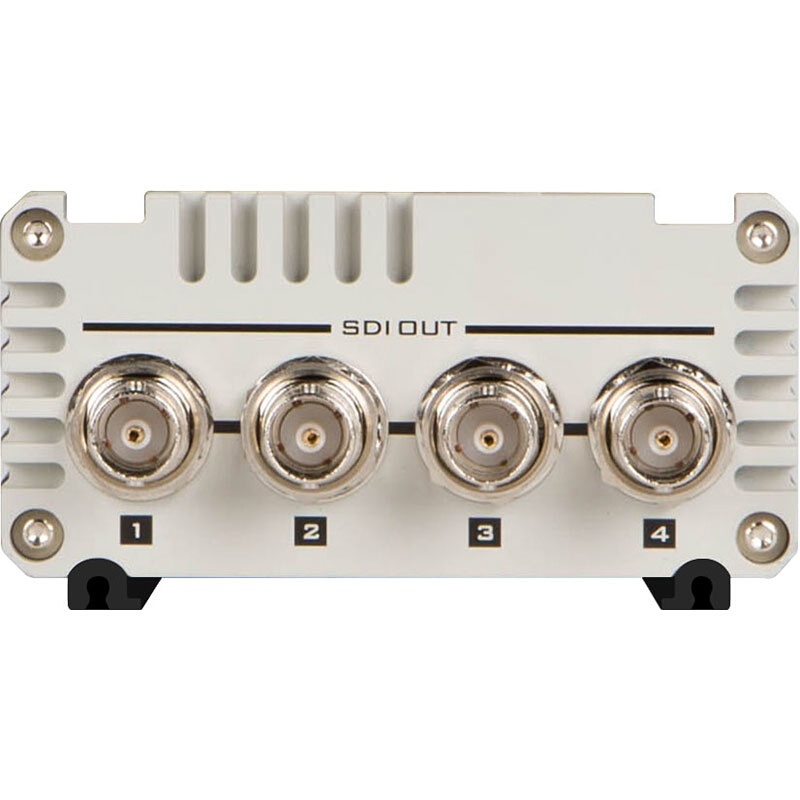

Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control. It supports 3G/HD/SD SDI video with embedded audio and re-clock design for long distance transmission. Two source inputs can be controlled by an A/B panel switch or thru GPI remote control interface. VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.
Features:
2 x 3G/HD/SD-SDI inputs
6 x 3G/HD/SD-SDI distribution outputs with re-clock
Supports embedded audio SDI
Two input video sources can be controlled by A/B switch or GPI remoteIn The Box:
1 x VP-597 product
1 x AD Switch 12V 500mA
1 x 3.5Φ GPI Cable StereoVideo Input/Output
Input: 2 x BNC
Output: 6 x BNCVideo Format
1080p 60/59.94/50/29.97/23.98
1080i 60/59.94/50
720p 60/59.94/50
525i, 625iAudio Format
Support SDI embedded audio
Up to 8 channels, 48KHz, PCM audioPower
12V / 2.8WDimension (LxWxH)
127 x 85 x 45 mmWeight
0.5 kgOperating Temp. Range
0~40 °C
