Featuring bi-directional Bluetooth audio, the interface allows you to transmit two channels of Bluetooth audio onto the Dante network, and simultaneously receive one Dante channel. The paring is as simple as pressing a button on the front panel, and you can give the unit any friendly name you like.

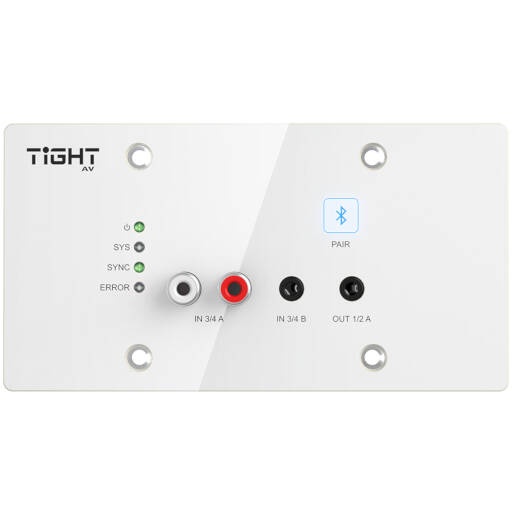

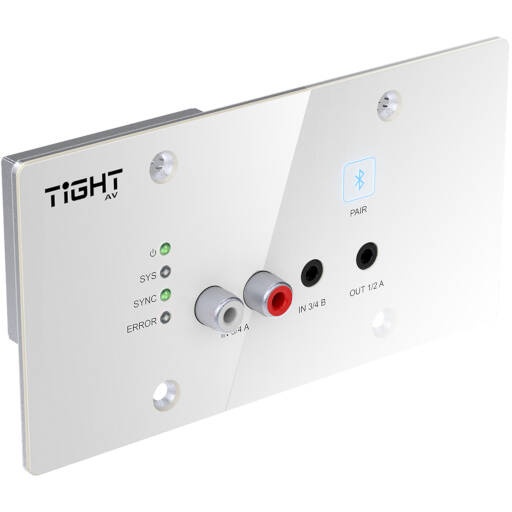

Paring your Bluetooth compatible device is as simple as pressing a button on the front panel. Need more I/O? No problemo. Additional inputs and outputs are available via unbalanced RCA and TRS mini-jack connectors on the front panel. The front panel also features two channels of analog unbalanced inputs via either RCA or 3.5mm TRS, and two channels of analog unbalanced outputs via 3.5mm TRS. On the setup side, audio routing and control is maintained via Dante Controller and Domain Manager. A web UI handles the configuration of the device itself, with an open API for third-party control. The AU-BT413WP-DA is perfect for simple BYOD, or you could use the call bridging feature for conference calls utilizing the existing audio equipment in the room.
Features:
• Supports Bluetooth audio transmission to Dante/AES67 network.
• Bluetooth 5.0 enabled.
• Customizable Bluetooth friendly name.
• Supports call & media bridging.
• Features additional two-channel analog input and two-channel analog output.
• Powered by network switch via PoE(802.3af).
• Web UI for device configuration.
• Compatible with most smartphones, Apple iPads and Android tablets.
• Controllable by Dante Controller or Dante Domain Manager software.
• Open API for third party control.
• Fits EU 2 gang wall boxes
In the Box
1x AU-BT413WP-DA
4x White screw cover plates
1x User ManualInput
Inputs: Stereo Bluetooth 5.0 audio receiver, L+R stereo unbalanced audio on RCA, Stereo unbalanced audio on 3.5mm TRS
Bluetooth Range: Recommended max 15m (depending on source Bluetooth device and installation environment)
Output
Outputs: One channel Bluetooth 5.0 audio transmitter, Two unbalanced line level outputs on 3.5mm TRS
Audio Performance
Gain:
- Input: -12 ~ +18dB, 6dB per step
- Output: -60 ~ 0dB, 1dB per step
Frequency Response: 20Hz - 20KHz (±0.5dB)
Max Input Level: +12dBu @ 0dB input gain, Output: +18dBu @ 0dB output gain
Max Output Level: +12dBu @ 0dB input gain
Output Noise: -79dBu @ 0dB gain
THD: 0.05% at 0dBu,1kHz, 0dB gain
Dante
Bit Depth: 24
Sample Rate: 44.1kHz or 48kHz
Latency: 1,2 or 5ms (configurable using Dante Controller)
Network Transport: Dante Audio over IP, AES67 RTP
Control
Control: (1) Dante Network (1) Pair button
Control Connector: (1) RJ45 (1) Bluetooth button
General
Model Name: AU-BT413WP-DA-WH
Power: 802.3af PoE
Operation Temperature: -10℃ ~ +55℃
Storage Temperature: -25℃ ~ +70℃
Relative Humility: 10%-90%
Power Consumption: 4.22W (Max)
Dimension (WxHxD): 151mm x 80mm x 42mm
Net Weight: 195g
Shipping Dimension (LxWxH): 178mm x 108mm x 55mm
Shipping Weight: 300g
Compliance Environmental RoHs, WEEE: FCC, CE
Environmental: RoHs, WEEE
