Datavideo TLM-170LM 17.3" 3G-SDI Full HD Rackmount LCD Monitor

The 17.3" 3G-SDI Full HD Rackmount LCD Monitor from Datavideo is suitable for applications in a live production gallery, 19" rack monitoring, OB Van, or a video editing suite. It comes with a 3G-SDI video input with loop-through output and two HDMI inputs. The monitor supports embedded audio on SDI and HDMI (version 1.3).

The monitor offers viewing angles of 70°/70°/60°/60° (left, right, top, and bottom) and brightness rating of 300 cd/m². This unit has a native resolution of 1920 x 1080. The contrast ratio of 400:1 showcases the monitor's ability to handle light and dark images on-screen.

Features:

Full HD (1920 x 1080p) LCD panel with Underscan and Overscan menu options
Designed to rackmount

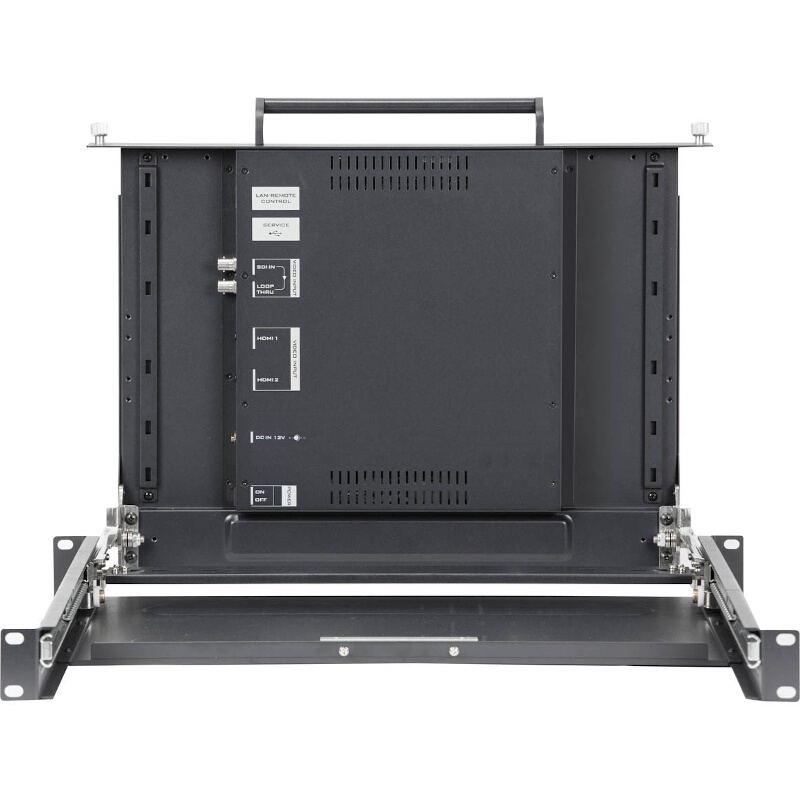

3G-SDI video input with loop-through output and two HDMI inputs
Supports embedded audio on SDI and HDMI (Ver. 1.3)
Front panel has a 3.5mm stereo headphone jack socket for discrete audio monitoring

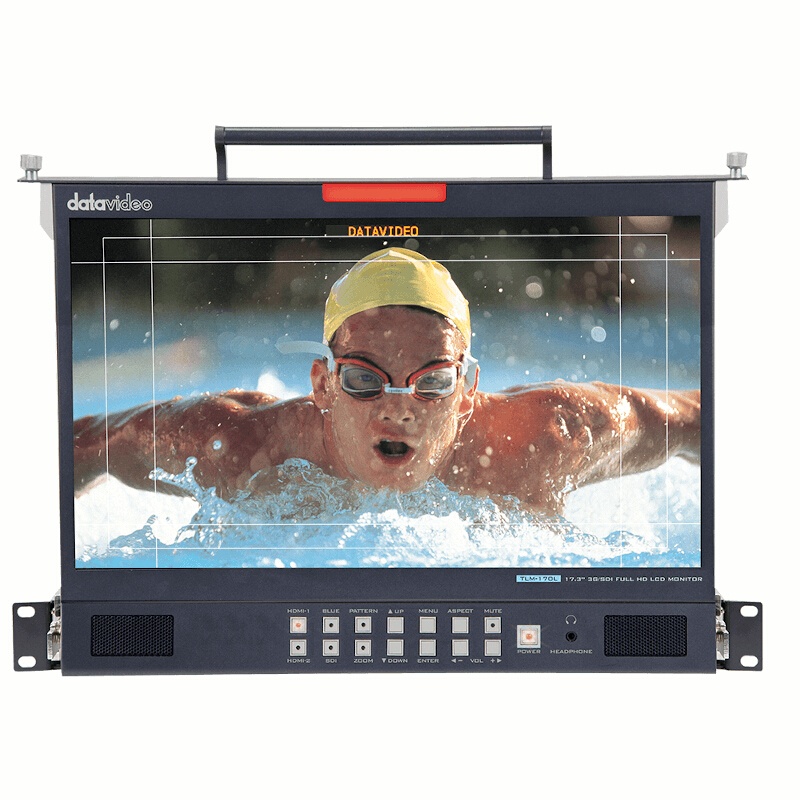

Front panel buttons allow quick and easy selection of source input as well as aspect ratio, blue only mode, pattern (Color Bars), menu, and audio controls
Color temperature menu option has 3 modes (6500K, 9300K, 7500K, and user defined)
OSD audio level peak meter for SDI and HDMI based digital audio inputs
Individual adjustment of brightness, contrast, color saturation, and LED backlight level for each monitor
On-screen overlays for frame marker 80%, 90%, 4:3 marker, Central Mark, and Cinema Zone Marker
Bi-color tally light and 3.5mm jack tally input socket
USB 2.0 port for easy update of firmware with a USB 2.0 pen drive

In The Box:

1 x TLM-170LM prodcut
1 x AD Switch DC 12V
4 x Screws M4 x 6mm
8 x Screws M3 x 6mm
8 x Screws M5 x 10mm
5 x Cable tie
