Datavideo TLM-170VM 17

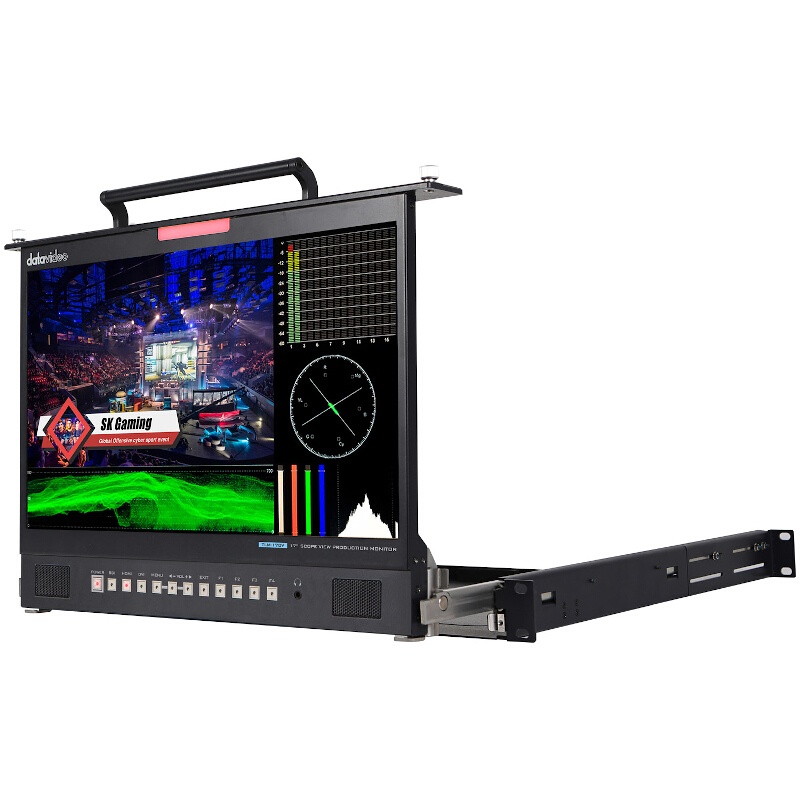

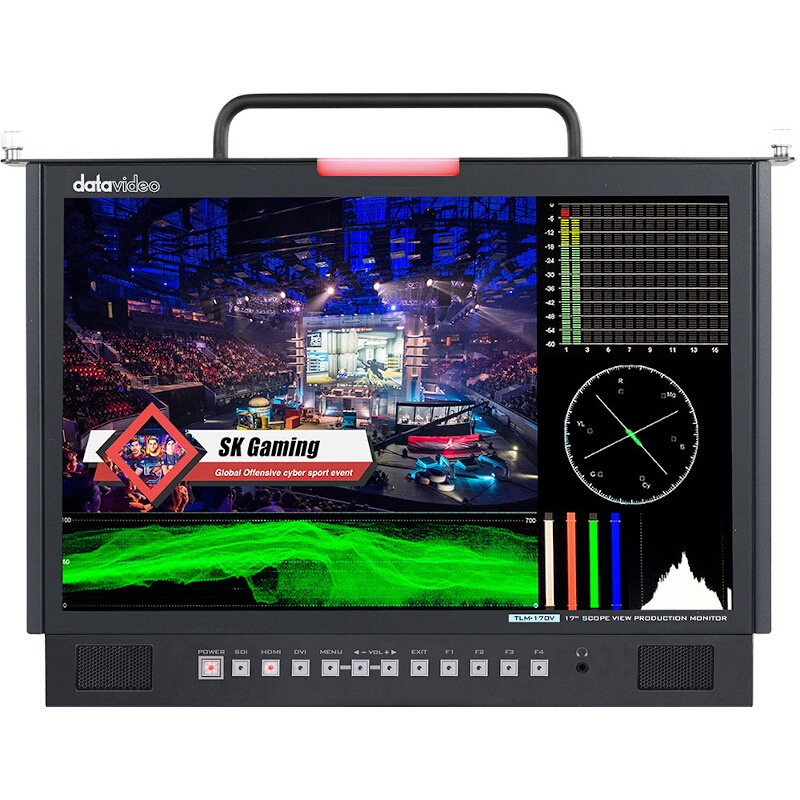

Datavideo's TLM-170VM is the pull out version of their 17" ScopeView Production Monitor. Designed for use with a 1U Mobile Tray Rack Mount, this 17" ScopeView Production Monitor is a welcome addition to your mobile video productions with its 1920x1080 full HD resolution and 170° wide viewing angle.
The TLM-170VM includes various built-in functions such as waveform, vector scope and SDI/HDMI cross converter, and because of its portability, the TLM-170V can be flexibly installed in a OB Van, satellite truck and central control room.

Features:
Main applied in the Mobile system
1920x1080P Panel resolution
Support 3G-SDI video input with loop-through output
Support two HDMI inputs
1 Unit Space
Foldable Rackmount Tray Unit
Individual adjustments of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor
Monitor Underscan and Overscan mode selection
Color temperature for user to select
Front panel Headphone Jacks
Bi-colour Tally light and 3.5mm Jack Tally input socket
Safe area
Blue Only
Support embedded audio on SDI & HDMI (ver1.3)
Zoom (HD only)
USB for FW upgrade

In The Box:
1x TLM-170VM 17.3-Inch ScopeView Production Monitor

Specifications

Screen
17.3" LED Backlit

Chassis
1RU Pull-Out

Resolution
1920x1080

Viewing Angle
(H) +89/-89°
(V) +89/-89°

Luminance/Contrast
300cd/m²
700:1

Video Inputs
1x 3G/HD/SD-SDI
2x HDMI

Loop Through
1x 3G/HD/SD-SDI
1x HDMI

Supported Input Resolutions
1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)

Aspect Ratio
16:9, 4:3

Tally LED
Live (Red)
Cued (Green)

Audio In/Out
2x Speaker
1x Headphone Jack

Special Features
SDI and HDMI cross conversion,
Support column (YRGB peak),
time code, waveform,
vector scope & audio level meter,
peaking focus assist,
zoom, pix to pix,
underscan, check field

Dimension (LxWxH)
403 x 305 x 41 mm

Weight
4.5 kg

Operating Temp. Range
0~40 °C

Power
DC 10-18V, 32W
