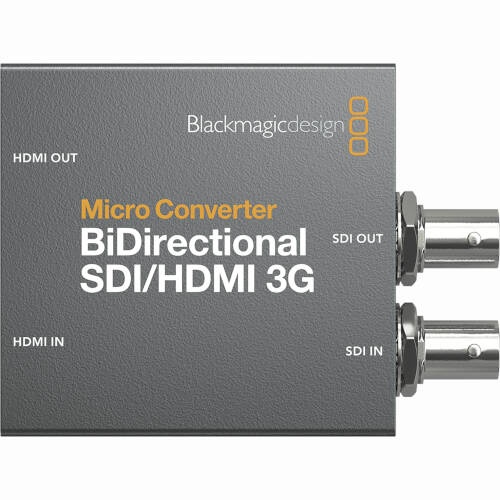

Blackmagic Design Micro Converter Bidirectional SDI/HDMI 3G 1 x SD/HD/3G-SDI & 1x HDMI Input/Output

Easily combine SDI and HDMI components in your video setup with the Micro Converter Bidirectional SDI/HDMI 3G from Blackmagic Design. This compact bidirectional converter can simultaneously convert SDI to HDMI and vice versa, even when using different standards, and it supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher. The Micro Converter Bidirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.
This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the Bidirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Specifications

Connections
SDI Video Inputs
1 x SD, HD or 3G-SDI.

SDI Video Outputs
Automatically matches the HDMI video input.

HDMI Video Inputs
HDMI Type A in.

HDMI Outputs
HDMI Type A out.

Multi Rate Support
Auto detection of SD or HD.

Updates, Configurations and Power
USB Type‑C.

Reclocking
Yes

Micro Converter BiDirectional SDI/HDMI 3G
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M

SDI Video Rates
SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.

SDI Color Precision
4:2:2

SDI Color Space
YUV

SDI Auto Switching
Automatically detects SD, HD and 3G-SDI

HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Precision
4:2:2

HDMI Color Space
YUV

Copy Protection
HDMI input is unable to capture from copy protected HDMI sources.
Always confirm copyright ownership before capture or distribution of content.

Camera Control
Bidirectional signal conversion supports Blackmagic Camera Control and Tally.

Software Control
Mac and Windows™ software via USB.

Internal Software Upgrade
Via USB.

Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows 10.

Settings Control
Via software utility.

Power Requirements
Power Consumption
2.5 W

Operational Voltage Range
4.4 to 5.25V DC

Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)

Storage temperature
-20° to 60° C (-4° to 140° F)

Relative Humidity
0% to 90% non-condensing

What's Included
Micro Converter BiDirectional SDI/HDMI 3G

Warranty
3 Year Limited Manufacturer's Warranty.
